| B3F-1026 | ||
|---|---|---|
|
|
||
|
||

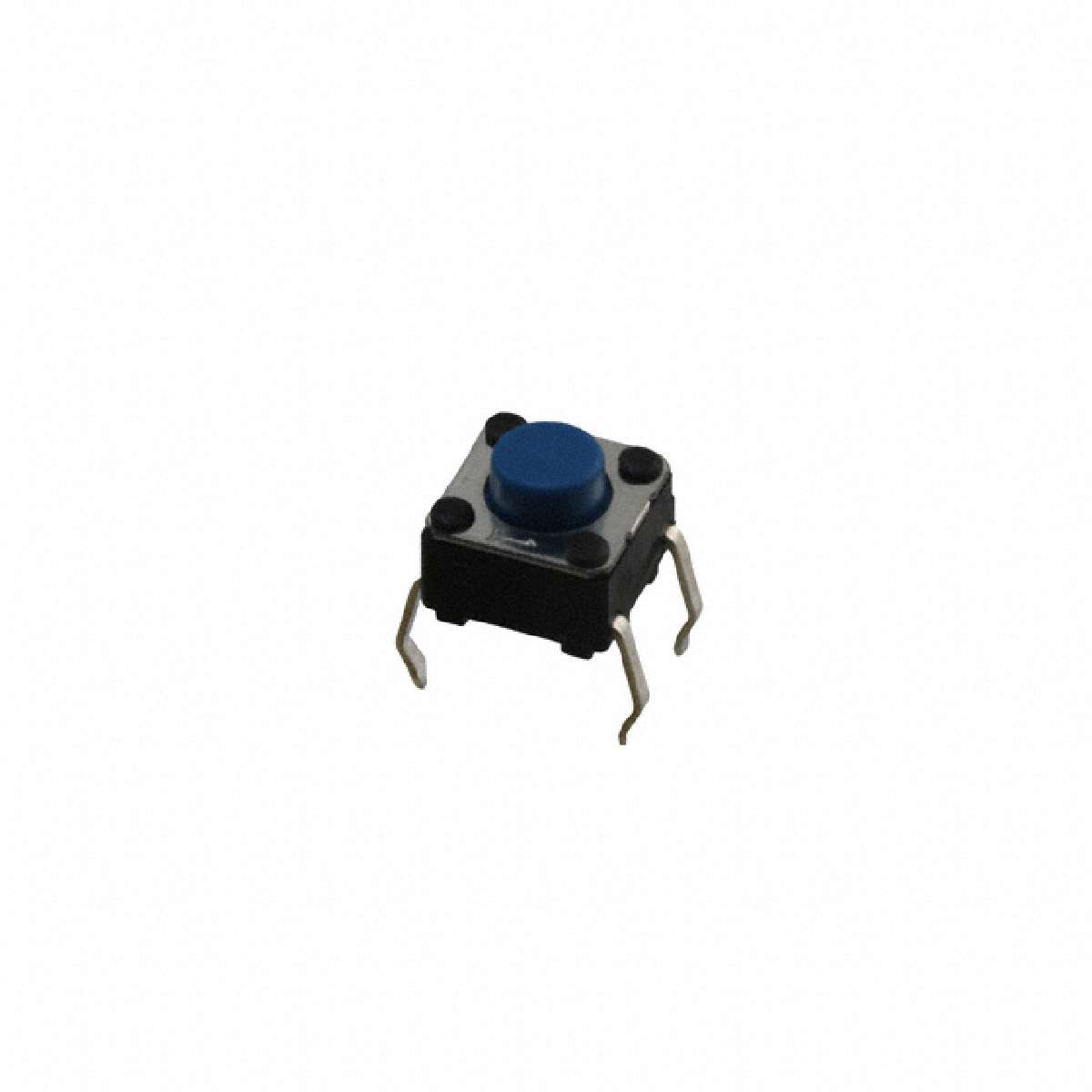

| Product description : Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 4.9N | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Actuator Type | Standard |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Termination Style | PC Pin |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Illumination | Non-Illuminated |
| Series | B3F |
| Mechanical Life | 50,000 Cycles |
| Outline | 6.00mm x 6.00mm |
| Operating Temperature | -25°C ~ 70°C |
| Circuit | SPST-NO |
| Actuator Orientation | Top Actuated |
| Actuator Height off PCB, from Pins | 5.00mm |
| Part Status | Active |
| Category | Switches |
| Switch Travel | 0.25mm |
| Operating Force | 500gf |
| Family | Tactile Switches |
| Mounting Type | Through Hole |
| Packaging | Bulk |
