| B32923D3334K | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

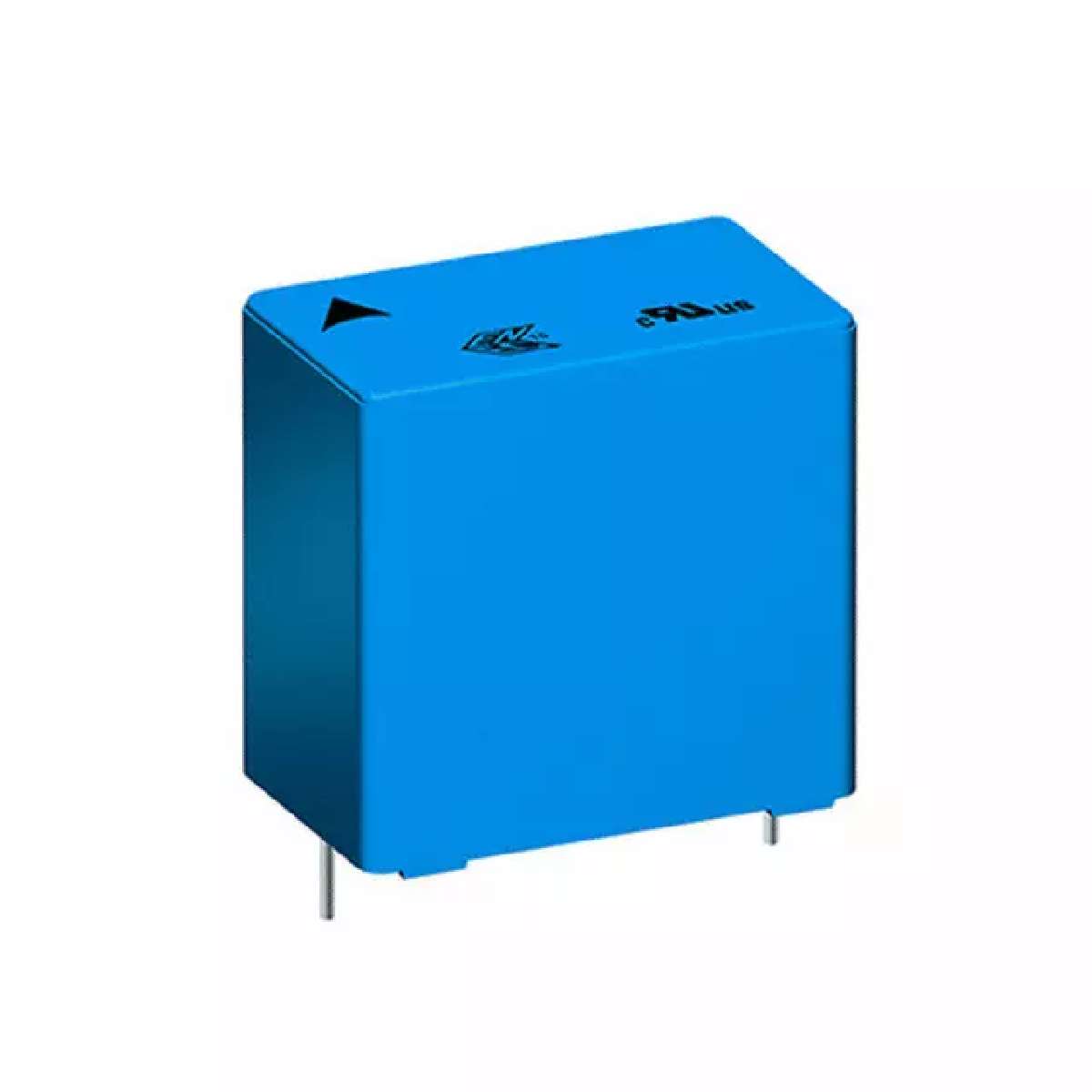

B32923 Series 305 V 0.33 uF ±10% LS=22.5 mm X2 Suppression PP Film Capacitor
|
||
| 标准包装：630 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial |
|---|---|
| Termination | PC Pins |
| Capacitance | 0.33µF |
| Dielectric Material | Polypropylene (PP) |
| Size / Dimension | 1.043" L x 0.276" W (26.50mm x 7.00mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±10% |
| Lead Spacing | 0.886" (22.50mm) |
| Voltage Rating - AC | 305V |
| Features | X2 Safety Rated |
| Part Status | Active |
| Manufacturer | EPCOS (TDK) |
| Series | Automotive, AEC-Q200, B32923 |
| Applications | EMI, RFI Suppression |
| Operating Temperature | -40°C ~ 110°C |
| ECCN | EAR99 |
