| B32620A4223J289 | ||
|---|---|---|
|
|
||
|
||

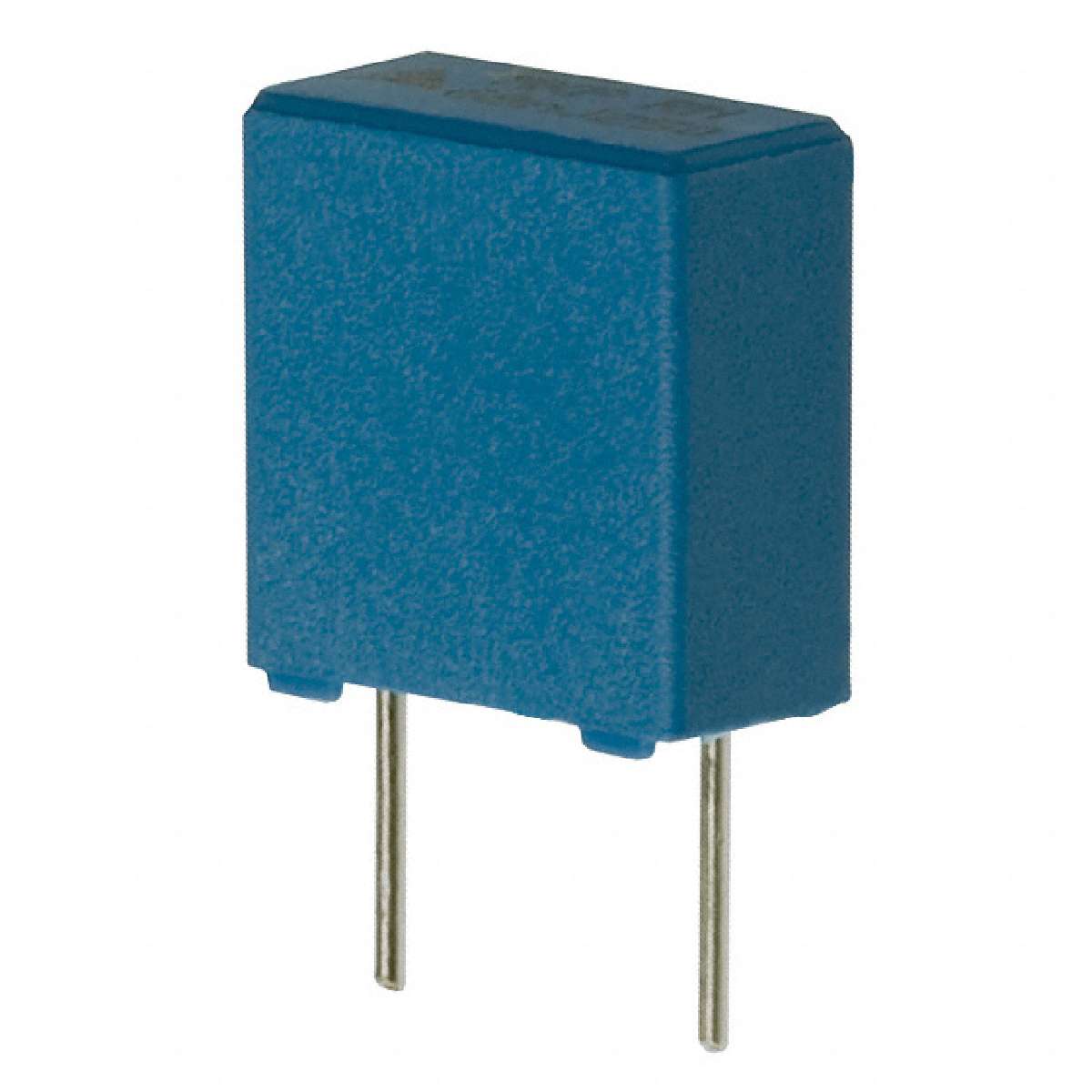

| Product description : B32620 Series 400 V 22 nF ±5 % LS=7.5 mm Stacked Metallized PP Film Capacitor | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | Radial |
|---|---|
| Termination | PC Pins |
| Capacitance | 0.022µF |
| Voltage Rating - DC | 400V |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Tape & Box (TB) |
| Tolerance | ±5% |
| Lead Spacing | 0.295" (7.50mm) |
| Voltage Rating - AC | 200V |
| Dielectric Material | Polypropylene (PP), Metallized - Stacked |
| Part Status | Active |
| Manufacturer | EPCOS (TDK) |
| Series | B32620 |
| Applications | High Pulse, DV/DT |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
