| B12AV | ||
|---|---|---|
|
|
||
|
||

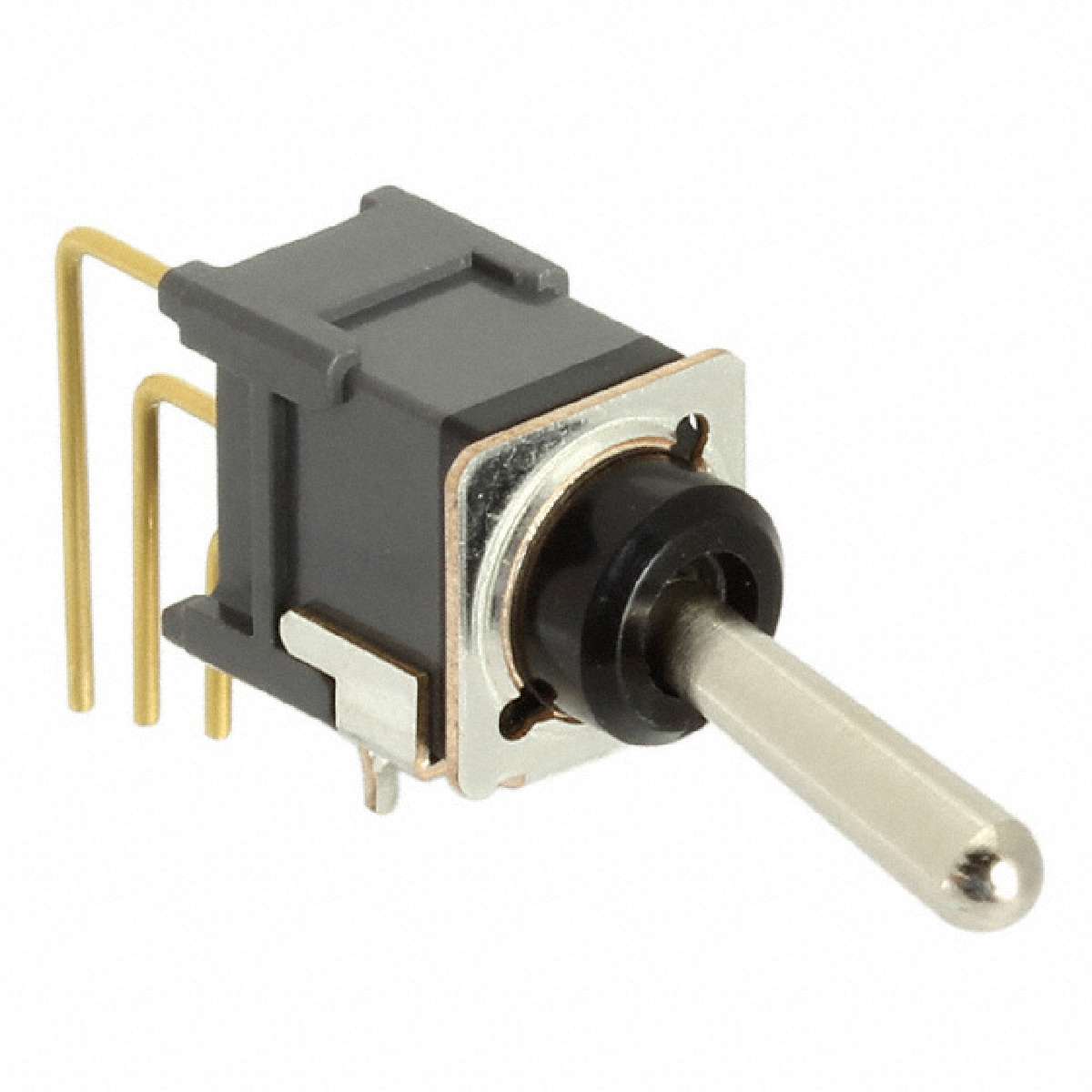

| Product description : B Series SPDT On-None-On Right Angle Through Hole Sub Mini Toggle Switch | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Mounting Angle: | Vertical |
|---|---|
| Housing Material: | Polyamide, Glass Fiber Reinforced |
| Switch Function: | ON - ON |
| Manufacturer: | NKK Switches |
| Series: | B |
| Voltage Rating DC: | 28 VDC |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Solder Pin |
| Product Category: | Toggle Switches |
| Contact Plating: | Nickel |
| Type: | Subminiature antistatic toggles |
| ECCN | EAR99 |
| Power Rating: | 0.4 VA |
| Terminal Seal: | Sealed |
| Actuator: | Bat |
| Voltage Rating AC: | 28 V |
| Operating Temperature Range: | - 30 C to + 85 C |
| Contact Form: | SPDT |
| Part # Aliases: | B-12AV |
| RoHS: | Details |
| Contact Material: | Gold |
| Current Rating: | 100 mA |
| Life: | 50000 Cycles |
| Mounting Style: | Through Hole |
