| AYZ0103AGRLC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

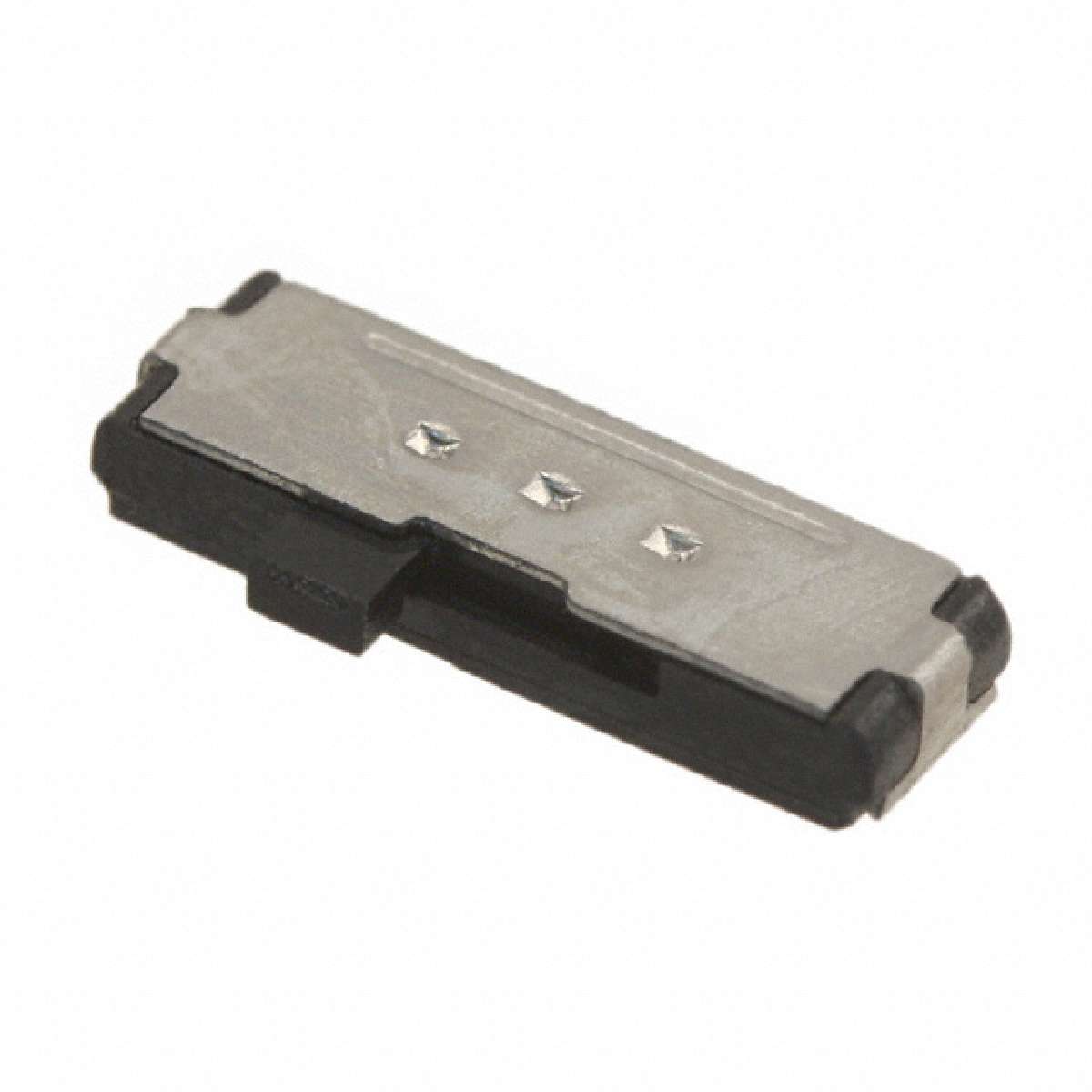

AYZ Series SP3T On-On-On Miniature Slide Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-On-On |
|---|---|
| Circuit | SP3T |
| Actuator Length | 1.00mm |
| Voltage Rating - DC | 12V |
| Manufacturer | C&K |
| Contact Material | Copper Alloy |
| Mechanical Life | 10,000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Contact Timing | Not Specified |
| Actuator Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| ECCN | EAR99 |
| Actuator Type | Standard |
| Contact Finish | Silver |
| Termination Style | Gull Wing |
| Part Status | Active |
| Category | Switches |
| Series | AYZ |
| Family | Slide Switches |
| Operating Temperature | -10°C ~ 60°C |
| Packaging | Tape & Reel (TR) |
| Current Rating | 100mA (DC) |
