| AWG28-10/G/300 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

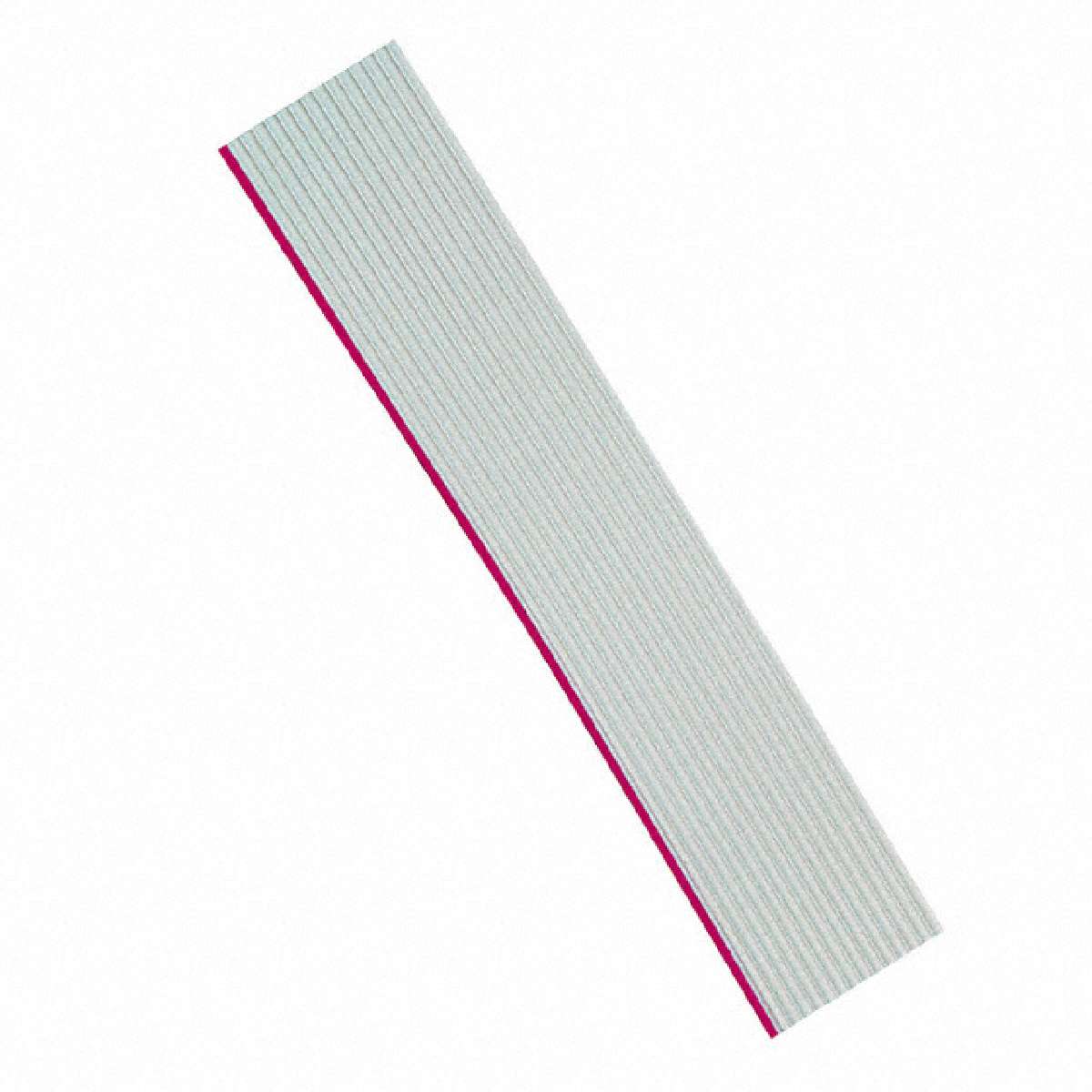

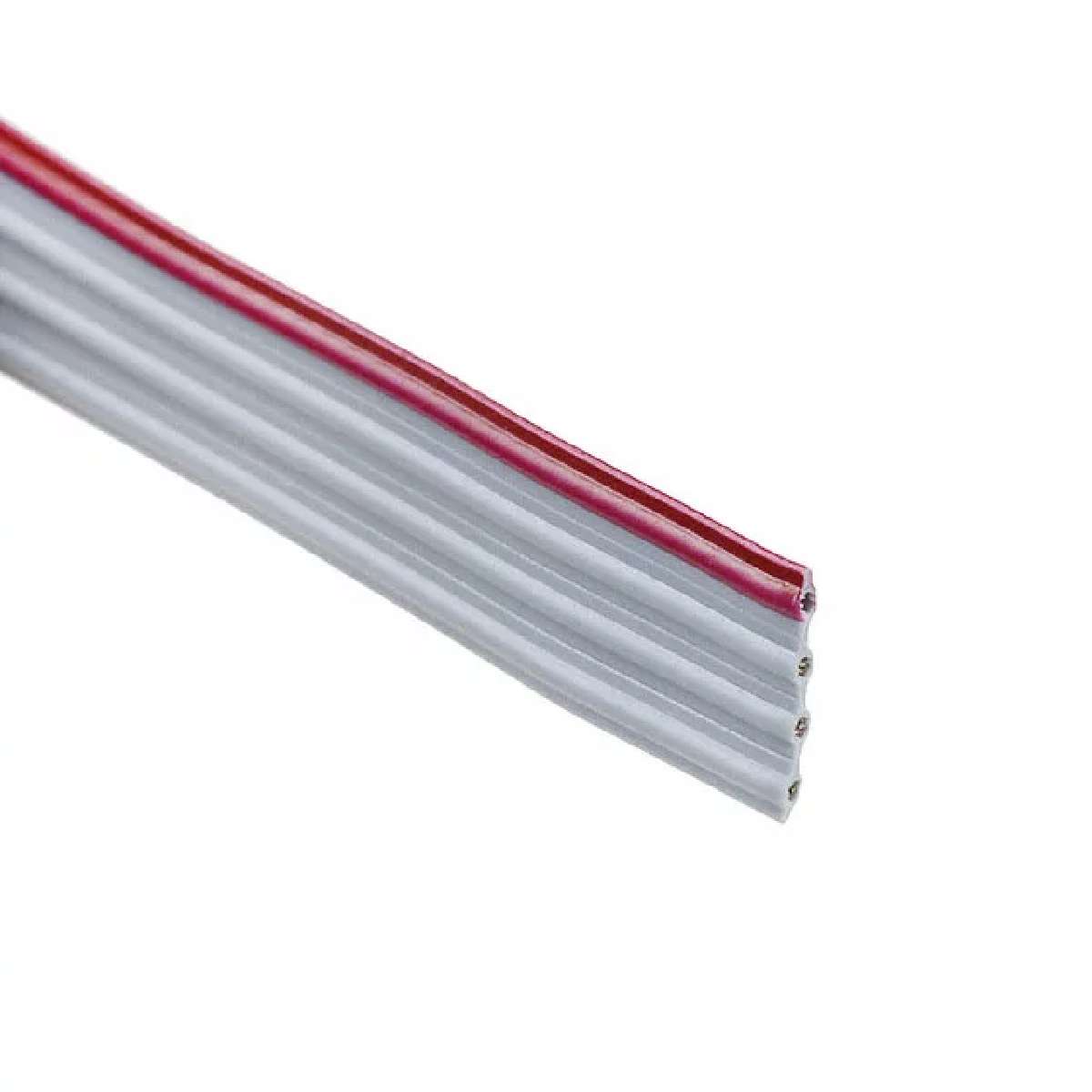

10 POSITION 1.27MM PITCH AWG 28 SERIES FLAT RIBBON
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Conductor Strand | 7 Strands / 36 AWG |
|---|---|
| Cable Type | Flat Cable |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.035" (0.89mm) |
| First Conductor Mark | Red |
| Category | Cables, Wires |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 300' (91.44m) |
| Family | Flat Ribbon Cables |
| Conductor Material | Copper, Tinned |
| Operating Temperature | -10°C ~ 105°C |
| ECCN | EAR99 |
| Ribbon Width | 0.500" (12.70mm) |
| Jacket Color | Gray |
| Number of Conductors | 10 |
| Part Status | Active |
| Manufacturer | Assmann WSW Components |
| Insulation Resistance | 100 MOhms |
| Voltage | 300V |
| Series | AWG |
| Wire Gauge | 28 AWG |
| Shielding | Unshielded |
| Pitch | 0.050" (1.27mm) |
