| AV0630C900 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

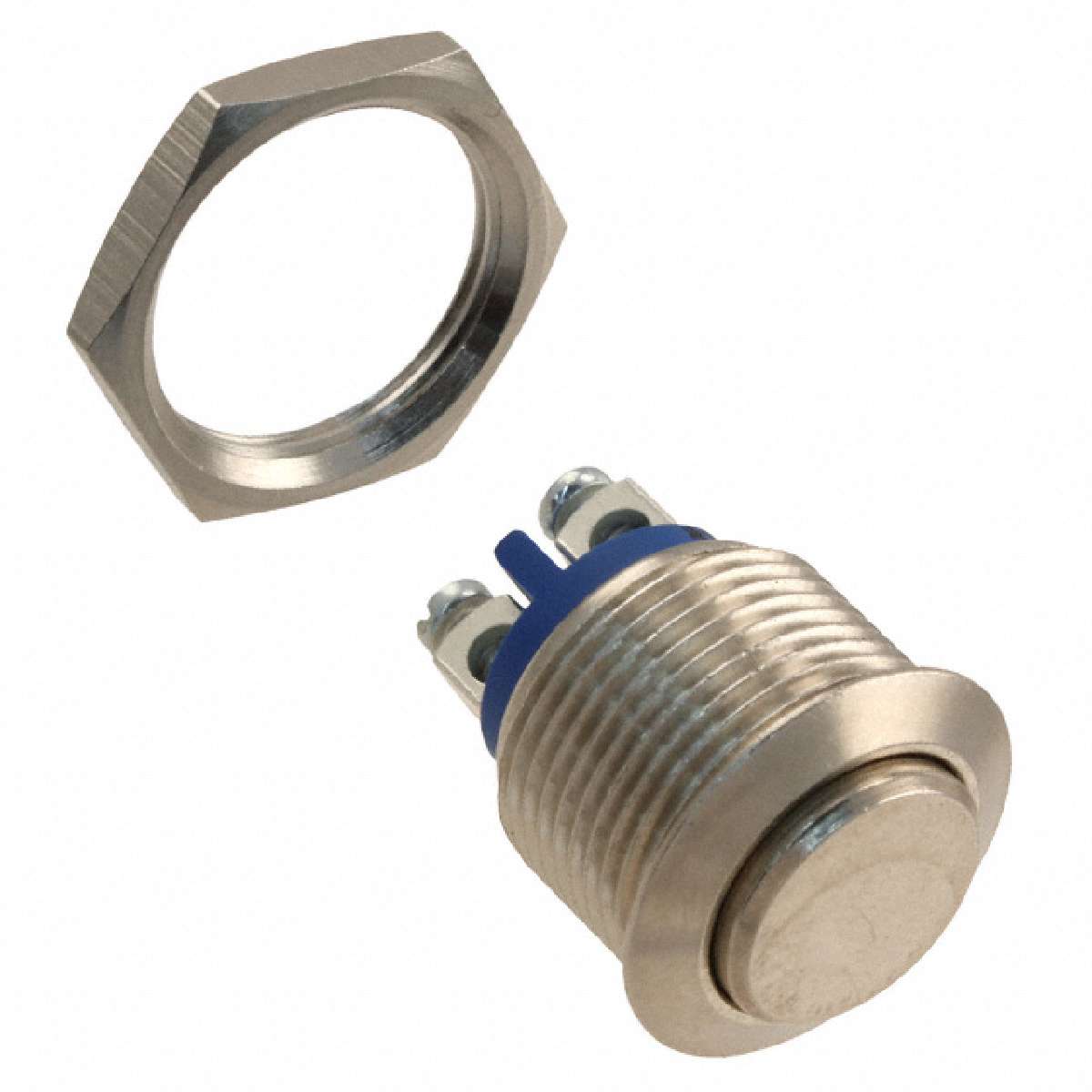

Switch: vandal resistant; Pos: 2; SPST-NO; 0.2A/48VAC; 0.1A/48VDC
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPST-NO |
|---|---|
| Switch Function | Off-Mom |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Voltage Rating - DC | 48V |
| Electrical Life | 50,000 Cycles |
| Manufacturer | Apem Inc. |
| Series | AV |
| Family | Pushbutton Switches |
| Mounting Type | Panel Mount, Front |
| Packaging | Bulk |
| Actuator Type | Round, Button |
| Type | Vandal Resistant |
| Termination Style | Screw Terminal |
| Part Status | Active |
| Category | Switches |
| Color - Actuator/Cap | Silver |
| Mechanical Life | 1,000,000 Cycles |
| Panel Cutout Dimensions | Circular - 16.20mm Dia |
| Operating Temperature | -30°C ~ 70°C |
| Current Rating | 200mA (DC) |
