ERX-1HJR56H
ERX-1HJR56H
  • ACTIVE
  • SMD

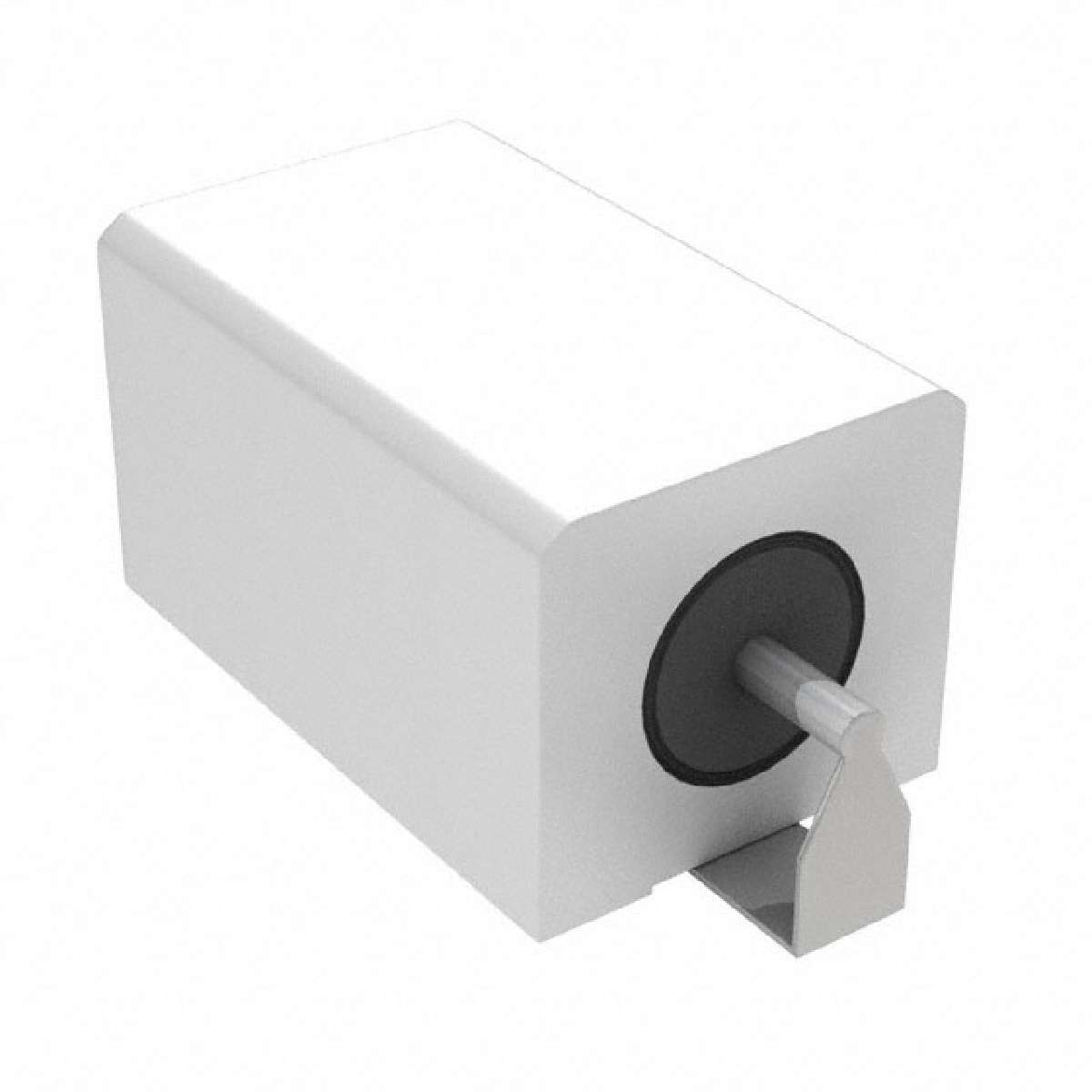

Product description : ERX Series 0.56 Ohm ±5% 1 W ±350 ppm/°C SMT Metal Film Resistor
SPQ:1
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Tolerance ±5%
Supplier Device Package SMD
Height 0.205" (5.20mm)
Number of Terminations 2
Size / Dimension 0.354" L x 0.220" W (9.00mm x 5.60mm)
Resistance (Ohms) 0.56
Family Chip Resistor - Surface Mount
Operating Temperature -55°C ~ 180°C
Packaging Tape & Reel (TR)
Package / Case SMD Flattened J -Bend Axial Lead
Temperature Coefficient ±350ppm/°C
Catalog Drawings ERX-(1,2)H Series Side 1 ERX-(1,2)H Series Bottom ERX-(1,2)H Series Side 2
Features Flame Proof
Online Catalog ERX Series
Series ERX
Power (Watts) 1W
Composition Metal Film
RoHS Lead free / RoHS Compliant
