| ASMT-JR10-ARS01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

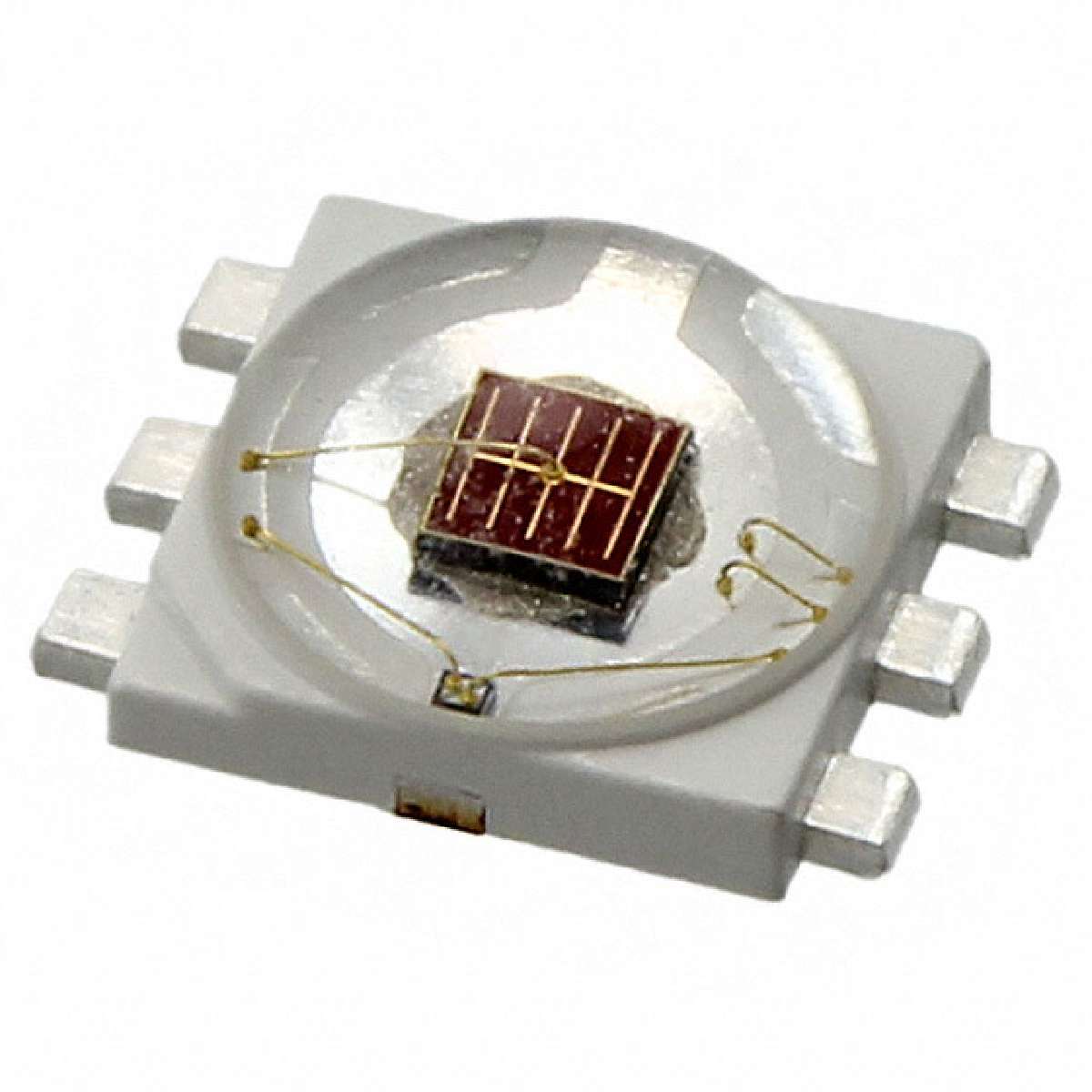

Avago 红色 LED, 165°, 6 针 贴装
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Viewing Angle: | 165 deg |
|---|---|
| Lens Color/Style: | Clear |
| Power Rating: | 1 W |
| Length: | 5 mm |
| Manufacturer: | Broadcom Limited |
| Factory Pack Quantity: | 500 |
| Tradename: | Jade |
| LED Size: | 5 mm x 4 mm x 1.85 mm |
| Height: | 1.85 mm |
| Lens Shape: | Dome |
| Wavelength: | 625 nm |
| Maximum Operating Temperature: | + 115 C |
| Width: | 4 mm |
| Packaging: | Reel |
| Luminous Flux/Radiant Flux: | 48 lm |
| If - Forward Current: | 350 mA |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Broadcom / Avago |
| RoHS: | Details |
| Product Category: | High Power LEDs - Single Color |
| Illumination Color: | Red |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 2.4 V |
| 数据手册： |
|---|
