| ASFLM1-12.000MHZ-C-T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

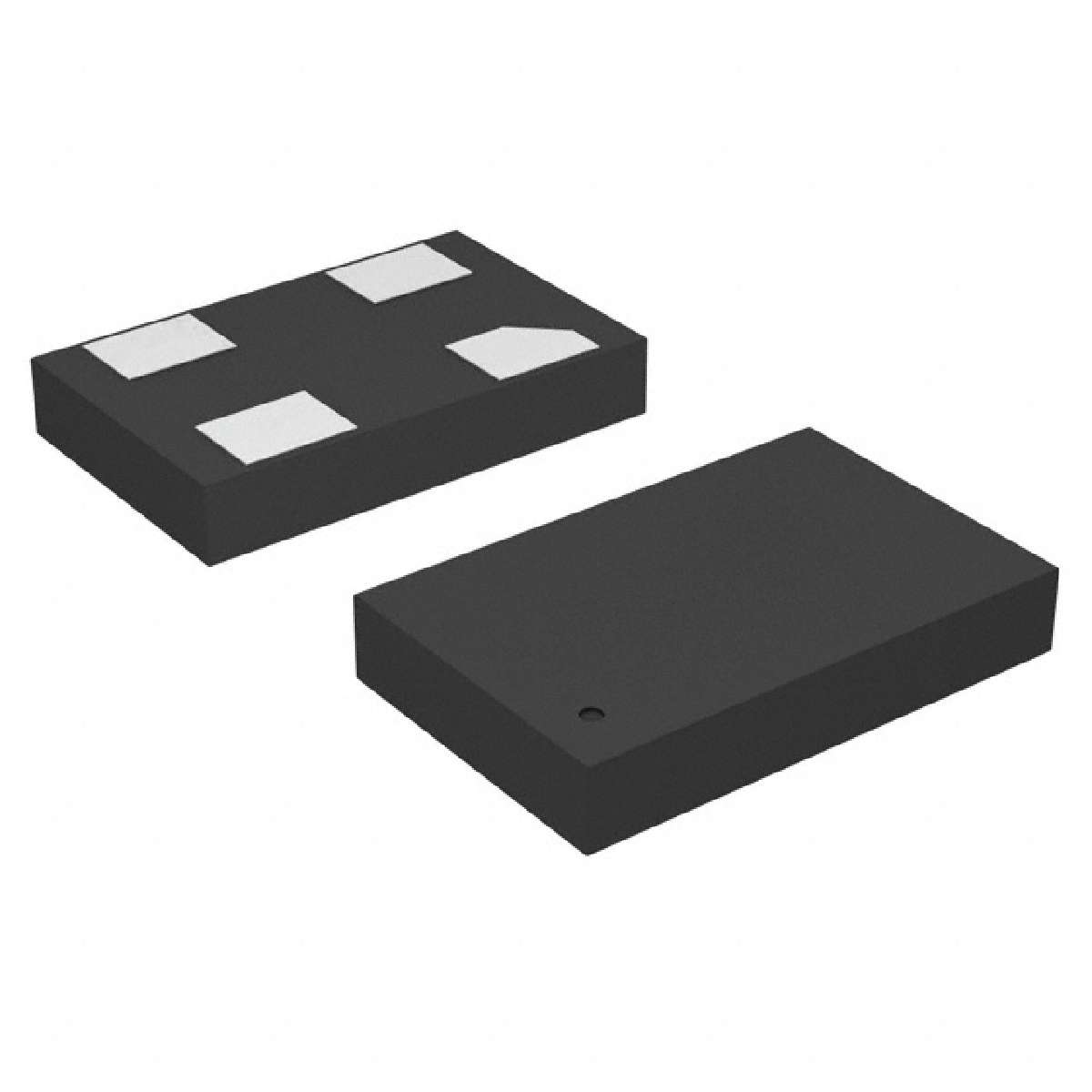

OSC MEMS 12.000MHZ CMOS SMD
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 4-SMD, No Lead (DFN, LCC) |
|---|---|
| Frequency Stability | ±50ppm |
| Function | Standby (Power Down) |
| Output | LVCMOS |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Category | Crystals and Oscillators |
| Series | Pure Silicon™ ASFLM |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Packaging | Tape & Reel (TR) |
| Voltage - Supply | 3V |
| Type | MEMS (Silicon) |
| Height | 0.035" (0.90mm) |
| Current - Supply (Max) | 9mA |
| Part Status | Active |
| Manufacturer | Abracon LLC |
| Family | Oscillators |
| Frequency | 12MHz |
| Current - Supply (Disable) (Max) | 1µA |
| ECCN | EAR99 |
