| ASB03512HB-F00 | ||
|---|---|---|
|
|
||
|
||

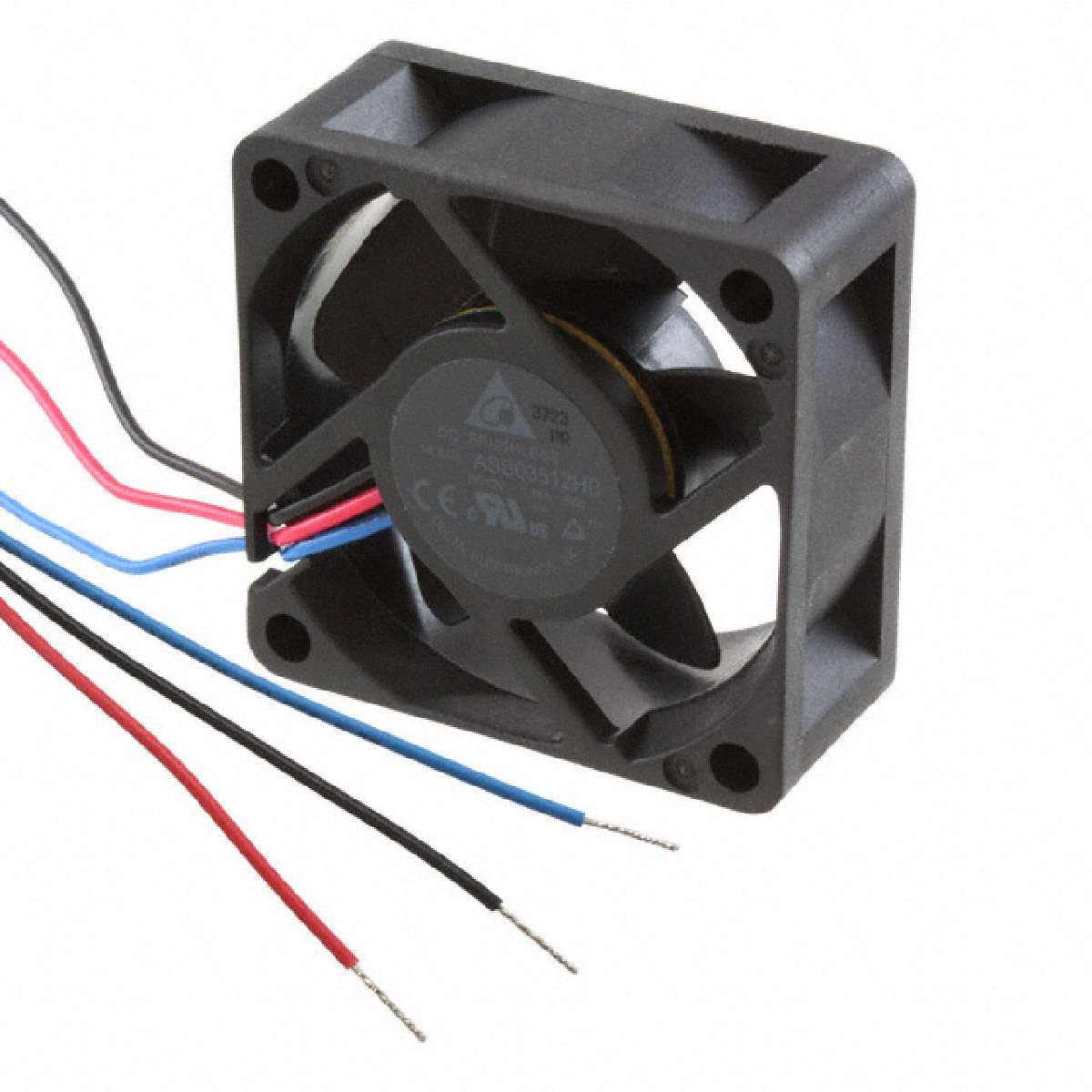

| Product description : DC Fan 35mmX35mmX15mm Sleeve Bearing 12VDC 9.5CFM | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 3 Wire Leads |
|---|---|
| Material - Blade | Plastic |
| Features | Speed Sensor (Tach) |
| Size / Dimension | Square - 35mm L x 35mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Plastic |
| Voltage - Rated | 12VDC |
| Noise | 32.5 dB(A) |
| Family | DC Fans |
| Width | 15.00mm |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.270 in H2O (67.2 Pa) |
| Approvals | CE, UR, VDE |
| Voltage Range | 5 ~ 13.8VDC |
| Part Status | Active |
| Manufacturer | Delta Electronics |
| Air Flow | 8.4 CFM (0.238m³/min) |
| Series | ASB |
| Power (Watts) | 0.96W |
| RPM | 9970 RPM |
| Bearing Type | Sleeve |
| Current Rating | 0.080A |
| ECCN | EAR99 |
