| AS22CH | ||
|---|---|---|
|
|
||
|
||

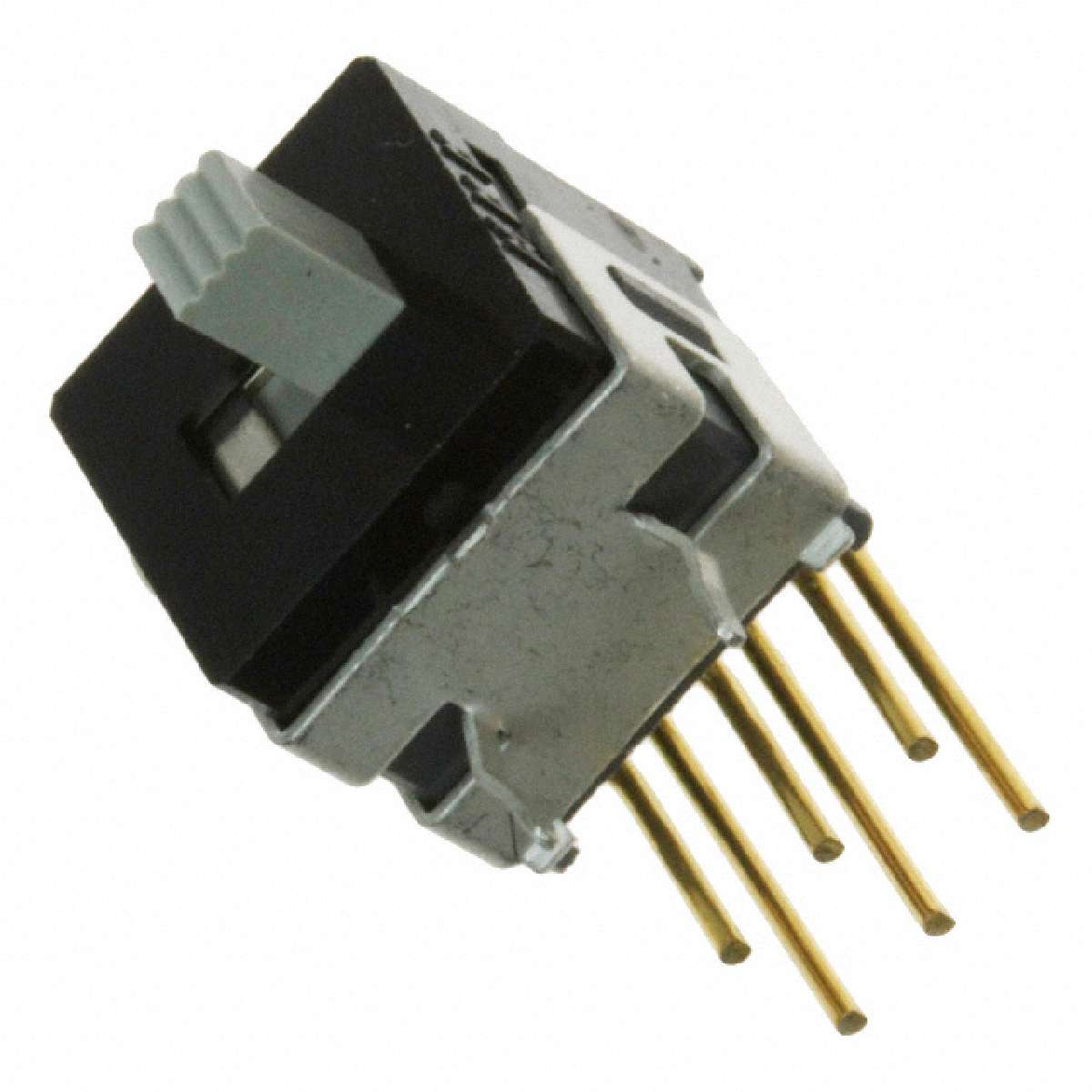

| Product description : AS Series Sub Mini DPDT On-None-On Right Angle Through Hole Slide Switch | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Mounting Angle: | Right |
|---|---|
| Travel: | 2.5 mm |
| Manufacturer: | NKK Switches |
| Series: | AS |
| Contact Form: | DPDT |
| Part # Aliases: | AS-22AH-KNM-G |
| RoHS: | Details |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Type: | Subminiature Slides |
| Mounting Style: | Through Hole |
| Switch Function: | ON - ON |
| Actuator: | 3.8 mm Long |
| Voltage Rating AC: | 28 V |
| Operating Temperature Range: | - 30 C to + 85 C |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Right Angle PC with Bracket |
| Product Category: | Slide Switches |
| Illumination: | Non-Illuminated |
| Contact Current Rating: | 0.4 VA at 28 V |
| ECCN | EAR99 |
