| APXE6R3ARA221MF61G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

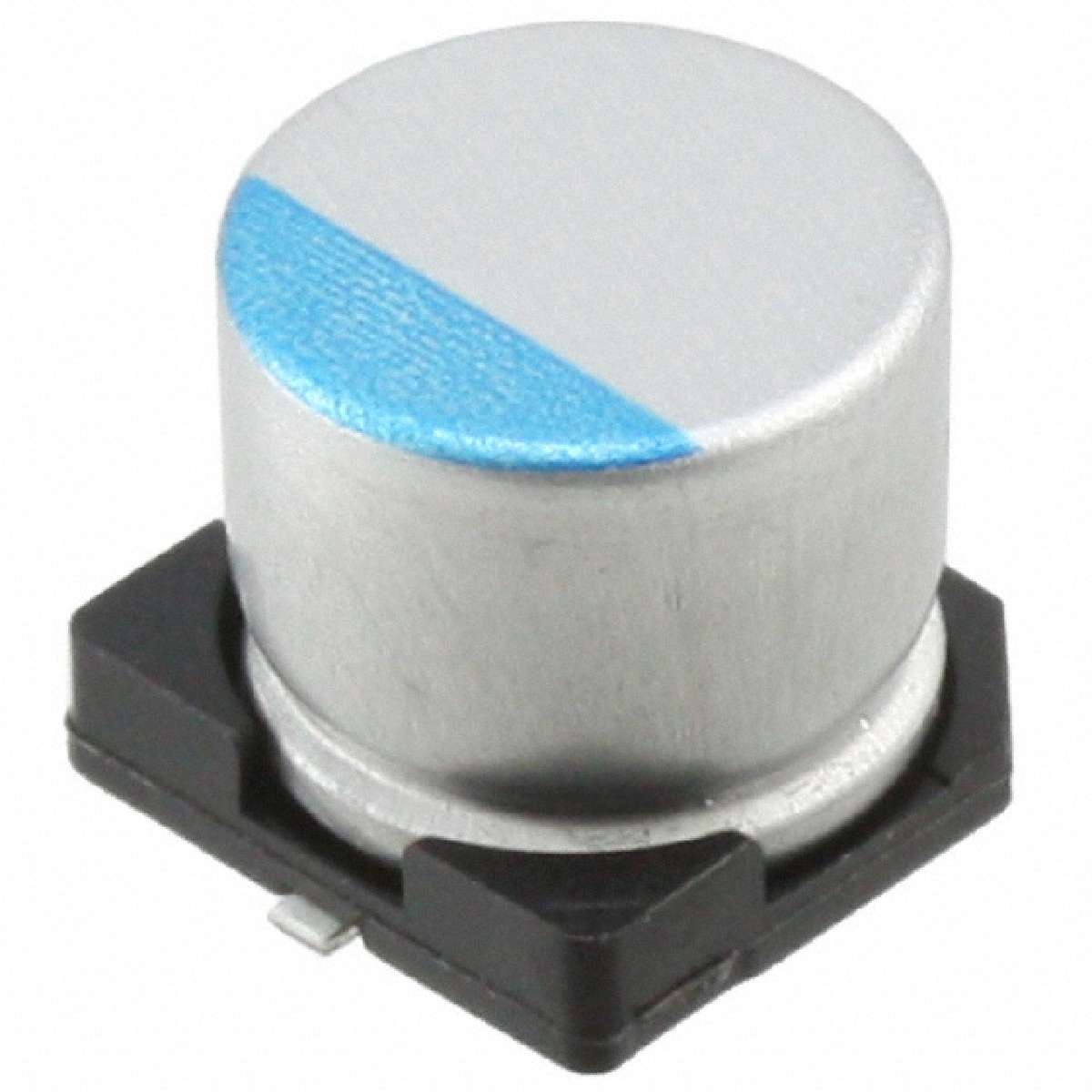

PXE Series Ø 6.3 x 5.8 mm 6.3 V 220 uF Conductive Polymer Aluminum Capacitor
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 6.3V |
|---|---|
| Package / Case | Radial, Can - SMD |
| Capacitance | 220µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 3.16A |
| Manufacturer | United Chemi-Con |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Family | Aluminum - Polymer Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Type | Polymer |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Series | NPCAP™-PXE |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Cut Tape (CT) |
