| APTL3216QBC/D | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

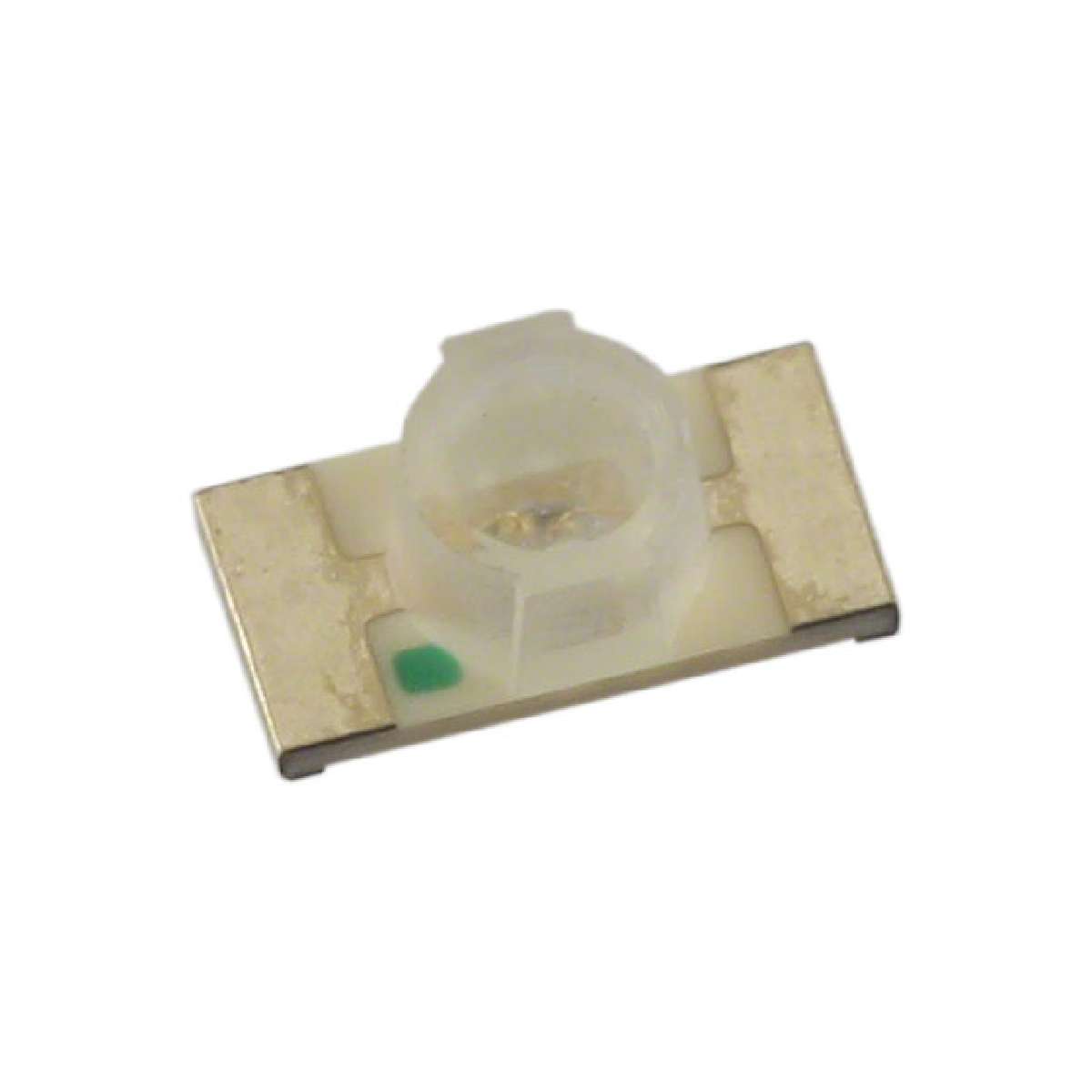

Blue 3.2 x 1.6 mm 70º 250 mcd Clear 3.3 V SMT Chip LED Lamp
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 1206 (3216 Metric) |
|---|---|
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Category | Optoelectronics |
| Lens Style/Size | Round with Flat Top, 1.60mm |
| Wavelength - Dominant | 465nm |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 250mcd |
| ECCN | EAR99 |
| Viewing Angle | 70° |
| Color | Blue |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Wavelength - Peak | 460nm |
| Height (Max) | 1.10mm |
| Lens Transparency | Clear |
| Packaging | Cut Tape (CT) |
| 数据手册： |
|---|
