| APTF1616SEEZGQBDC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

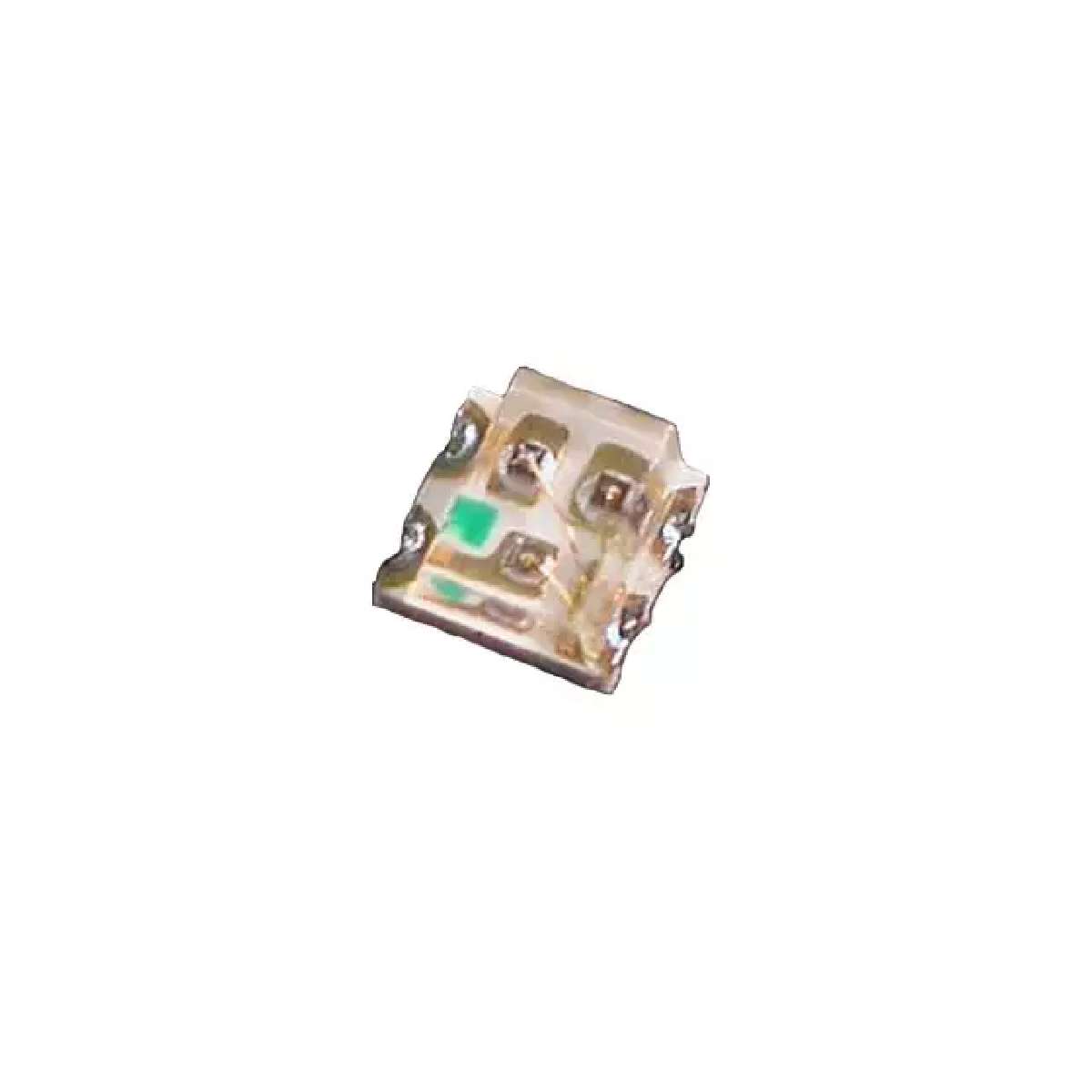

Hyper Red/Green/Blue 120° Water Clear 110/280/70 mcd 2/3.3 V 1.6 x 1.6mm SMD LED
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 0606 (1616 Metric) |
|---|---|
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.20mm x 1.60mm |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 110mcd Red, 280mcd Green, 70mcd Blue |
| ECCN | EAR99 |
| Viewing Angle | 120° |
| Color | Red, Green, Blue (RGB) |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Height (Max) | 0.90mm |
| Lens Transparency | Clear |
| Packaging | Cut Tape (CT) |
