| APTB1615SURKCGKC-F01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

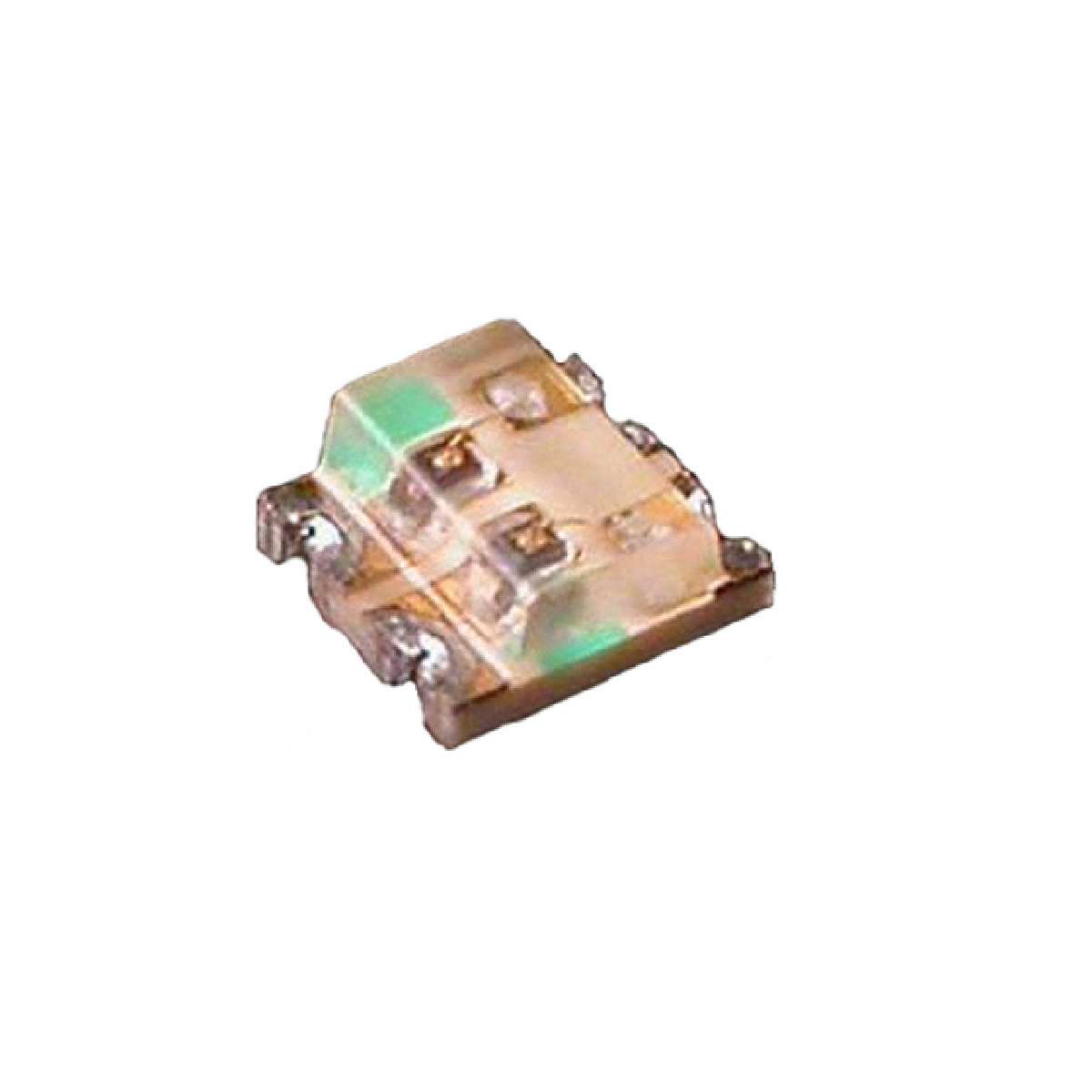

Red/Green 1.6 x 1.5 x 0.7 mm 120° 200/50 mcd 30 mA Clear Bi-Color SMT LED
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 0606 (1616 Metric) |
|---|---|
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.20mm x 1.50mm |
| Wavelength - Dominant | 570nm Green, 630nm Red |
| Current - Test | 20mA Green, 20mA Red |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 50mcd Green, 80mcd Red |
| ECCN | EAR99 |
| Viewing Angle | 120° |
| Color | Green, Red |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red |
| Wavelength - Peak | 574nm Green, 645nm Red |
| Height (Max) | 0.70mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
