| APTB1612SYKCGKC-F01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

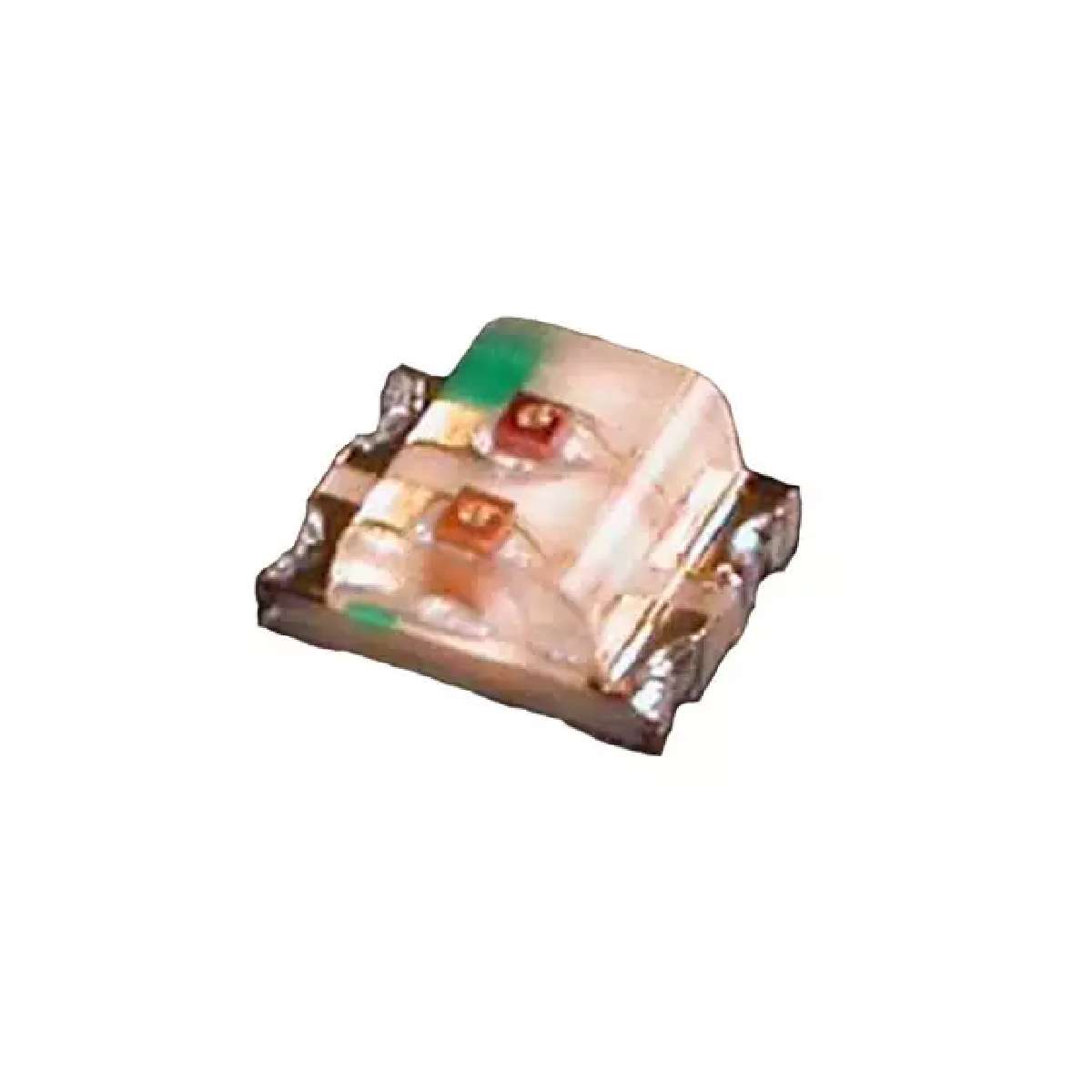

Yellow/Green 1.6 x 1.25 x 0.65 mm 120° Water Clear 120/55 2/2.1 V Chip LED SMT
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 0605 (1613 Metric) |
|---|---|
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.20mm x 1.25mm |
| Wavelength - Dominant | 570nm Green, 590nm Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 50mcd Green, 120mcd Yellow |
| ECCN | EAR99 |
| Viewing Angle | 120° |
| Color | Green, Yellow |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Yellow |
| Wavelength - Peak | 574nm Green, 590nm Yellow |
| Height (Max) | 0.65mm |
| Lens Transparency | Clear |
| Packaging | Cut Tape (CT) |
