| APL3015CGCK-F01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

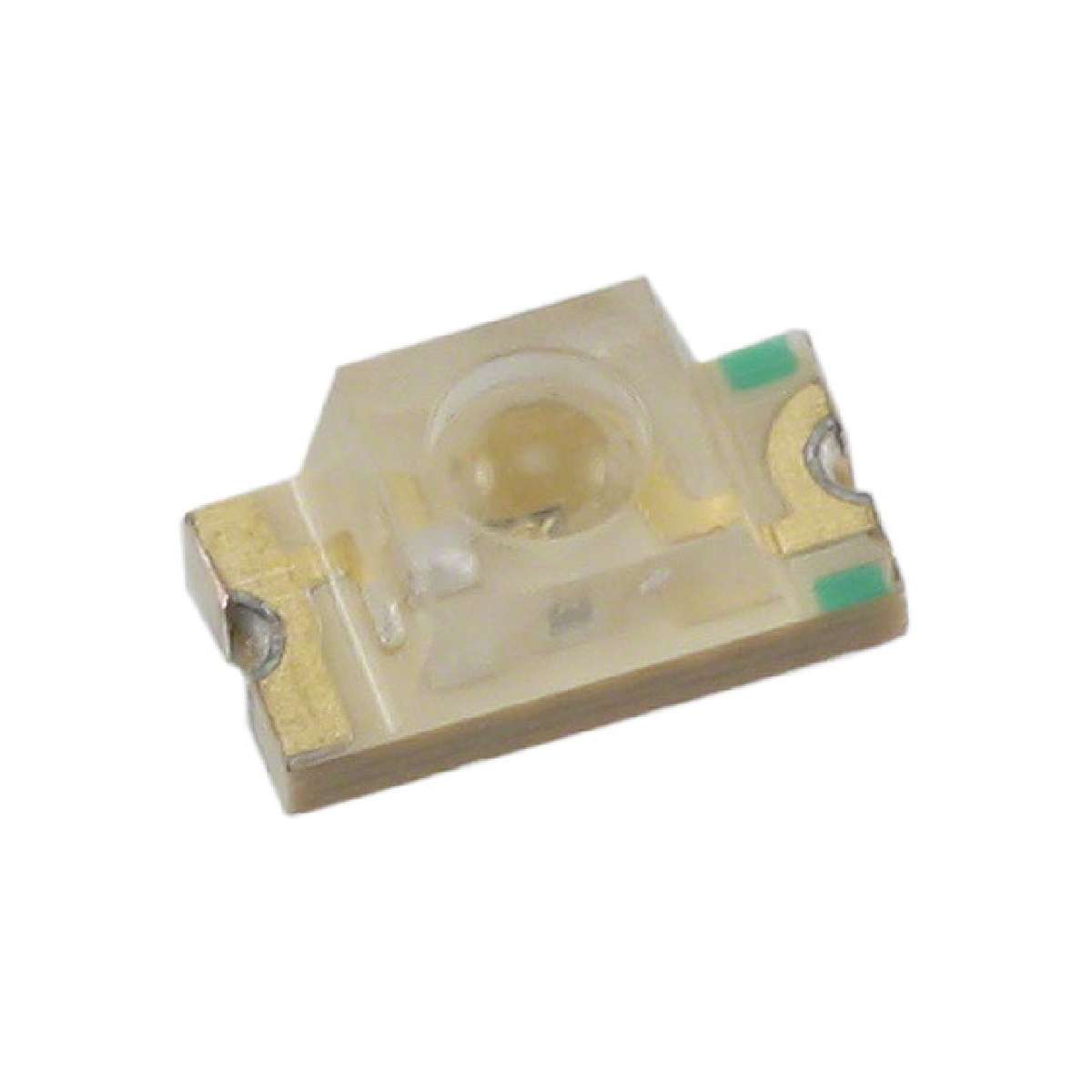

Green 3 X 1.5 X 1.4 mm 70° Water Clear 120 mcd Chip LED SMT
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Viewing Angle: | 70 deg |
|---|---|
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 574 nm |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Kingbright |
| RoHS: | Details |
| LED Size: | 3 mm x 1.5 mm |
| Illumination Color: | Green |
| Lens Dimensions: | 1.14 mm |
| Wavelength: | 570 nm |
| Maximum Operating Temperature: | + 85 C |
| Packaging: | Reel |
| Manufacturer: | Kingbright |
| Luminous Intensity: | 90 mcd |
| Factory Pack Quantity: | 2000 |
| Wavelength/Color Temperature: | 570 nm |
| Package / Case: | 1206 |
| Product Category: | Standard LEDs - SMD |
| Lens Shape: | Dome |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 2.1 V |
| ECCN | EAR99 |
