| APHHS1005SURCK | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

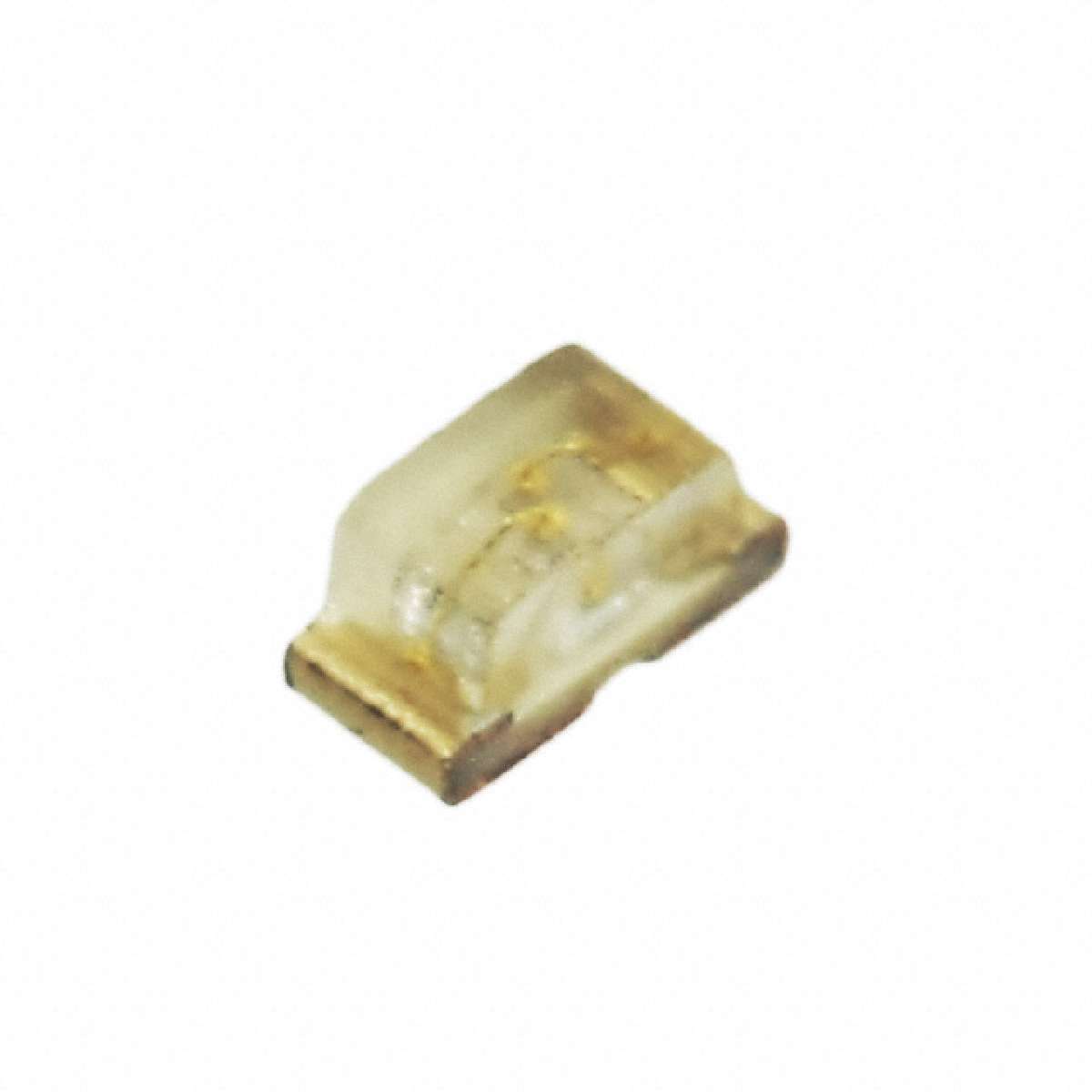

Red 1.0 x 0.5 x 0.5 mm 120° Water Clear 220 mcd 1.95 V Chip LED Lamp SMT
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Water Clear |
|---|---|
| Packaging: | Reel |
| Manufacturer: | Kingbright |
| Luminous Intensity: | 220 mcd |
| Factory Pack Quantity: | 2000 |
| Wavelength/Color Temperature: | 630 nm |
| Package / Case: | 0402 |
| Product Category: | Standard LEDs - SMD |
| Lens Shape: | Rectangular |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 1.95 V |
| ECCN | EAR99 |
| Viewing Angle: | 120 deg |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 650 nm |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Kingbright |
| RoHS: | Details |
| LED Size: | 1 mm x 0.5 mm |
| Illumination Color: | Red |
| Lens Dimensions: | 0.8 mm x 0.5 mm |
| Wavelength: | 630 nm |
| Maximum Operating Temperature: | + 85 C |
