| APB3227SURKCGKC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

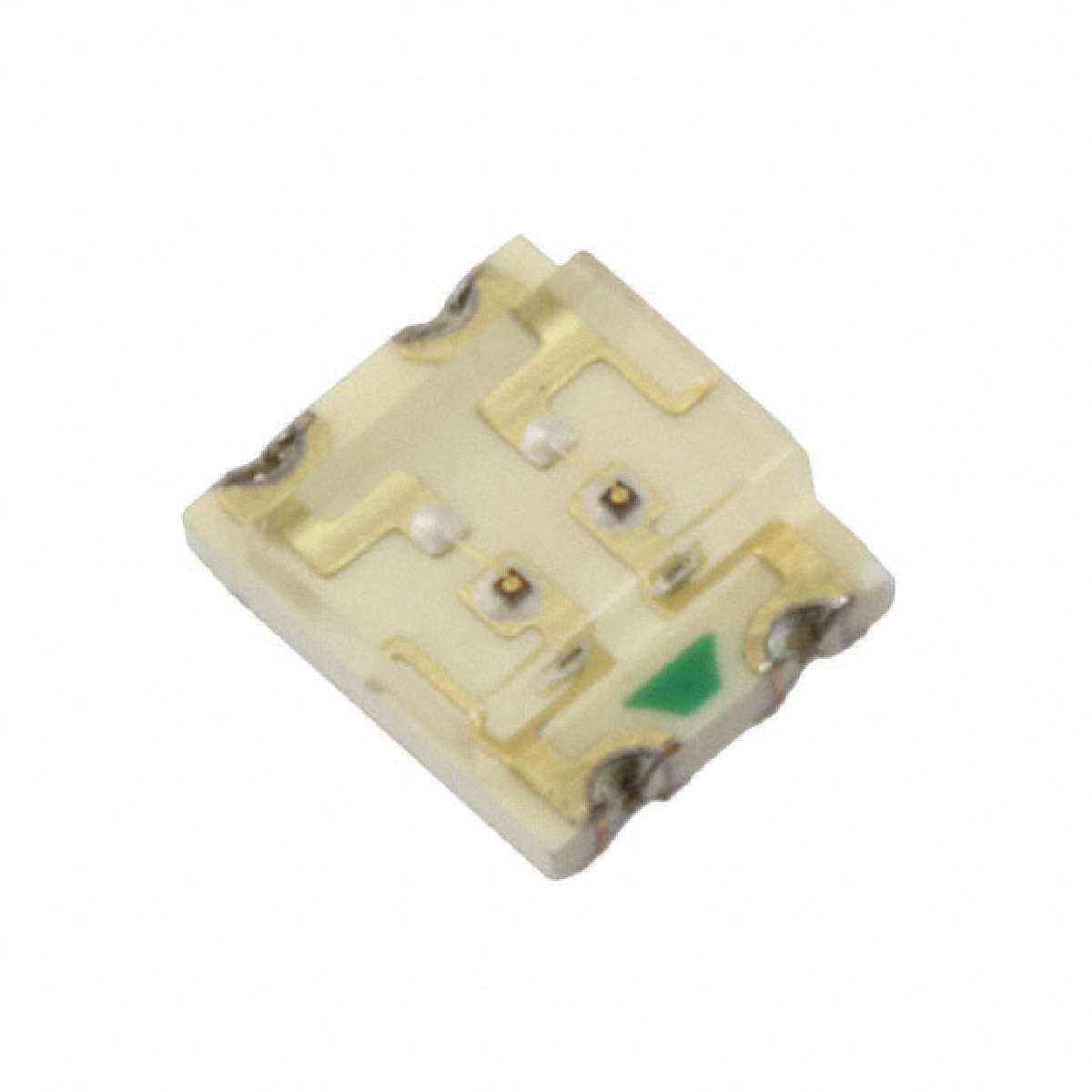

Green/Red 3.2 x 2.7 mm 100° 55/80 mcd Clear 2.1/1.95 V Surface Mount LED
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Water Clear |
|---|---|
| Packaging: | Reel |
| If - Forward Current: | 20 mA |
| Luminous Intensity: | 250 mcd, 55 mcd |
| Factory Pack Quantity: | 2000 |
| Wavelength/Color Temperature: | 630 nm, 570 nm |
| LED Size: | 3.2 mm x 2.7 mm x 1.1 mm |
| Illumination Color: | Red, Green |
| Vf - Forward Voltage: | 2.5 V |
| ECCN | EAR99 |
| Viewing Angle: | 100 deg |
| Power Rating: | 75 mW |
| Manufacturer: | Kingbright |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Kingbright |
| RoHS: | Details |
| Product Category: | Standard LEDs - SMD |
| Mounting Style: | SMD/SMT |
| Maximum Operating Temperature: | + 85 C |
