| 031-70221 | ||
|---|---|---|
|
|
||
|
||

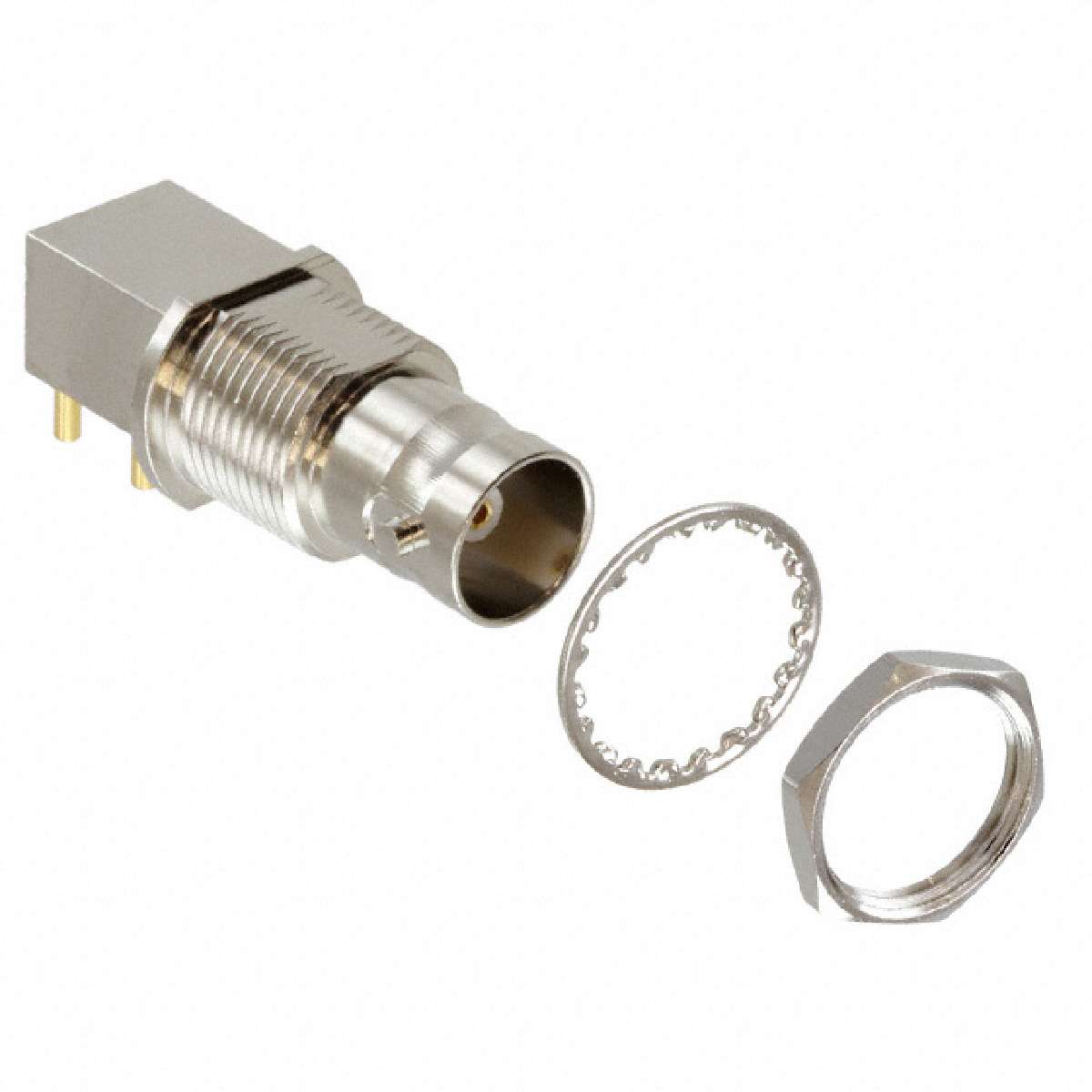

| Product description : Socket; BNC; female; non-insulated; angled 90°; 75Ω; THT; on PCBs | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 500V |
|---|---|
| Connector Style | BNC |
| Contact Termination | Solder |
| Body Material | Brass |
| Manufacturer | Amphenol-RF Division |
| Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 3GHz |
| Part Status | Active |
| Family | Coaxial Connectors (RF) |
| Connector Type | Jack, Female Socket |
| Impedance | 75 Ohm |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Body Finish | Nickel |
| Packaging | Bulk |
| Housing Color | Silver |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Category | Connectors, Interconnects |
| Operating Temperature | -65°C ~ 165°C |
