08-2503-30

ACTIVE EAR99

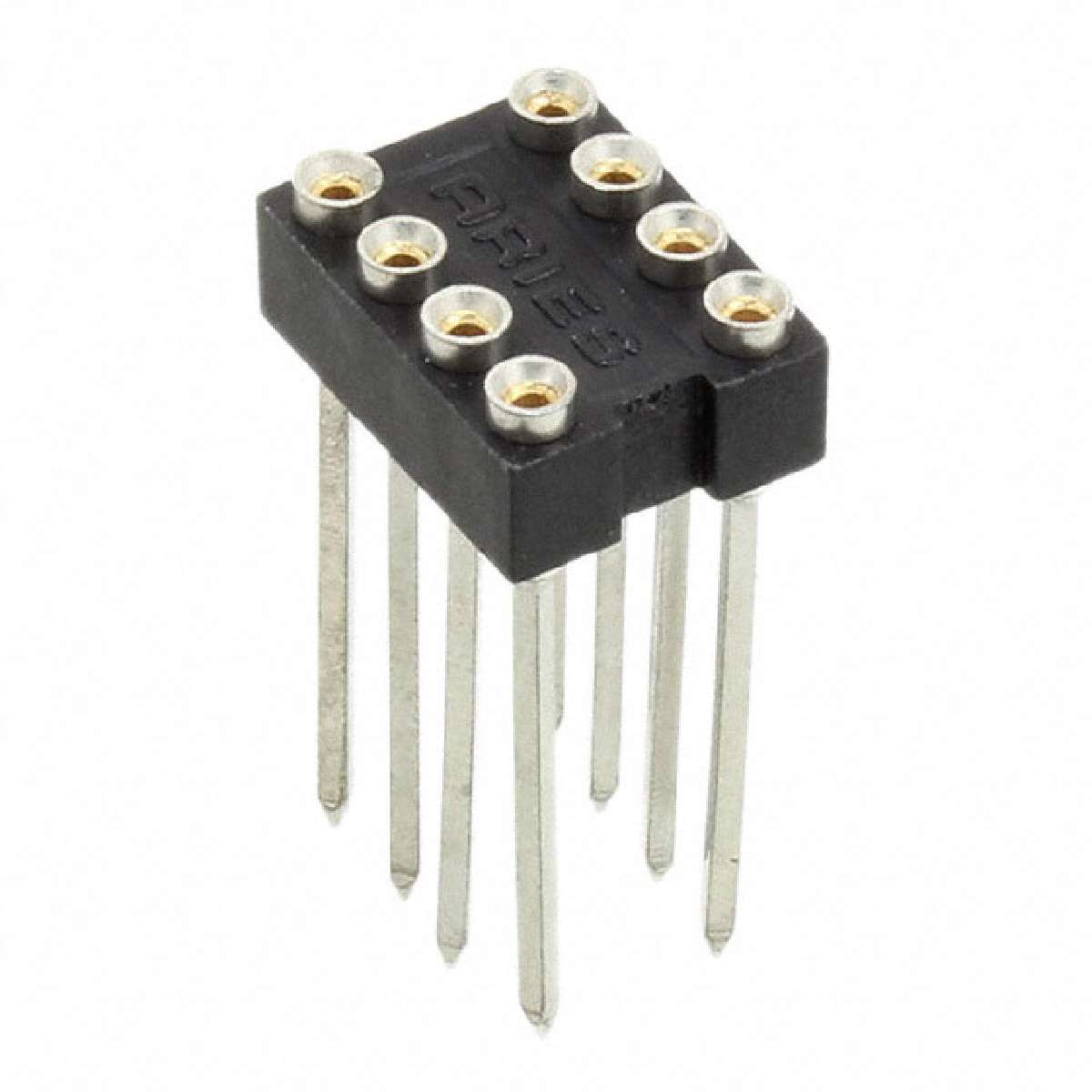

Product description : 503 Series 8 Position 5.08 mm Pitch Low Profile Collet Socket w/ Wire Wrap Pins
SPQ：1
Datasheet : 08-2503-30.pdf

Termination	Wire Wrap
Termination Post Length	0.500" (12.70mm)
Contact Finish - Post	Tin
Part Status	Active
Number of Positions or Pins (Grid)	8 (2 x 4)
Category	Connectors, Interconnects
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Finish Thickness - Mating	10µin (0.25µm)
Series	503
Family	Sockets for ICs, Transistors
Operating Temperature	-55°C ~ 105°C
Packaging	Bulk
ECCN	EAR99
Pitch - Post	0.100" (2.54mm)
Type	DIP, 0.2" (5.08mm) Row Spacing
Features	Closed Frame
Contact Finish Thickness - Post	200µin (5.08µm)
Manufacturer	Aries Electronics
Contact Finish - Mating	Gold
Contact Material - Post	Phosphor Bronze
Contact Material - Mating	Beryllium Copper
Pitch - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Material Flammability Rating	UL94 V-0
Current Rating	3A

Datasheet： 08-2503-30.pdf
