| EVQ-P0E07K | ||
|---|---|---|
|
|
||
|
||

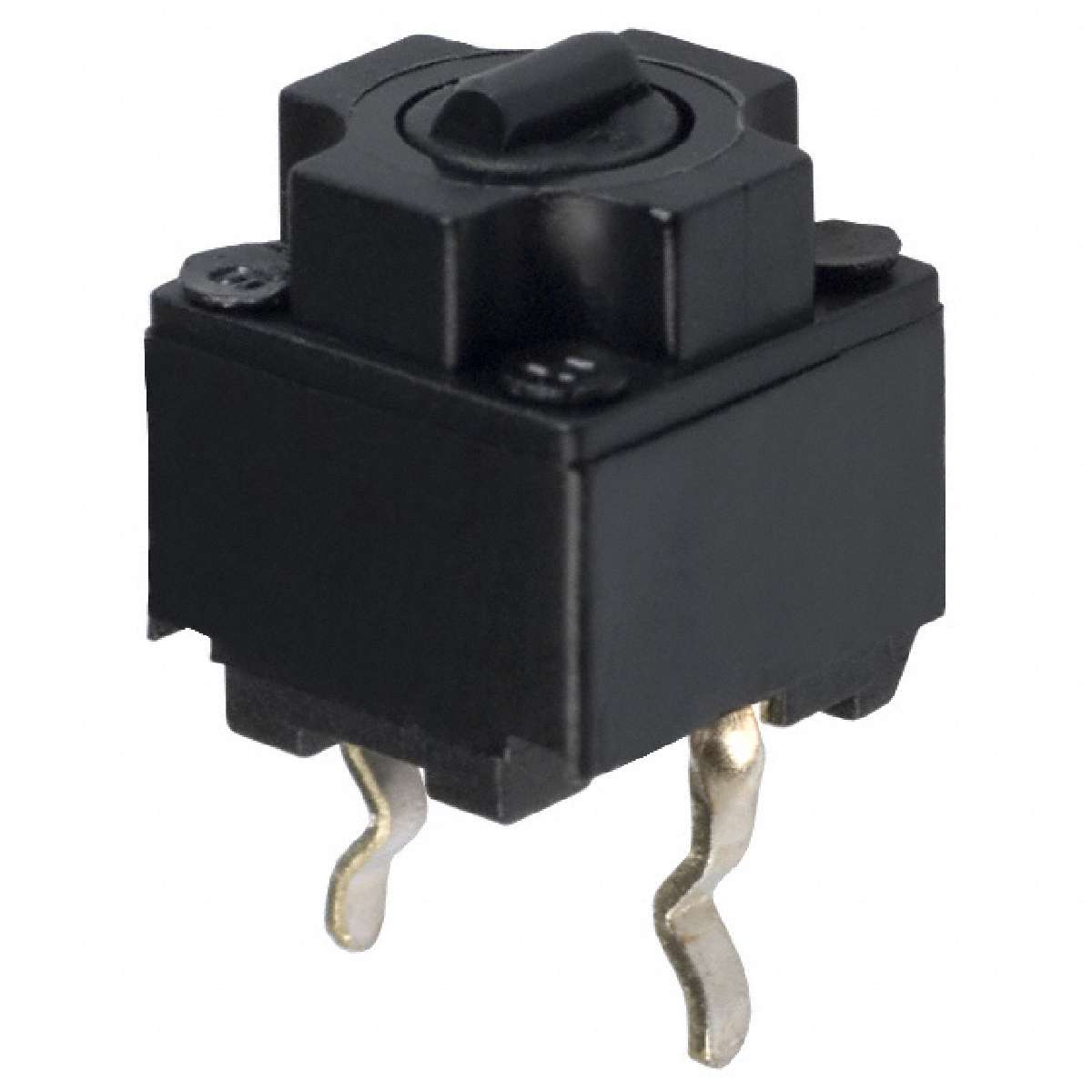

| Product description : EVQ-P0 Series 6.2x6.2 mm Through Hole 0.74 N Light Touch Switch Over Travel Type | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Switch Function | Off-Mom |
|---|---|
| Actuator Height off PCB, from Pins | 7.45mm |
| Product Training Modules | Tact Switches |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05A @ 30VDC |
| Illumination | Non-Illuminated |
| Switch Travel | 0.50mm |
| Series | EVQP0 |
| Outline | 6.20mm x 6.20mm |
| RoHS | Lead free / RoHS Compliant |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Operating Force | 75gf |
| Packaging | Bulk |
| Actuator Type | Standard |
| Catalog Drawings | Through Hole Circuit 2 EVQ-P0_7.45 EVQ-P0(D,E)07K Footprint |
| Online Catalog | EVQ-P0 Series |
| Mechanical Life | 5,000,000 Cycles |
| Family | Tactile Switches |
| Operating Temperature | -20°C ~ 70°C |
