| 1052630001 | ||
|---|---|---|
|
|
||
|
||

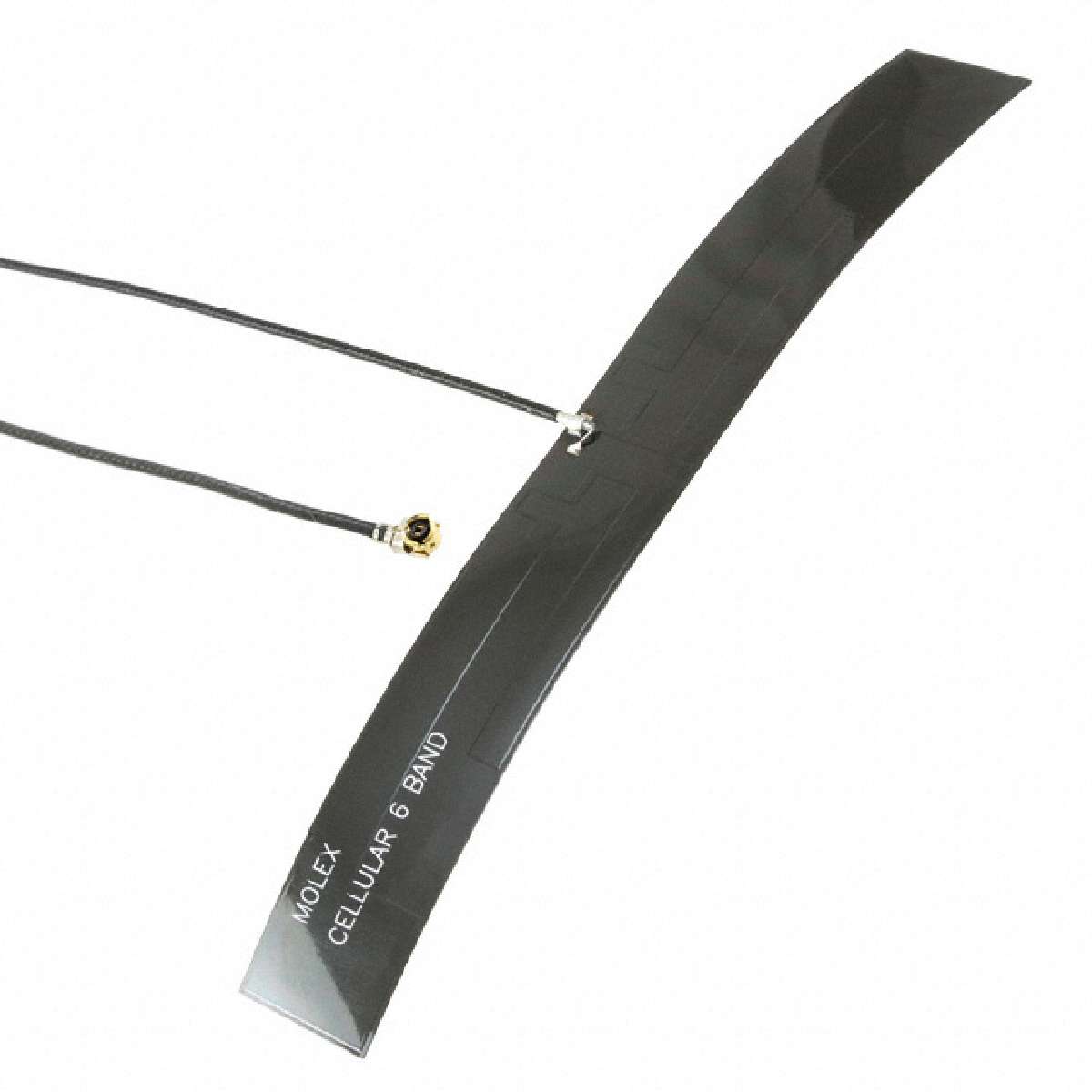

| Product description : Antenna; 2G,3G,4G,GSM,LTE; 3dBi; linear; for ribbon cable; U.FL | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Power - Max | 2W |
|---|---|
| Gain | 2dBi, 2.2dBi, 2.3dBi, 3.1dBi |
| Antenna Type | Flat Patch |
| Part Status | Active |
| Category | RF/IF and RFID |
| Series | 105263 |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Frequency Range | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz |
| Termination | Cable (100mm) - U.FL |
| Number of Bands | 6 |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz |
| Manufacturer | Molex, LLC |
| Family | RF Antennas |
| Applications | GSM, LTE, UMTS |
| Return Loss | -6.8dB, -7dB, -7.5dB, -10dB, -10.5dB |
| Packaging | Tray |
