| 12-820-90C | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

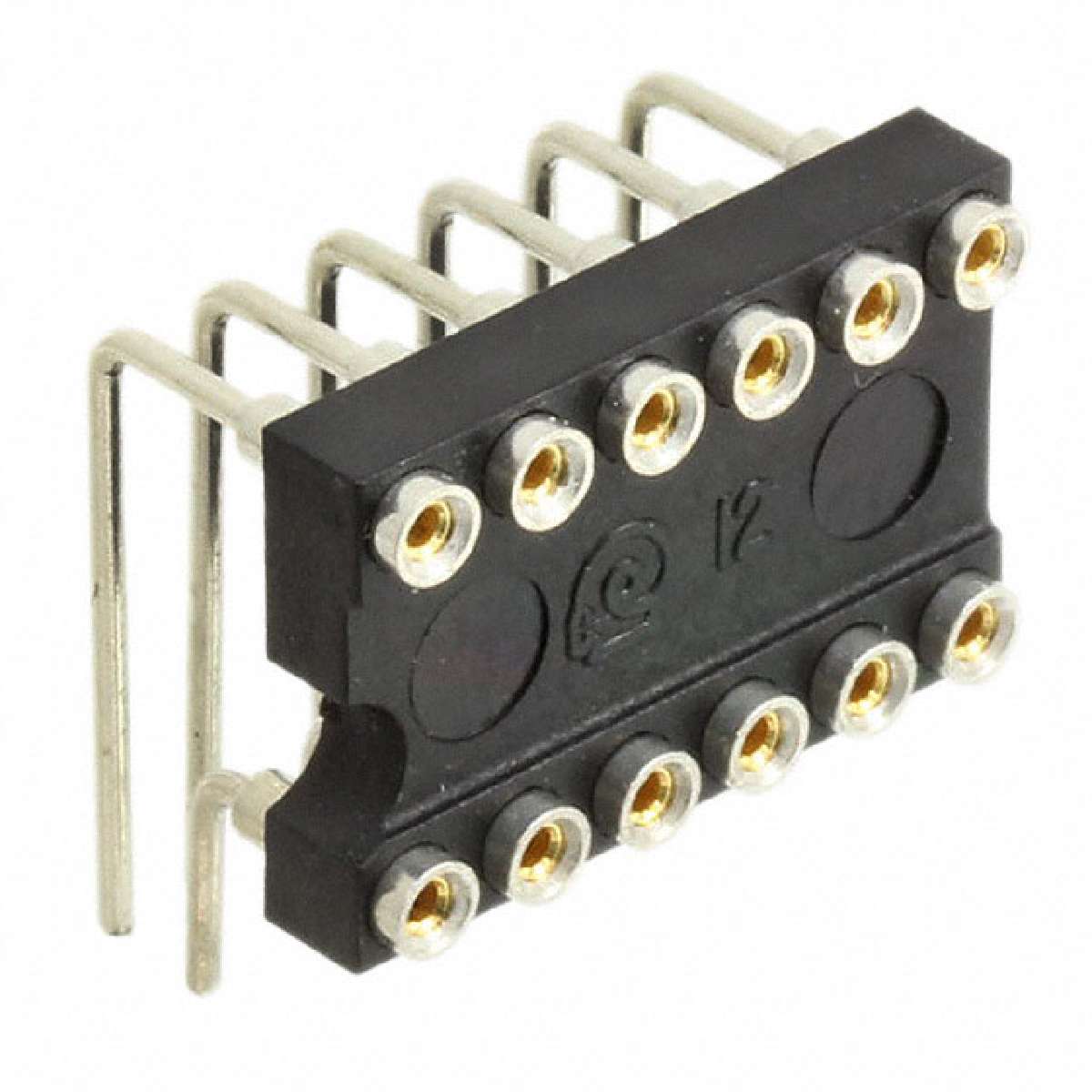

12 Position Horizontal Mounting Vertisocket with Collet Contacts
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder |
|---|---|
| Termination Post Length | 0.140" (3.56mm) |
| Contact Finish - Post | Tin |
| Part Status | Active |
| Number of Positions or Pins (Grid) | 12 (2 x 6) |
| Category | Connectors, Interconnects |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Contact Finish Thickness - Mating | 30µin (0.76µm) |
| Series | Vertisockets™ 800 |
| Family | Sockets for ICs, Transistors |
| Operating Temperature | -55°C ~ 105°C |
| Packaging | Bulk |
| ECCN | EAR99 |
| Pitch - Post | 0.100" (2.54mm) |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Features | Closed Frame |
| Contact Finish Thickness - Post | 200µin (5.08µm) |
| Manufacturer | Aries Electronics |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Brass |
| Contact Material - Mating | Beryllium Copper |
| Pitch - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle, Horizontal |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 3A |
