| UVY2V100MPD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

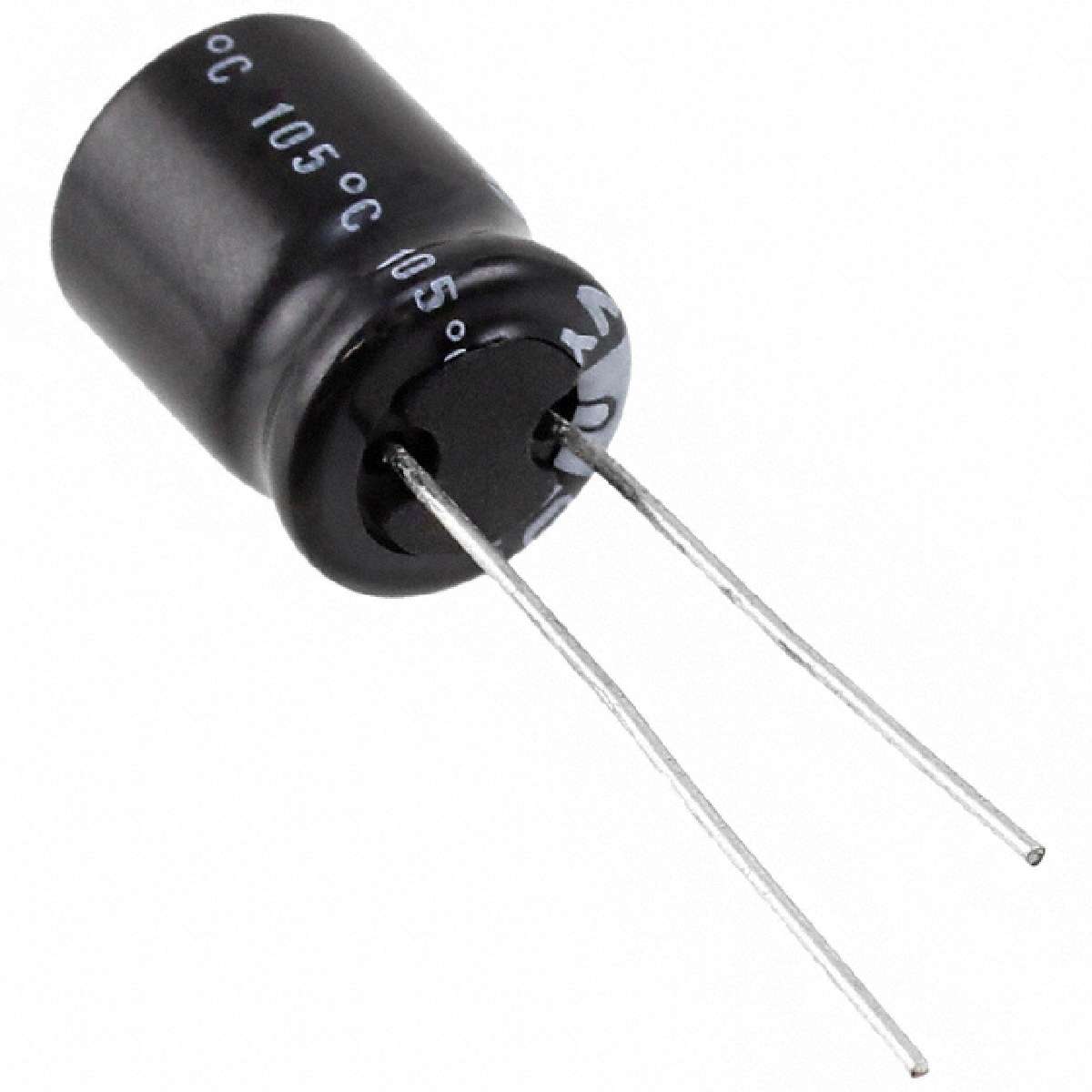

VY Series 10 uF 350 V 105°C Ø10 x 12.5mm LS=5mm Radial Aluminum Electrolytic Cap
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 350V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 10µF |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 64mA |
| Series | VY |
| Applications | General Purpose |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Lead Spacing | 0.197" (5.00mm) |
| Standard Package | 200 |
| Packaging | Bulk |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
