| URS0J220MDD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

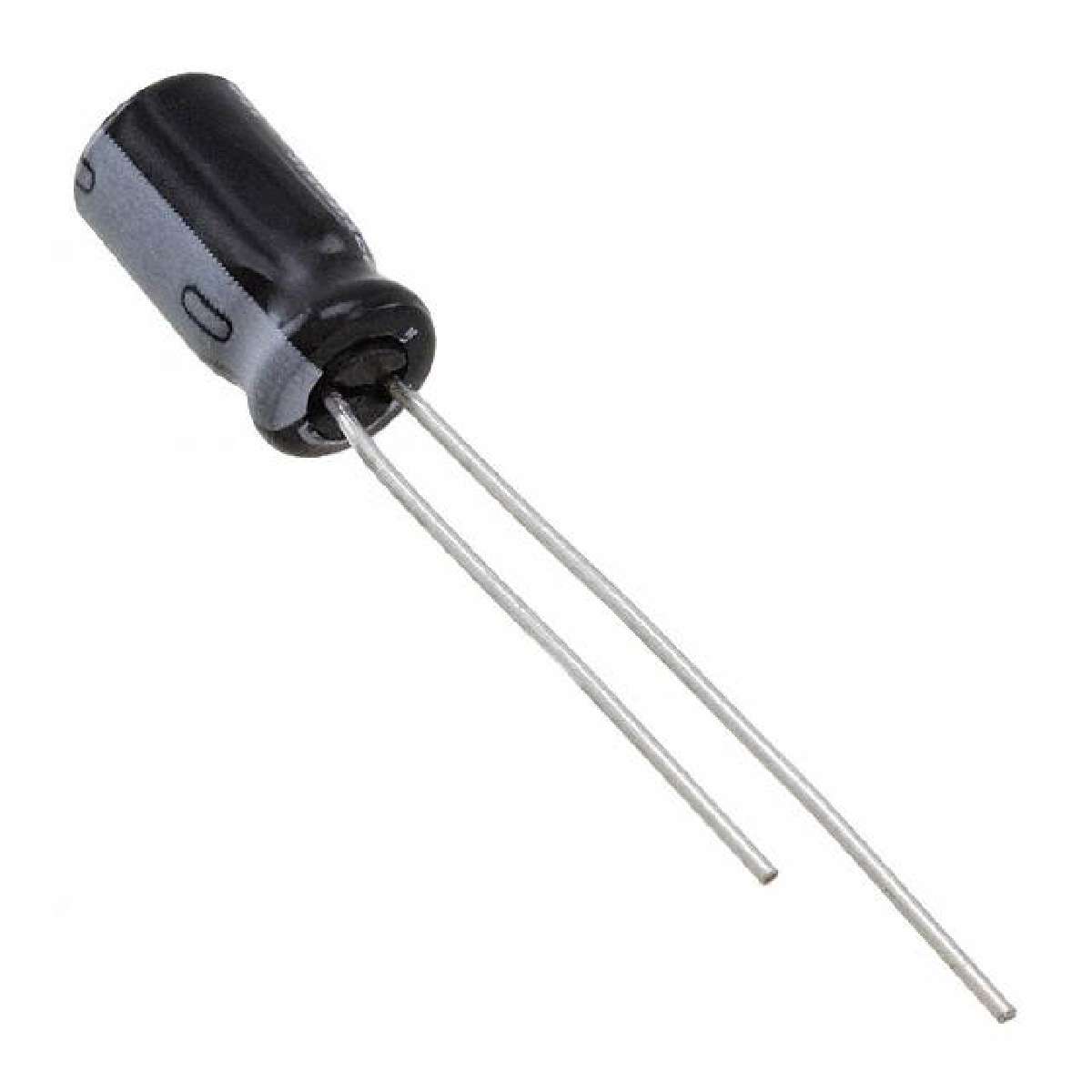

Capacitor: electrolytic; THT; 22uF; 6.3VDC; Ø5x9mm; Pitch: 2mm; ±20%
|
||
| 标准包装：10 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 6.3V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 22µF |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Ripple Current | 35mA |
| Series | RS |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Tolerance | ±20% |
| Lead Spacing | 0.079" (2.00mm) |
| Standard Package | 200 |
| Packaging | Bulk |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
