| UPS1H102MHD | ||
|---|---|---|
|
|
||
|
||

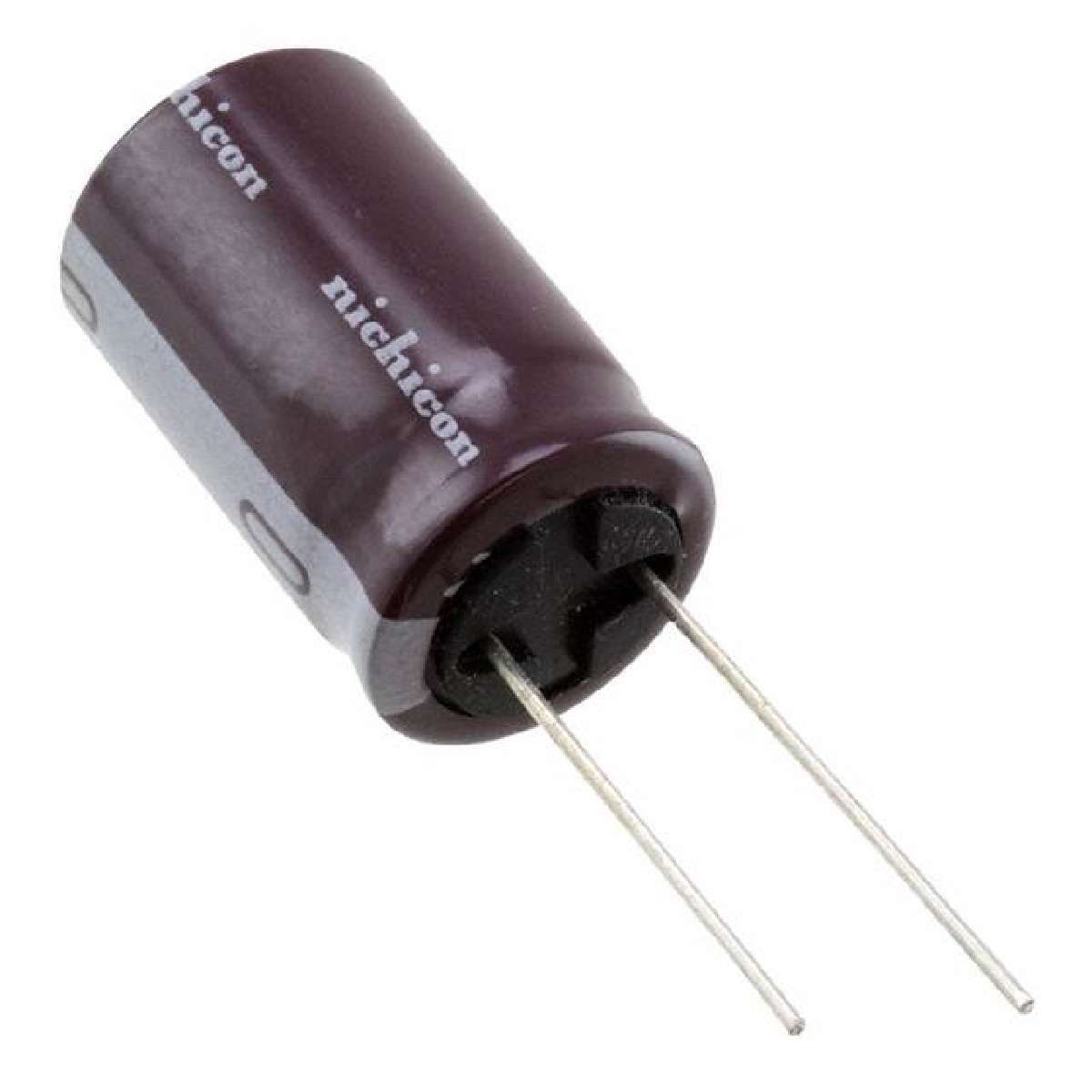

| Product description : PS Series 1000 uF 50V 105°C Ø16 x 25mm LS=7.5mm Radial Aluminum Electrolytic Cap | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 50V |
|---|---|
| Impedance | 58 mOhm |
| Lead Spacing | 0.295" (7.50mm) |
| Standard Package | 50 |
| Packaging | Bulk |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 1000µF |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Ripple Current | 1.6A |
| Series | PS |
| Applications | General Purpose |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| ECCN | EAR99 |
