| UCA2W220MHD6 | ||
|---|---|---|
|
|
||
|
||

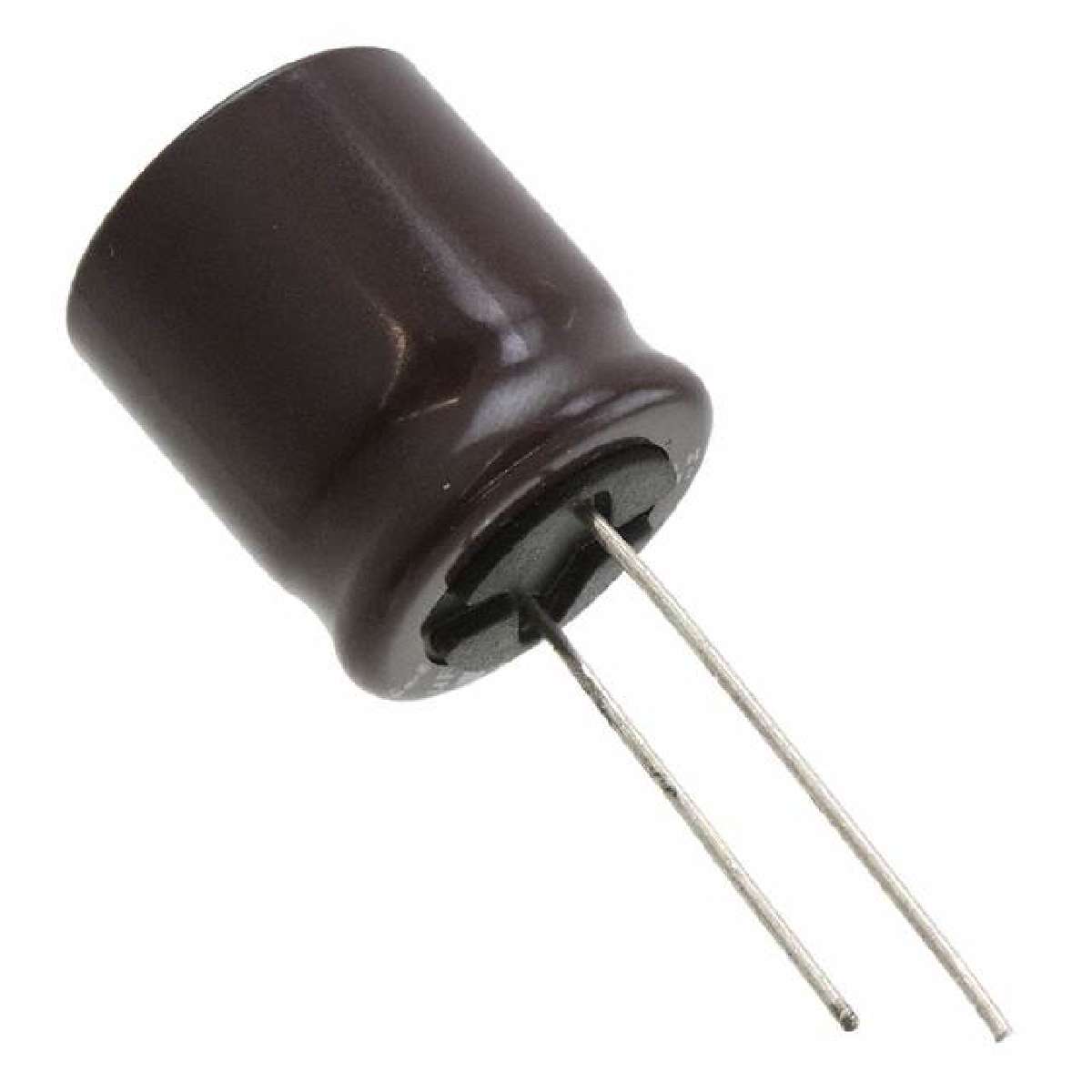

| Product description : Capacitor: electrolytic; THT; 22uF; 450VDC; Ø18x20mm; Pitch: 7.5mm | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 450V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 22µF |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Ripple Current | 560mA |
| Series | CA |
| Applications | General Purpose |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Lead Spacing | 0.295" (7.50mm) |
| Standard Package | 50 |
| Packaging | Bulk |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
