| UB15KKG015F-FF | ||
|---|---|---|
|
|
||
|
||

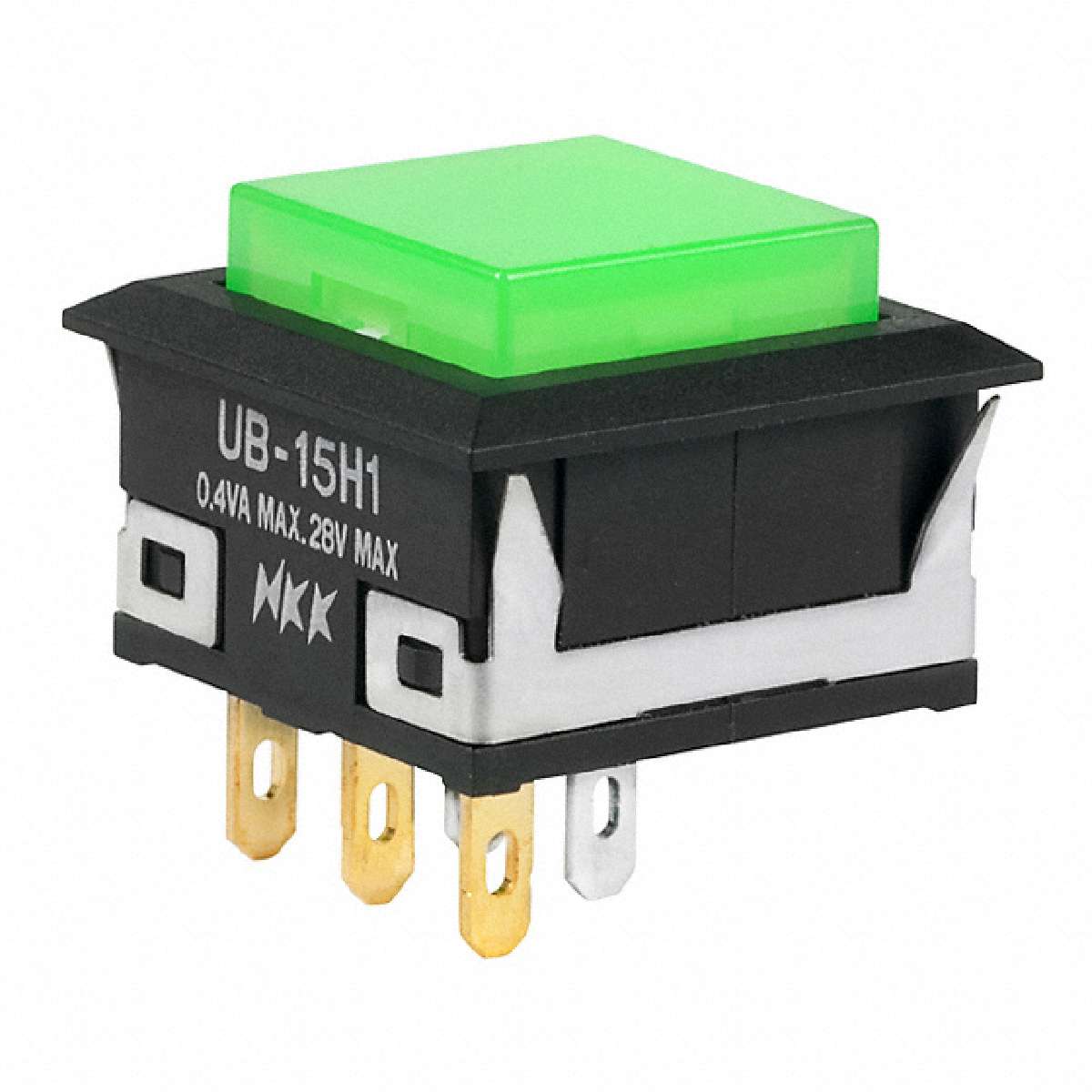

| Product description : Green Square SPDT On-On Snap In Mount Illuminated Pushbutton Switch | ||
| SPQ：20 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Illumination Voltage (Nominal) | 2.1 VDC |
|---|---|
| Type | Standard, Illuminated |
| Voltage Rating - DC | 28V |
| Product Training Modules | Switch Basics 3D CAD Models |
| Mounting Type | Panel Mount, Snap-In |
| Actuator Type | Square, Button |
| Voltage Rating - AC | 28V |
| PCN Design/Specification | UB, UB2 Epoxy Seal Material 18/Jun/2010 |
| Color - Actuator/Cap | Green |
| Series | UB |
| Panel Cutout Dimensions | Square - 16.20mm虏 |
| Operating Temperature | -25掳C ~ 50掳C |
| Current Rating | 0.4VA (AC/DC) |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Illumination Type, Color | LED, Green |
| Electrical Life | 200,000 Cycles |
| Circuit | SPDT |
| Standard Package | 1 |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Mechanical Life | 1,000,000 Cycles |
| Family | Pushbutton Switches |
| RoHS Information | Series, Cert of Compliance |
| 3D Model | UB15KKG015F-FF |
| ECCN | EAR99 |
