| TVX2E4R7MAD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

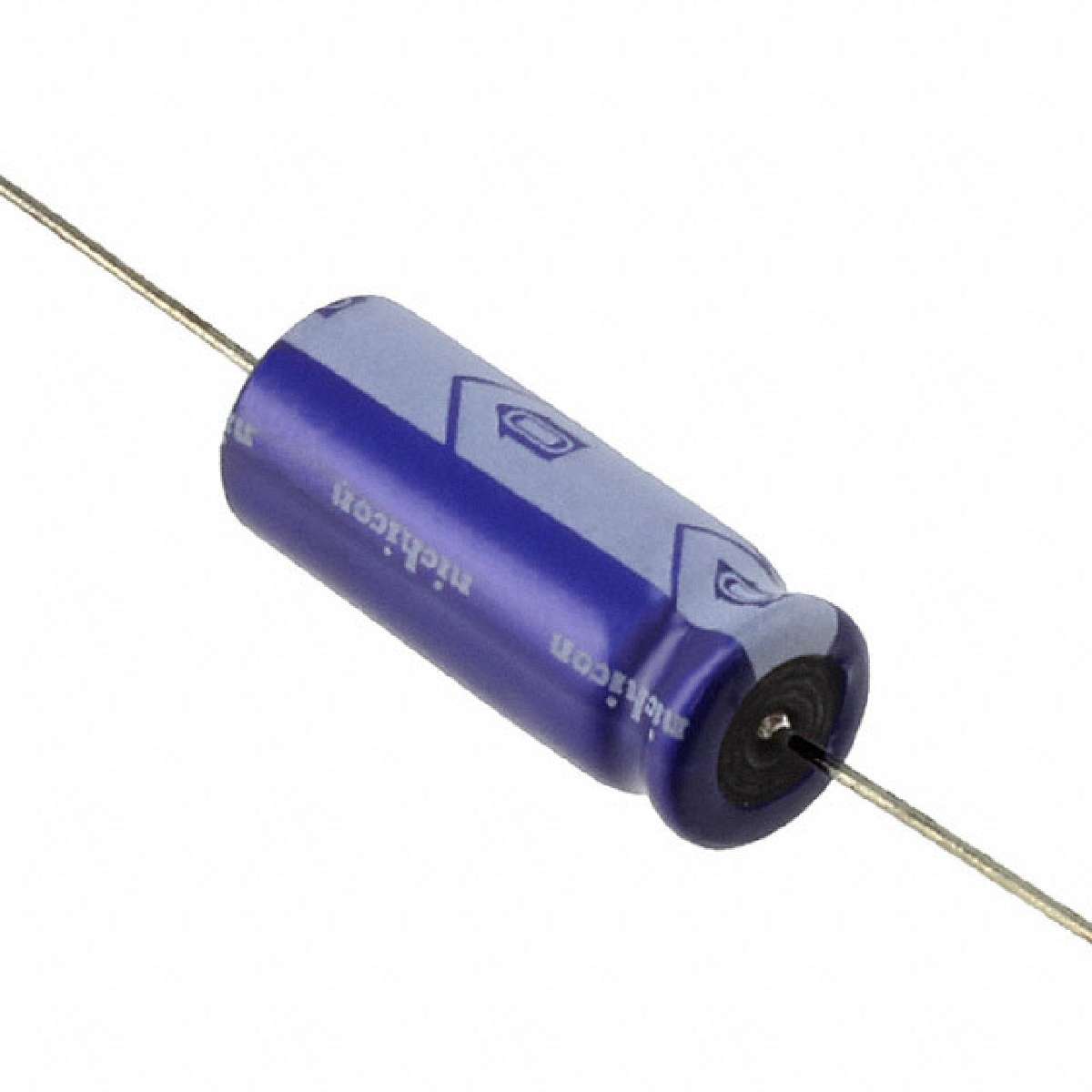

VX Series 4.7 uF 250 V 85°C Ø8 x 20 mm Axial Aluminum Electrolytic Cap
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 250V |
|---|---|
| Package / Case | Axial, Can |
| Standard Package | 200 |
| Packaging | Bulk |
| Series | VX |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Capacitance | 4.7µF |
| Size / Dimension | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) |
| Ripple Current | 45mA |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
