1422-3
1422-3
  • ACTIVE
  • EAR99

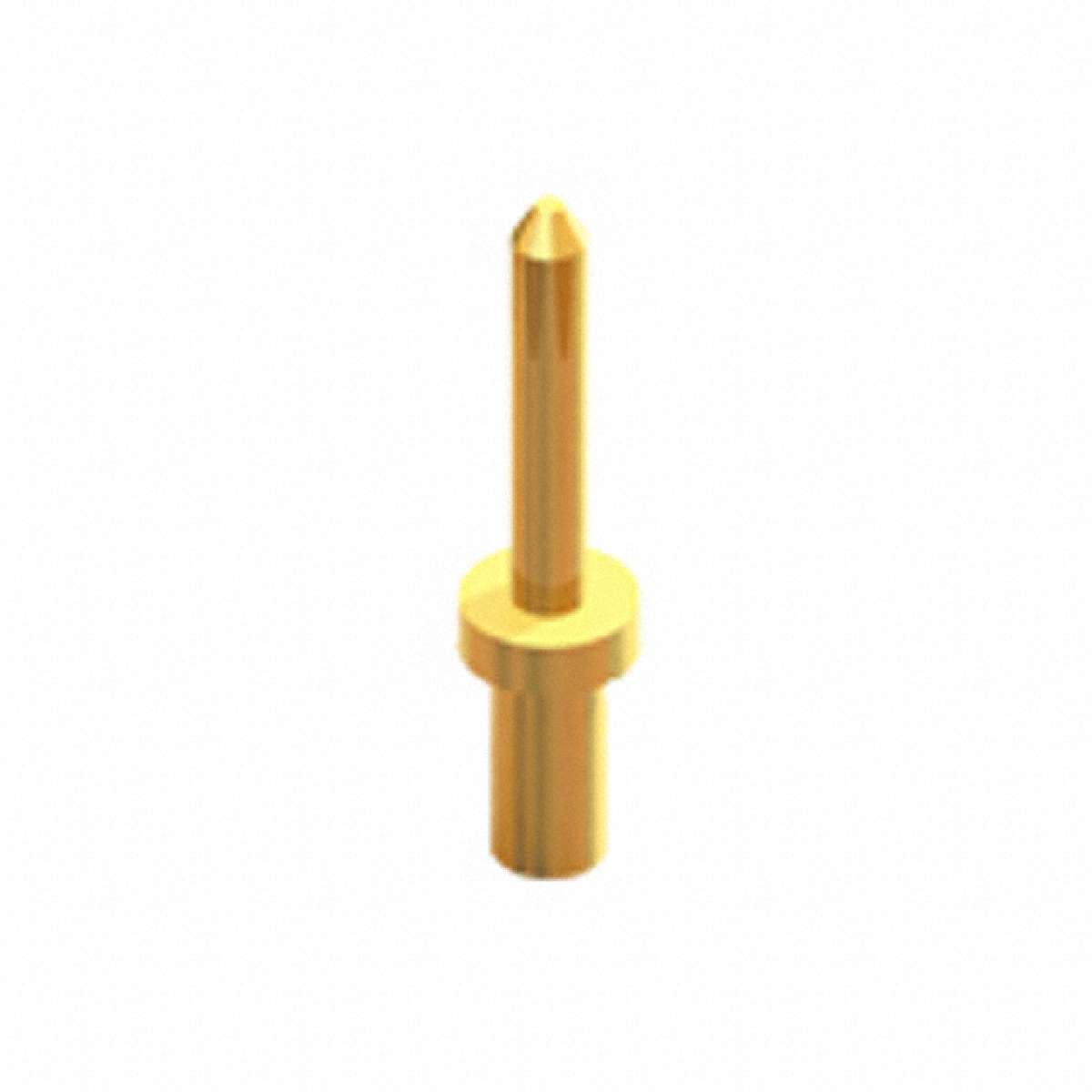

Product description : PC Pin Terminal Connector Through Hole Tin 0.040 (1.02mm) Dia
SPQ:1
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Termination Swage
Contact Finish Tin
Length Below Flange 0.125" (3.18mm)
Pin Size - Above Flange 0.040" (1.02mm) Dia
Flange Diameter 0.093" (2.36mm)
Manufacturer Keystone Electronics
Contact Material Brass
Length - Overall 0.395" (10.03mm)
Mounting Type Through Hole
Contact Finish Thickness 200µin (5.08µm)
Packaging Bulk
Mounting Hole Diameter 0.062" (1.57mm)
Board Thickness 0.093" (2.36mm)
Terminal Type PC Pin
Pin Size - Below Flange 0.058" (1.47mm) Dia
Part Status Active
Category Connectors, Interconnects
Insulation Non-Insulated
Family Terminals - PC Pin, Single Post Connectors
Terminal Style Single End
Length Above Flange 0.240" (6.10mm)
ECCN EAR99
Datasheet:
