| TL3301BF260QG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

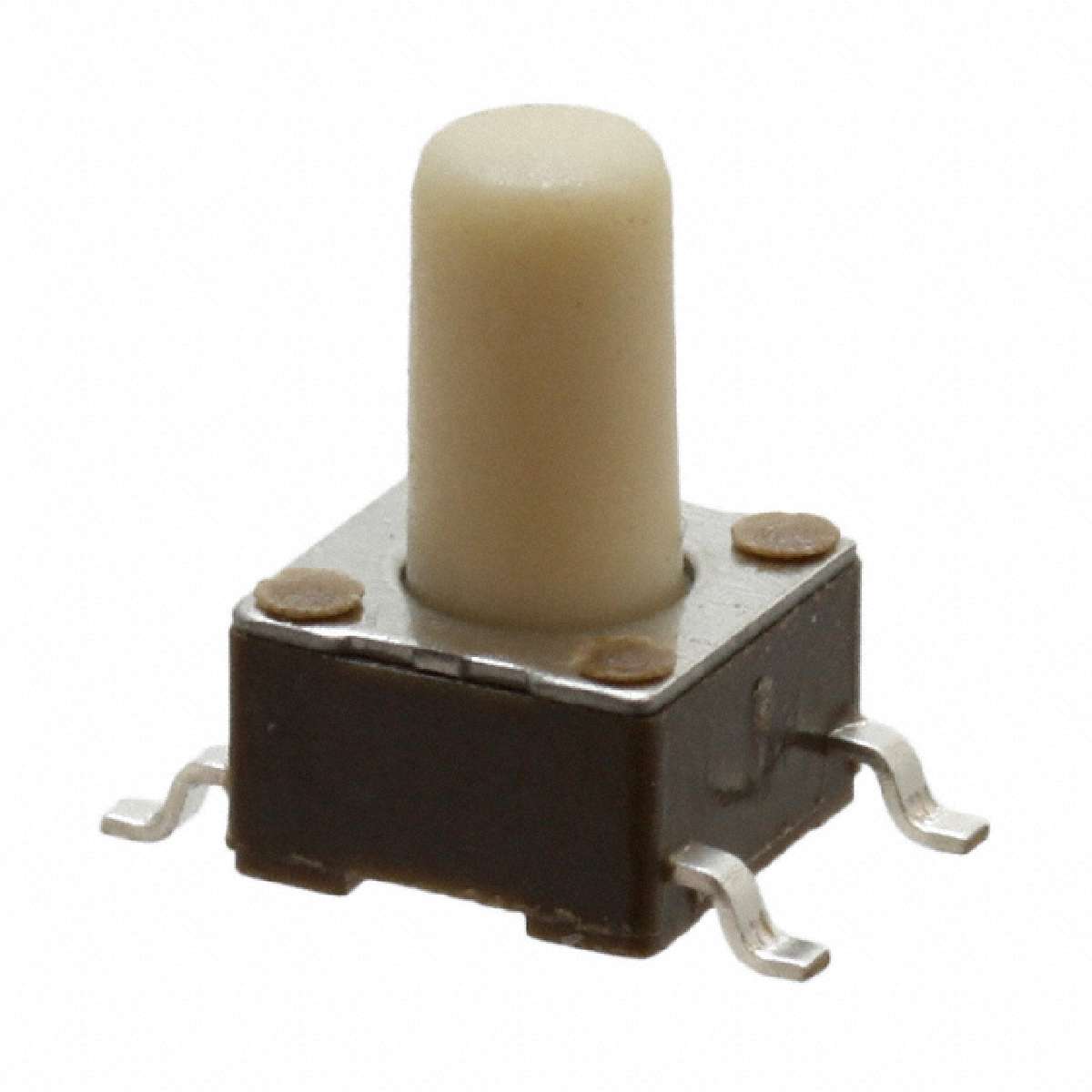

TL3301 Series SPST 2.6 N Round Button Gull Wing Surface Mount Tactile Switch
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | Off-Mom |
|---|---|
| Actuator Height off PCB, from Pins | 9.50mm |
| Operating Force | 260gf |
| Actuator Material | Polyamide (PA), Nylon |
| Actuator Type | Standard |
| Standard Package | 90 |
| Illumination | Non-Illuminated |
| Mechanical Life | 100,000 Cycles |
| Family | Tactile Switches |
| RoHS Information | TL3301 Series RoHS Cert of Compliance |
| 3D Model | TL3301BFyyyyG.stp |
| Actuator Orientation | Top Actuated |
| Termination Style | Gull Wing |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Packaging | Tube |
| Switch Travel | 0.25mm |
| Series | TL3301 |
| Outline | 6.00mm x 6.00mm |
| Operating Temperature | -20°C ~ 70°C |
| ECCN | EAR99 |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 3000 | Update On 2025-08-19 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 500/500 | |
| Location | -- | |
| DateCode | 2512 |
