| TL1105VF160R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

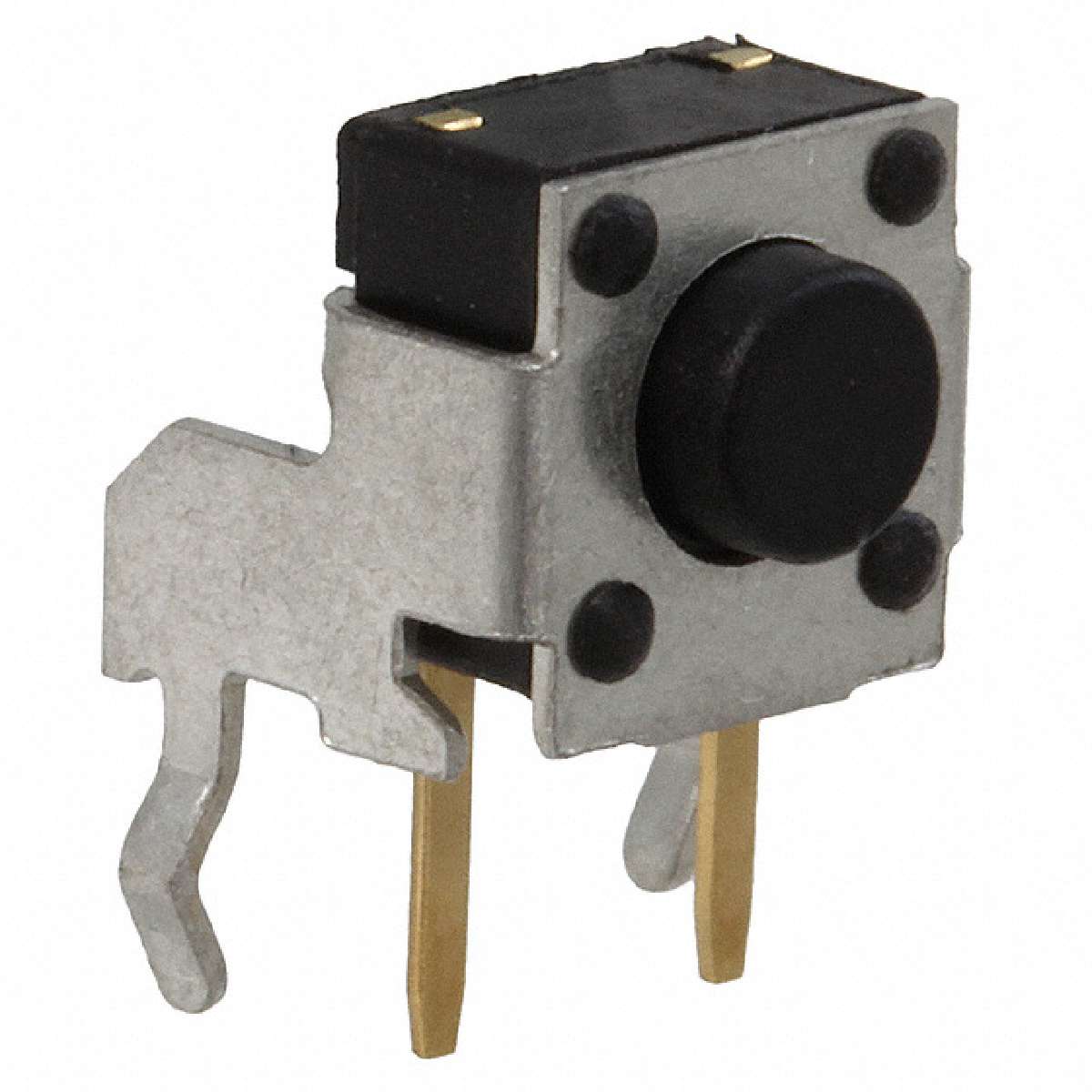

TL1105 Series SPST-NO 1.6 N Off-Mom Right Angle Through Hole Tactile Switch
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | Off-Mom |
|---|---|
| Actuator Height off PCB, from Pins | 3.85mm |
| Operating Force | 160gf |
| Actuator Material | Polyamide (PA), Nylon |
| Actuator Type | Standard |
| Standard Package | 1,000 |
| Illumination | Non-Illuminated |
| Mechanical Life | 100,000 Cycles |
| Family | Tactile Switches |
| RoHS Information | TL1105 Series RoHS Cert of Compliance |
| 3D Model | TL1105VFyyyQ.stp |
| Actuator Orientation | Side Actuated |
| Termination Style | PC Pin |
| Mounting Type | Through Hole, Right Angle |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05A @ 50VDC |
| Packaging | Bulk |
| Switch Travel | 0.25mm |
| Series | TL1105 |
| Outline | 7.10mm x 7.00mm |
| Operating Temperature | -20°C ~ 70°C |
| 数据手册： |
|---|
