| TL1015BF160QG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

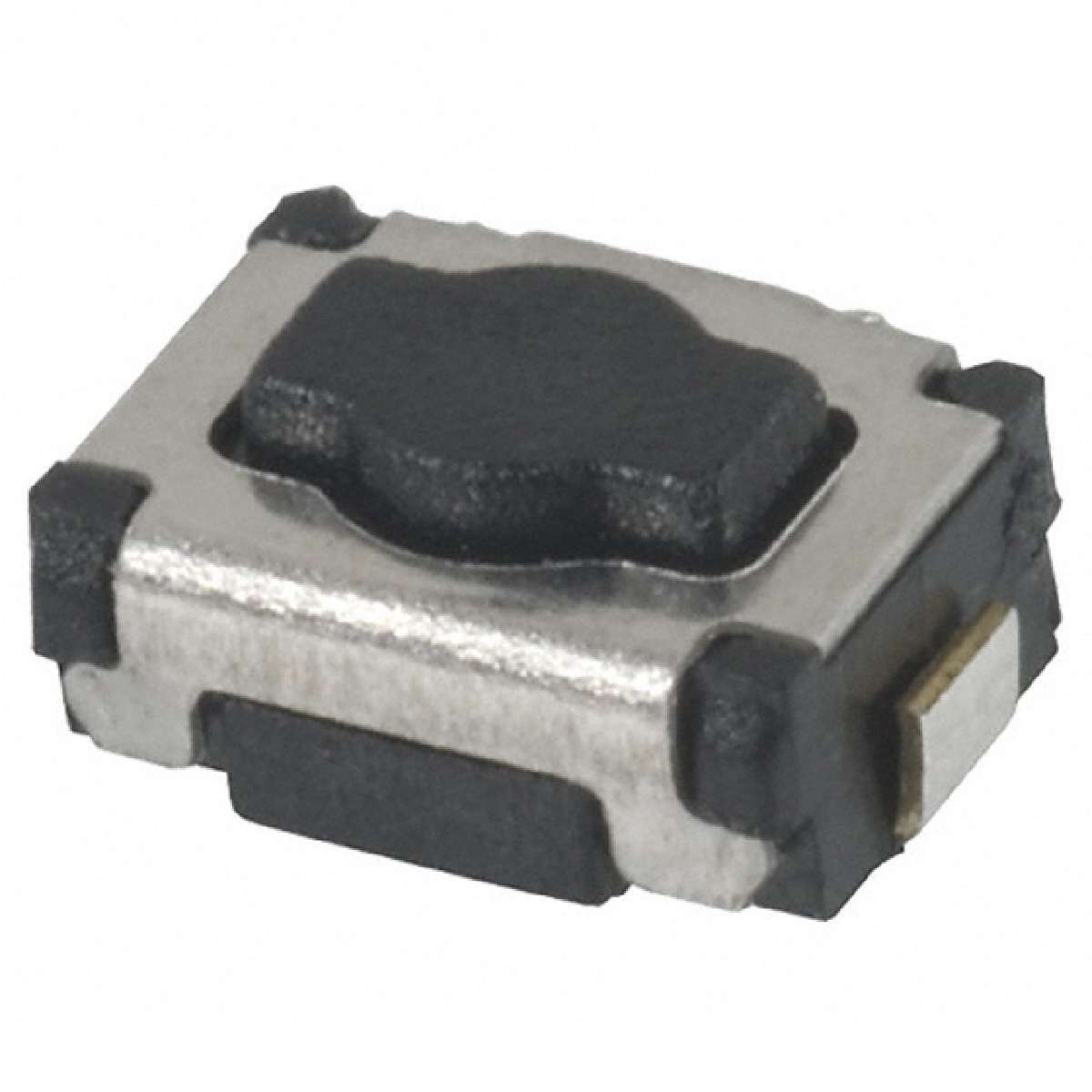

TL1015 Series SPST 1.6 N Rectangular Button SMT Top Actuated Tactile Switch
|
||
| 标准包装：2500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | Off-Mom |
|---|---|
| Actuator Height off PCB, from Pins | 2.00mm |
| Product Training Modules | Switch Basics |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Standard Package | 1 |
| Packaging | Cut Tape (CT) |
| Switch Travel | 0.20mm |
| Mechanical Life | 200,000 Cycles |
| Outline | 3.90mm x 2.90mm |
| Operating Temperature | -20°C ~ 70°C |
| ECCN | EAR99 |
| Actuator Orientation | Top Actuated |
| Termination Style | Gull Wing |
| Operating Force | 160gf |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Type | Standard |
| Catalog Drawings | TL1015_QG Footprint TL1015_QG |
| Features | Board Guide |
| Illumination | Non-Illuminated |
| Series | TL1015 |
| Family | Tactile Switches |
| RoHS Information | TL1015 Series RoHS Cert of Compliance |
| 3D Model | TL1015BF160QG.stp |
