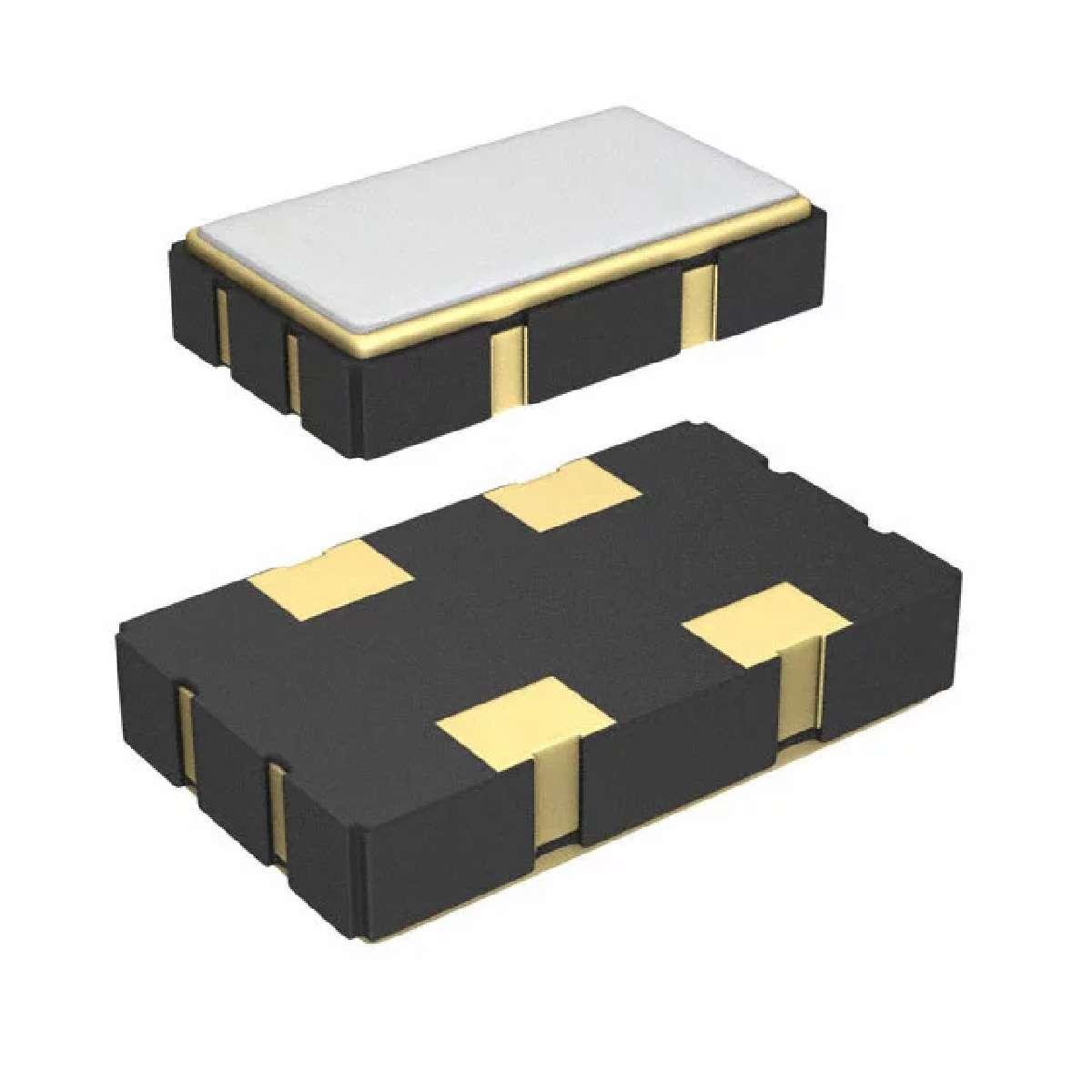

| SG5032CAN 24.000000M-TJGA3 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
SG5032CAN 24.000000MHZ TJGA ±50PPM -40~+85℃ CMOS
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Frequency Stability | ±50ppm |
|---|---|
| Package / Case | 4-SMD, No Lead (DFN, LCC) |
| Function | Standby (Power Down) |
| Output | CMOS |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Category | Crystals, Oscillators, Resonators |
| Series | SG5032 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Digi-Reel® |
| Voltage - Supply | 1.6 V ~ 3.6 V |
| Type | XO (Standard) |
| Height | 0.051" (1.30mm) |
| Current - Supply (Max) | 3mA |
| Part Status | Active |
| Manufacturer | EPSON |
| Family | Oscillators |
| Frequency | 24MHz |
| Current - Supply (Disable) (Max) | 2.7µA |
