| SG-210STF 33.3333ML3 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

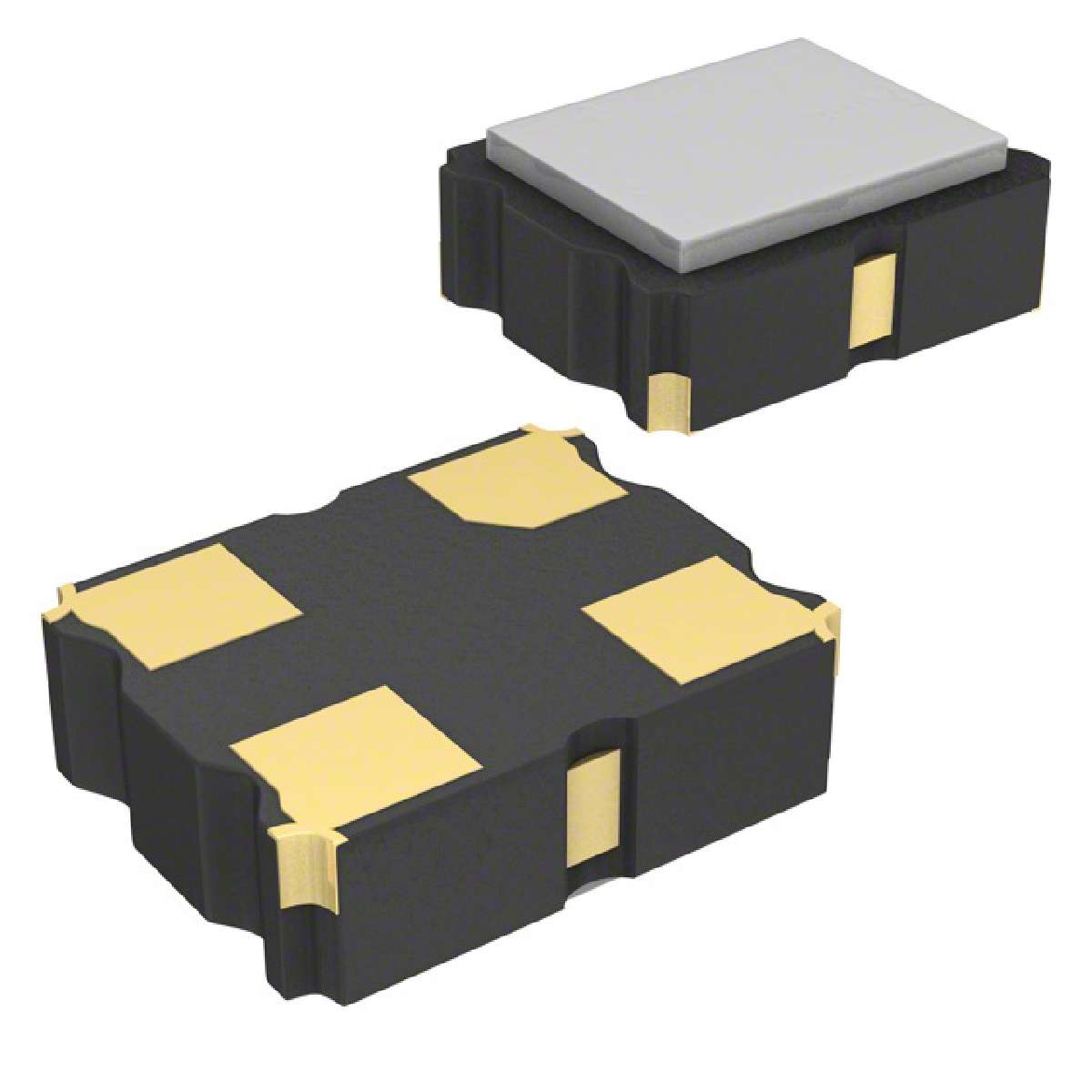

SG-210STF 33.3333ML3:SMD XTAL OSC MHZ 1.6~3.6V+/-50PPM -40~85C 250 T&R
|
||
| 标准包装：250 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Frequency Stability | ±50ppm |
|---|---|
| Package / Case | 4-SMD, No Lead (DFN, LCC) |
| Type | XO (Standard) |
| Height | 0.035" (0.90mm) |
| Standard Package | 250 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Series | SG-210STF |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Voltage - Supply | 1.6 V ~ 3.6 V |
| PCN Assembly/Origin | SG-210STF Package Supplier 09/Jun/2014 |
| Function | Standby (Power Down) |
| Output | CMOS |
| Current - Supply (Max) | 2.2mA |
| Packaging | Tape & Reel (TR) |
| Family | Oscillators |
| Frequency | 33.3333MHz |
| Current - Supply (Disable) (Max) | 2.7µA |
