| SBM1040-13-F | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

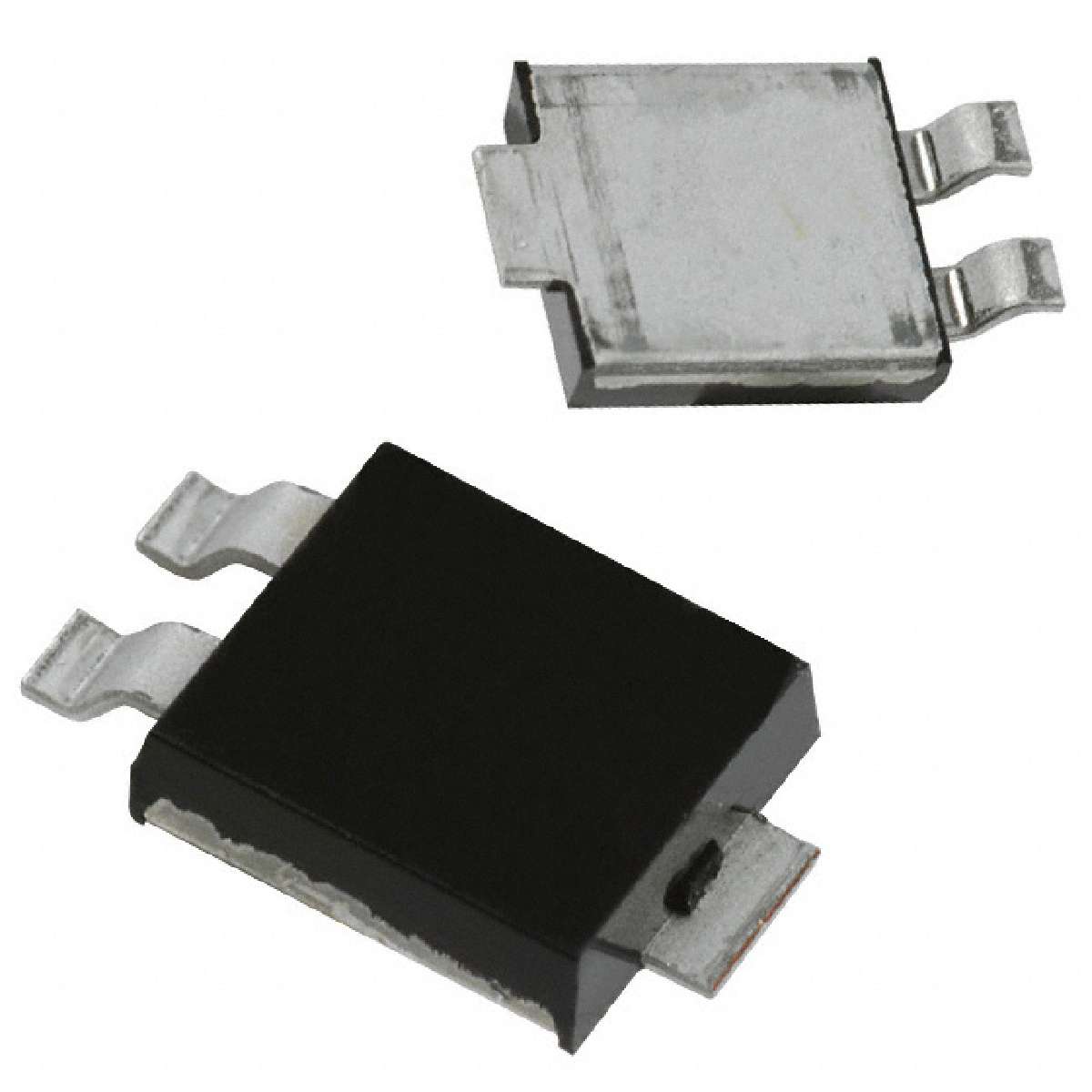

SBM1040 Series 40 V 10 A SMT Schottky Barrier Rectifier - POWERMITE-3
|
||
| 标准包装：5000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -65°C ~ 150°C |
|---|---|
| Package / Case | Powermite®3 |
| PCN Obsolescence/ EOL | Discrete Family 24/Jul/2013 |
| Catalog Drawings | SBM(3,5), MBRM(3,5) Series Circuit |
| Packaging | Tape & Reel (TR) |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Family | Diodes, Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Voltage - Forward (Vf) (Max) @ If | 510mV @ 10A |
| Current - Average Rectified (Io) | 10A |
| Capacitance @ Vr, F | 700pF @ 4V, 1MHz |
| Supplier Device Package | Powermite 3 |
| Standard Package | 5,000 |
| Diode Type | Schottky |
| Current - Reverse Leakage @ Vr | 300µA @ 35V |
| Mounting Type | Surface Mount |
| RoHS Information | RoHS Cert of Compliance |
| ECCN | EAR99 |
