S4924-185K
S4924-185K
  • ACTIVE
  • Nonstandard
  • EAR99

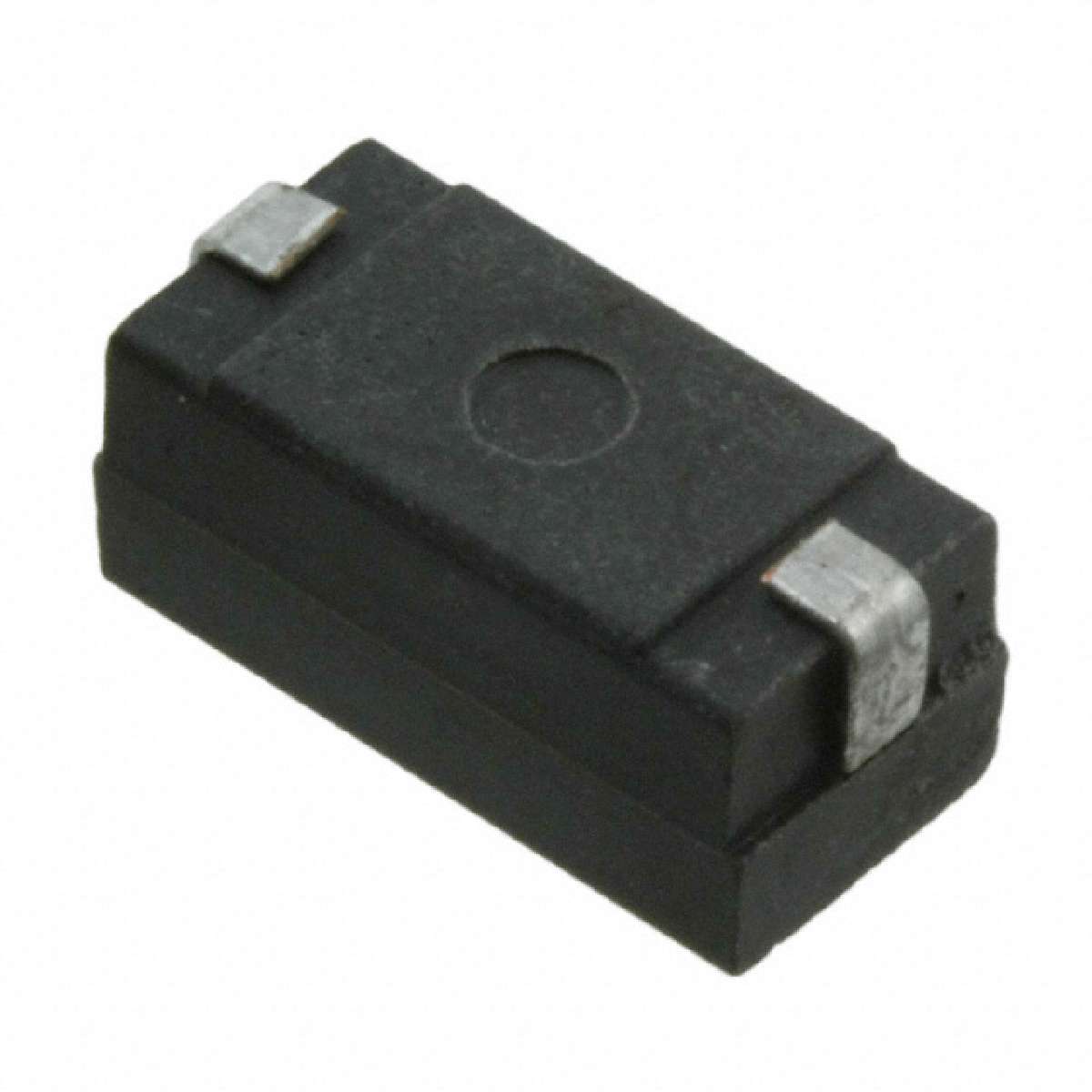

Product description : FIXED IND 1.8MH 110MA 29.9 OHM
SPQ：800
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Tolerance ±10%
Package / Case Nonstandard
Standard Package   800
Current - Saturation 24mA
Packaging   Tape & Reel (TR)
Material - Core Ferrite
Family Fixed Inductors
Shielding Shielded
DC Resistance (DCR) 29.9 Ohm Max
Frequency - Test 250kHz
Inductance 1.8mH
Frequency - Self Resonant 2.6MHz
Q @ Freq 50 @ 250kHz
Size / Dimension 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) 0.220" (5.58mm)
Series S4924
Mounting Type Surface Mount
Operating Temperature -55°C ~ 125°C
Current Rating 110mA
ECCN EAR99
Datasheet：
