| 180-015-102L001 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

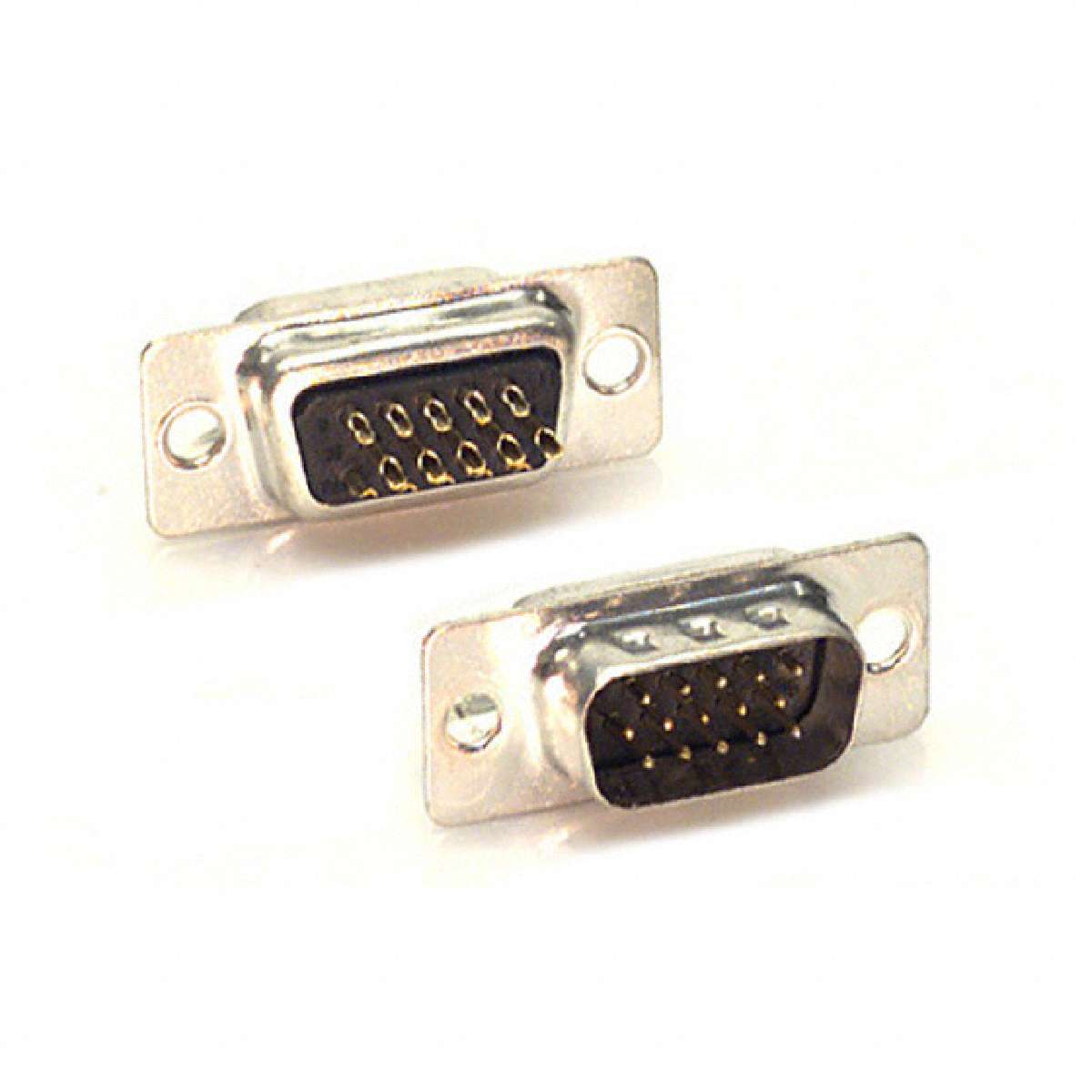

180 Series 15 Position Male Vertical Dip Solder High Density D-Sub Connector
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder Cup |
|---|---|
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Category | Connectors, Interconnects |
| Series | 180 |
| Family | D-Sub Connectors |
| Operating Temperature | -50°C ~ 100°C |
| Contact Finish Thickness | Flash |
| Number of Rows | 3 |
| ECCN | EAR99 |
| Connector Style | D-Sub, High Density |
| Contact Finish | Gold |
| Contact Type | Signal |
| Part Status | Active |
| Manufacturer | Norcomp Inc. |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Packaging | Tray |
| Current Rating | 5A |
