| 180-M15-213R001 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

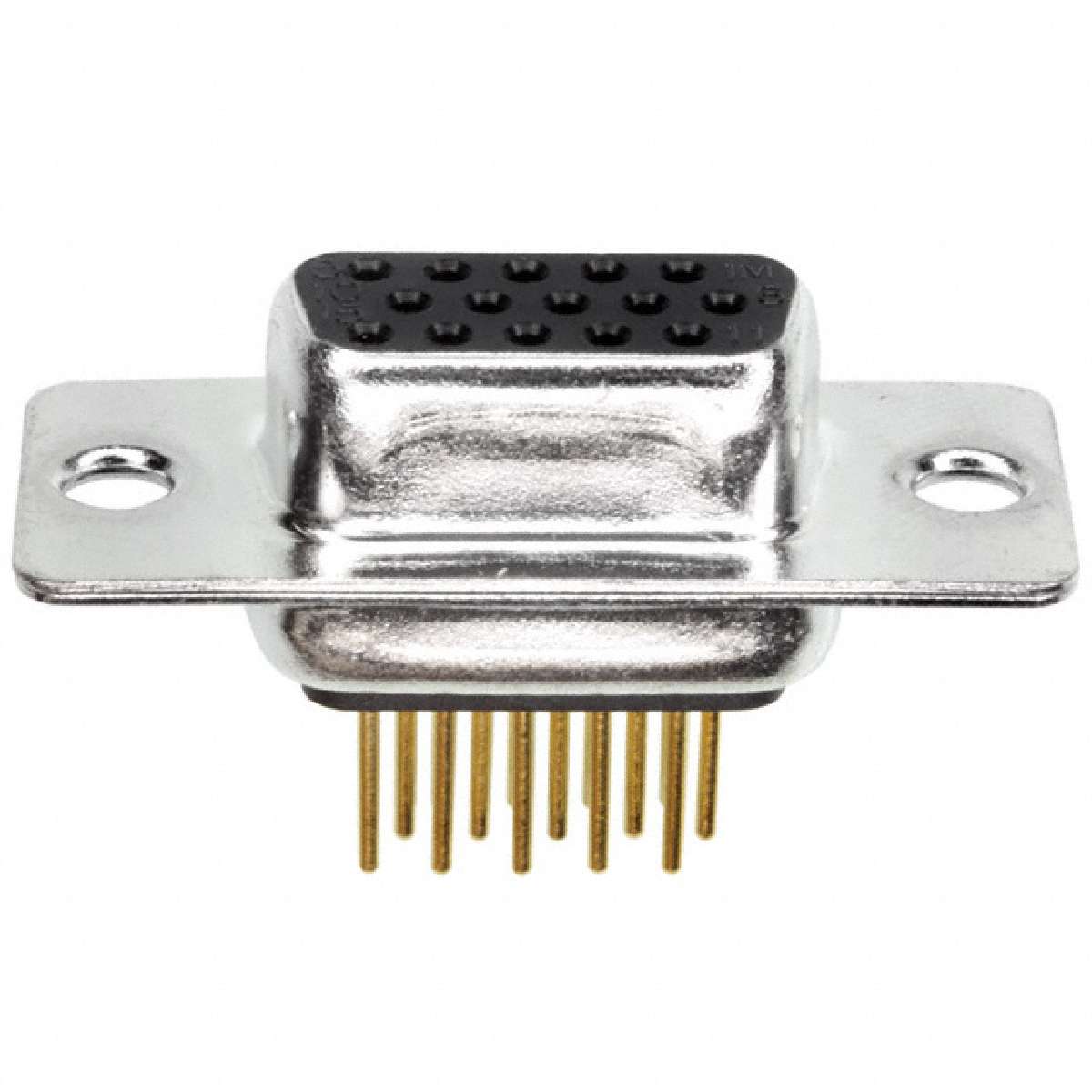

15 Position D-Sub, High Density Receptacle, Female Sockets Connector, Through
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder |
|---|---|
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Color | Black |
| Part Status | Active |
| Manufacturer | Norcomp Inc. |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 15 |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Packaging | Tray |
| Current Rating | 5A |
| Connector Style | D-Sub, High Density |
| Contact Finish | Gold |
| Contact Type | Signal |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Category | Connectors, Interconnects |
| Series | 180-M, M Series |
| Family | D-Sub Connectors |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish Thickness | Flash |
| Number of Rows | 3 |
| ECCN | EAR99 |
