| RP60-4815SG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

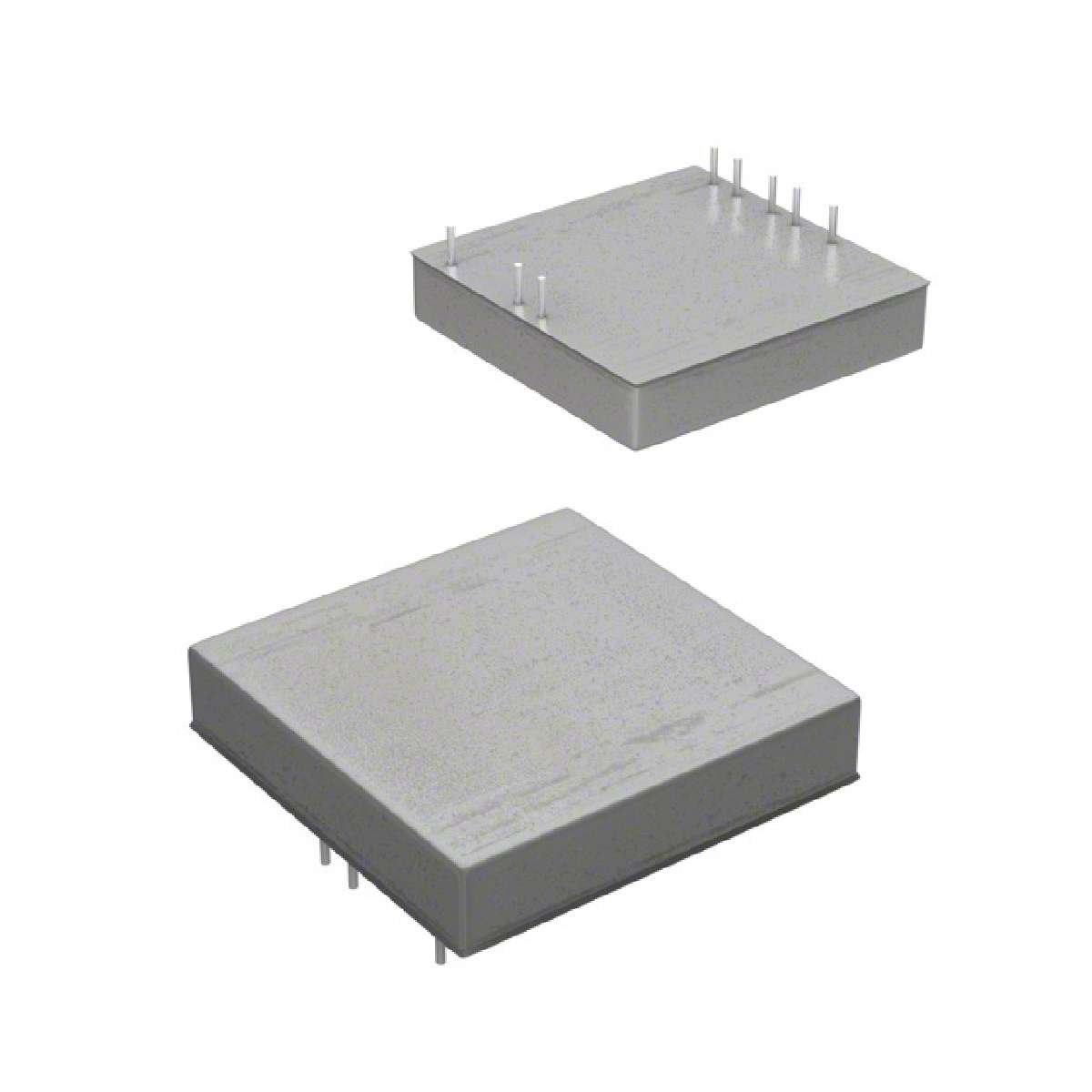

CONV DC/DC 60W 36-75VIN 15VOUT
|
||
| 标准包装：4 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 1.6kV (1600V) |
|---|---|
| Type | Isolated Module |
| Power (Watts) - Manufacture Series | 60W |
| Efficiency | 90% |
| Power (Watts) - Max | 60W |
| Standard Package | 4 |
| Packaging | Tube |
| Voltage - Output 1 | 15V |
| Family | DC DC Converters |
| Operating Temperature | -40°C ~ 40°C |
| Number of Outputs | 1 |
| Current - Output (Max) | 4A |
| Size / Dimension | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Voltage - Input (Max) | 75V |
| Series | POWERLINE RP60-G |
| Voltage - Input (Min) | 36V |
