| BAT54JFILM | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

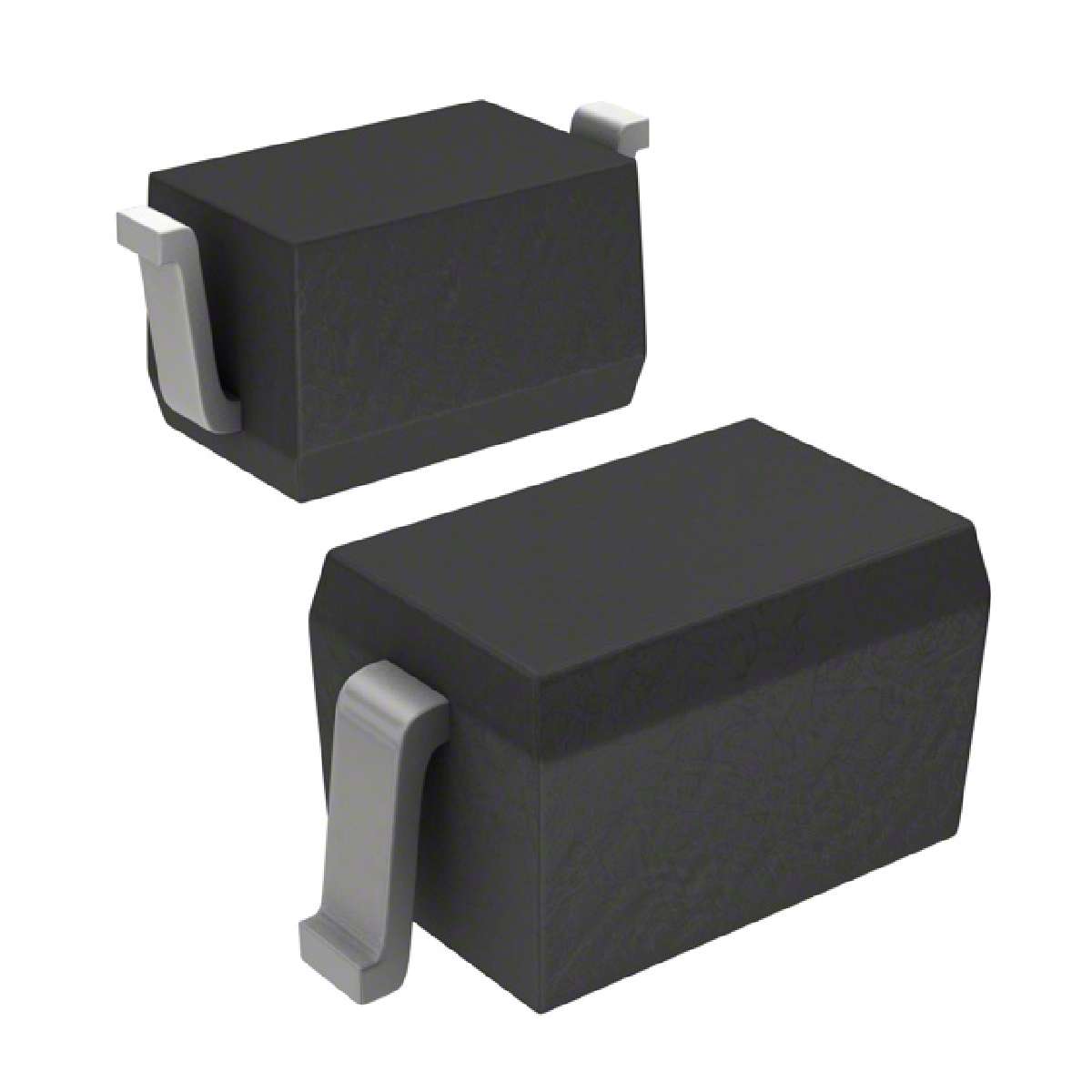

BAT54 Series 300 mA 900 mV Schottky Diode Surface Mount - SOD-323
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -40°C ~ 150°C |
|---|---|
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Diode Type | Schottky |
| Reverse Recovery Time (trr) | 5ns |
| Online Catalog | Schottky Diode |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 100mA |
| RoHS | Lead free / RoHS Compliant |
| Current - Average Rectified (Io) | 300mA (DC) |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Other Related Documents | BAT54 View All Specifications |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1µA @ 30V |
| Family | Diodes, Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Packaging | Tape & Reel (TR) |
