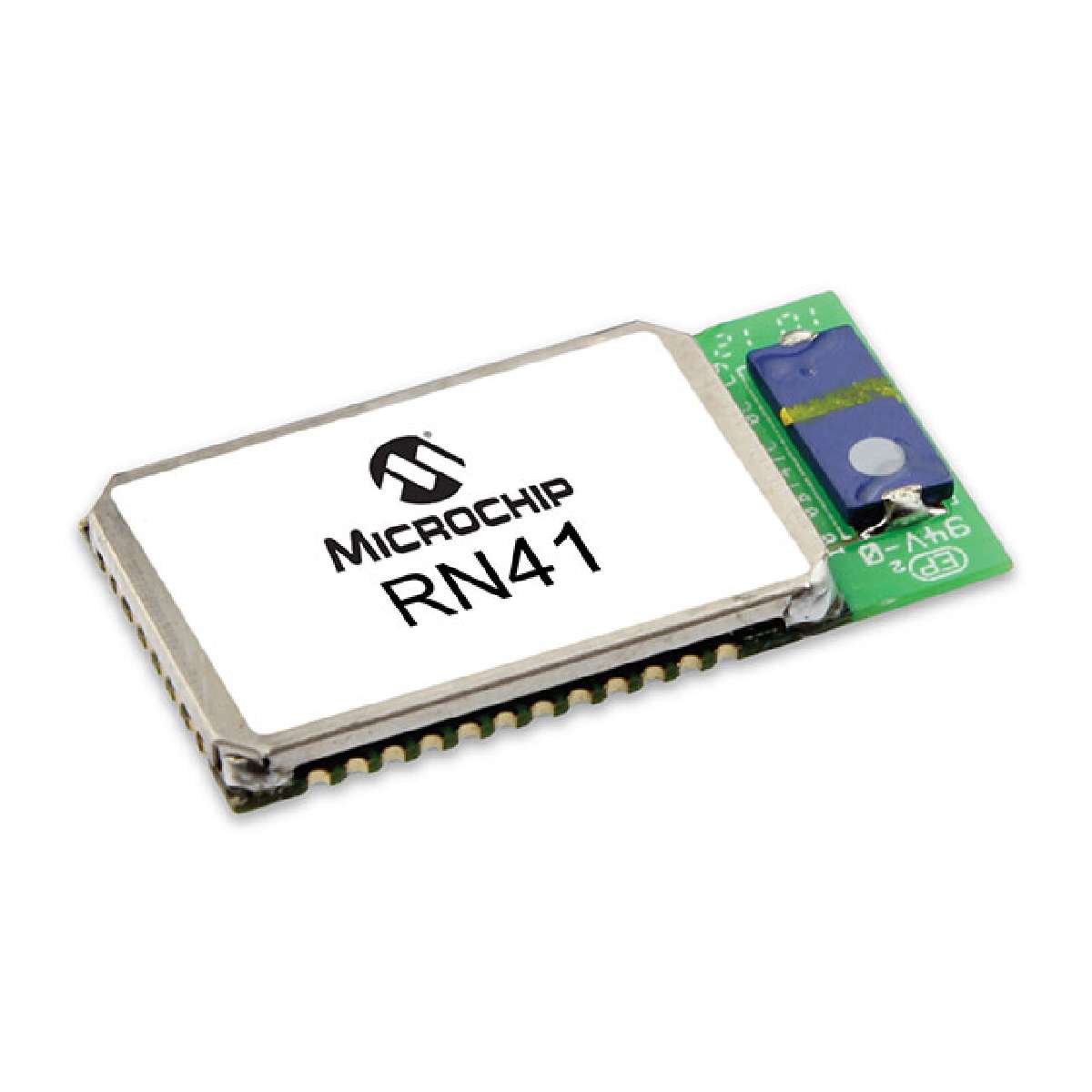

| RN41HCI-I/RM | ||
|---|---|---|
|
|
||
|
||
| Product description : 2.4 Ghz 3 Mbps Bluetooth 2.1 Class 1 SMT Module w/HCI H4 over UART | ||
| SPQ：64 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Sensitivity | -80dBm |
|---|---|
| Package / Case | TRAY |
| Power - Output | 16dBm |
| Current - Transmitting | 65mA |
| Packaging | Bulk |
| Data Rate (Max) | 3Mbps |
| Frequency | 2.4GHz |
| Data Interface | Pads for Pins |
| SDP | 35-MODULE 13.4x25.8x2mm |
| Voltage - Supply | 3 V ~ 3.6 V |
| Modulation or Protocol | Bluetooth v2.1+EDR, Class 1 |
| Antenna Connector | On-Board, Chip |
| PCN Design/Specification | RN-41 Device Top Marking 22/Oct/2013 |
| Current - Receiving | 35mA |
| Family | RF Transceivers |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | 5A992.c |
