RN-3.33.3S | ||
---|---|---|
|
||
|
||
产品描述:

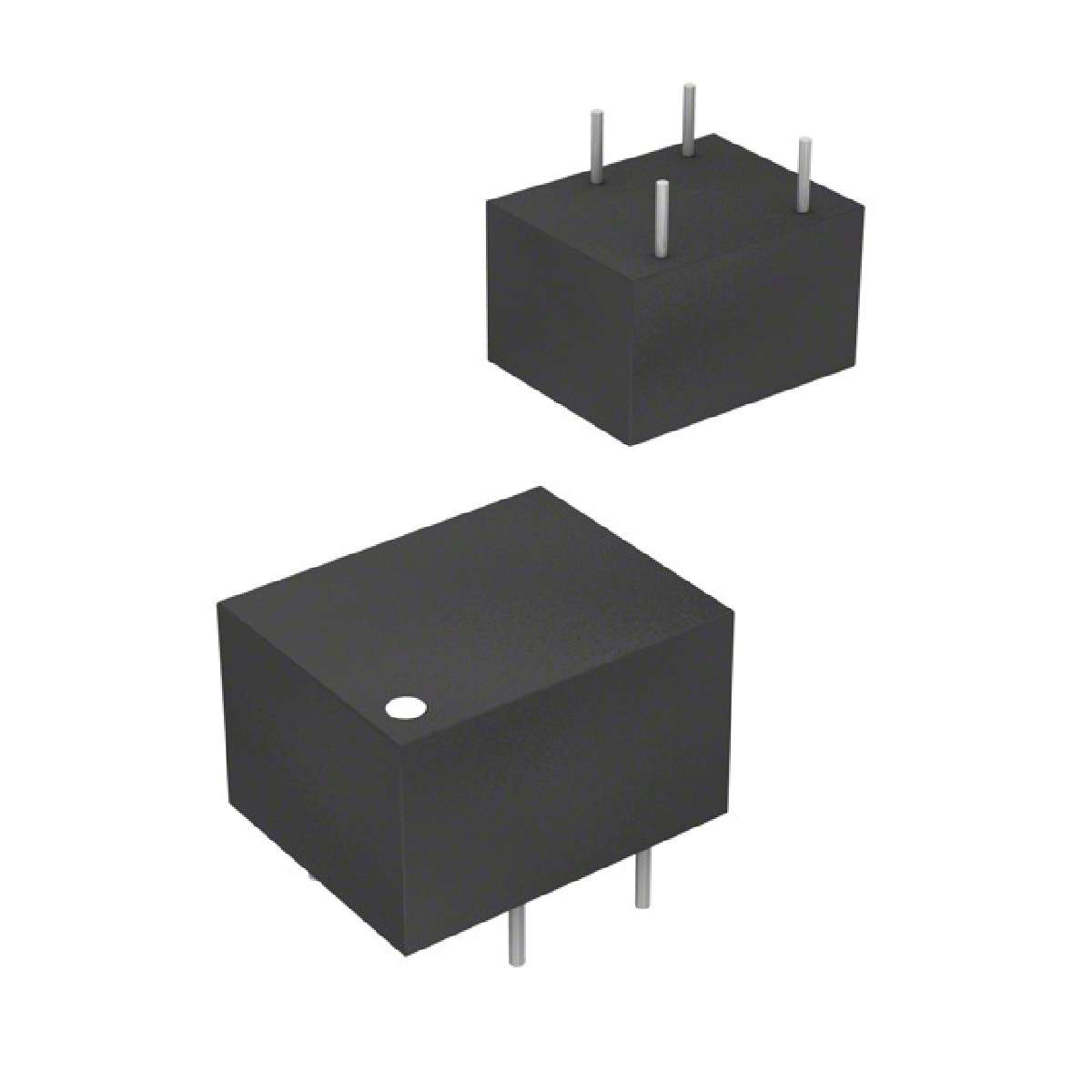

RN Series 1.25 W Single Output 3.3 V Isolated DC/DC-Converter Module - DIP-8
|
||
标准包装:39 | ||
数据手册: -- |
Voltage - Isolation | 1kV (1000V) |
---|---|
Package / Case | 8-DIP Module (4 Leads) |
Current - Output (Max) | 378mA |
Features | SCP |
Part Status | Active |
Efficiency | 70% |
Voltage - Input (Max) | 3.6V |
Series | ECONOLINE RN |
Voltage - Input (Min) | 3V |
Mounting Type | Through Hole |
Power (Watts) - Max | 1.25W |
ECCN | EAR99 |
Number of Outputs | 1 |
Type | Isolated Module |
Power (Watts) - Manufacture Series | 1.25W |
Size / Dimension | 0.50" L x 0.40" W x 0.30" H (12.8mm x 10.1mm x 7.6mm) |
Category | Power Supplies - Board Mount |
Manufacturer | Recom Power |
Voltage - Output 1 | 3.3V |
Family | DC DC Converters |
Applications | ITE (Commercial) |
Operating Temperature | -40°C ~ 85°C |
Packaging | Tube |
