| 206-10RAST | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

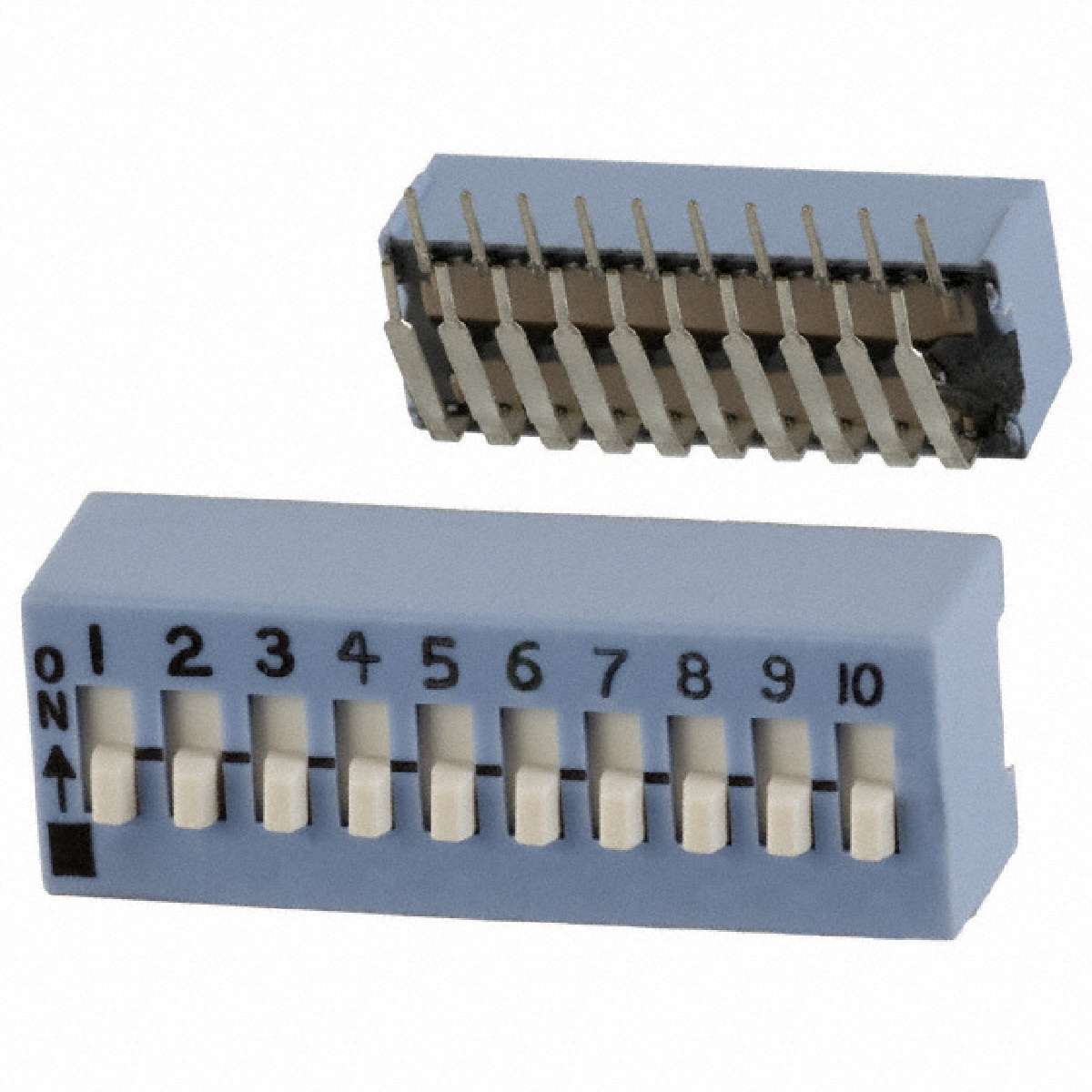

206RA Series SPST 10 Position Right Angle Raised Slide Actuator Dip Switch
|
||
| 标准包装：20 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination Style | PC Pin |
|---|---|
| Voltage Rating | 24VDC |
| Electrical Life | 10,000 Cycles |
| Washable | Yes |
| Packaging | Tube |
| Circuit | SPST |
| Features | Epoxy Sealed Terminals, Tape Seal |
| Category | Switches |
| Length | 1.086" (27.58mm) |
| Series | 206RA |
| Operating Temperature | -55°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Plastic |
| Manufacturer | CTS Electrocomponents |
| Mounting Type | Through Hole, Right Angle |
| Height Above Board | 0.400" (10.16mm) |
| Actuator Type | Slide (Standard) |
| Part Status | Active |
| Actuator Level | Raised |
| Number of Positions | 10 |
| Family | DIP Switches |
| Current Rating | 50mA |
| ECCN | EAR99 |
