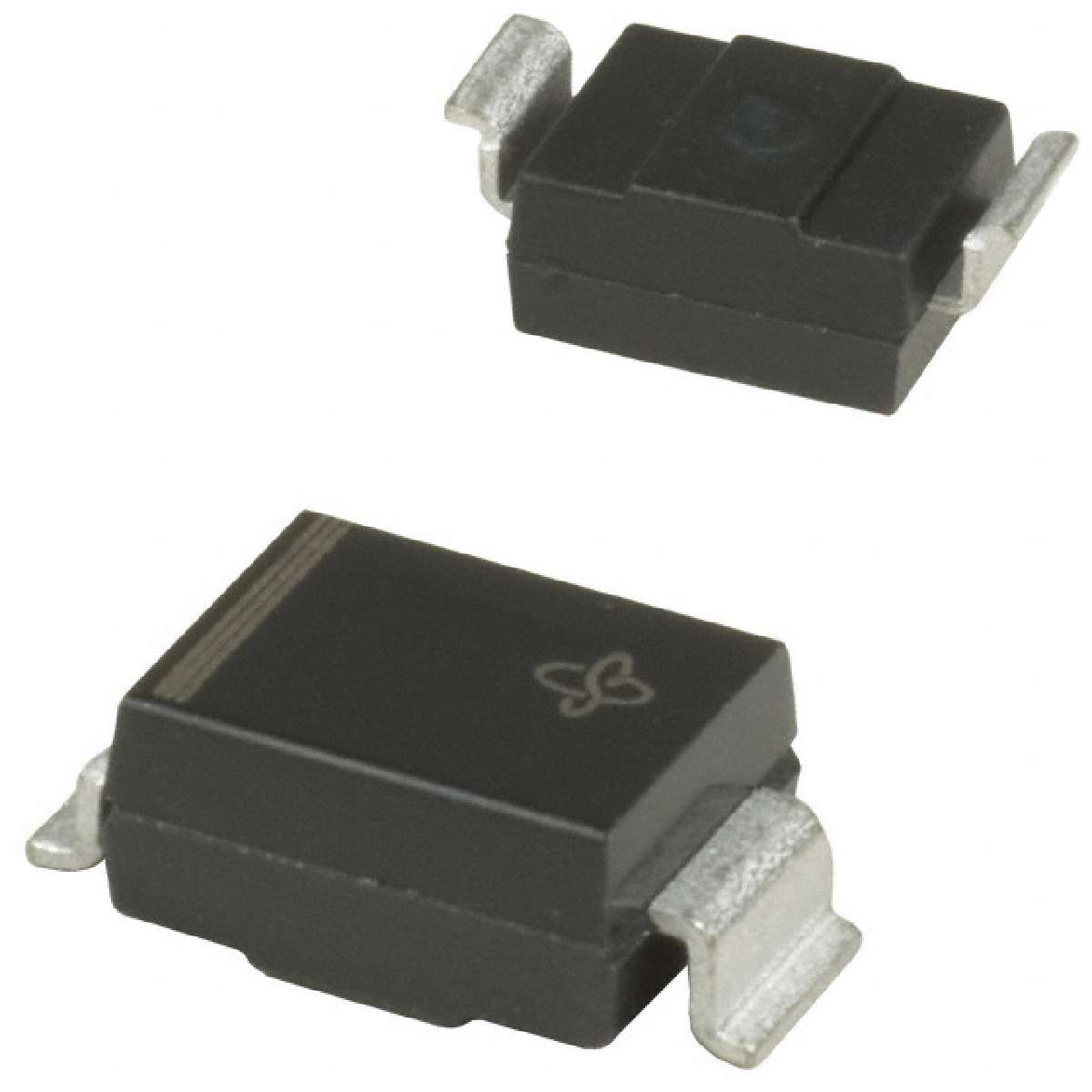

| SMBG12CA-E3/52 | ||
|---|---|---|
|
|
||
|
||
| Product description : 600 W 12 V Bi Directional Surface Mount Transient Voltage Suppressor Diode | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Power - Peak Pulse | 600W |
|---|---|
| Type | Zener |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 30.2A |
| Voltage - Breakdown (Min) | 13.3V |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | DO-215AA (SMBG) |
| Voltage - Clamping (Max) @ Ipp | 19.9V |
| Online Catalog | TransZorb® Series |
| Series | TransZorb® |
| Family | TVS - Diodes |
| Applications | General Purpose |
| Voltage - Reverse Standoff (Typ) | 12V |
| RoHS | Lead free / RoHS Compliant |
