| PV4F230SS-3K1-M01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

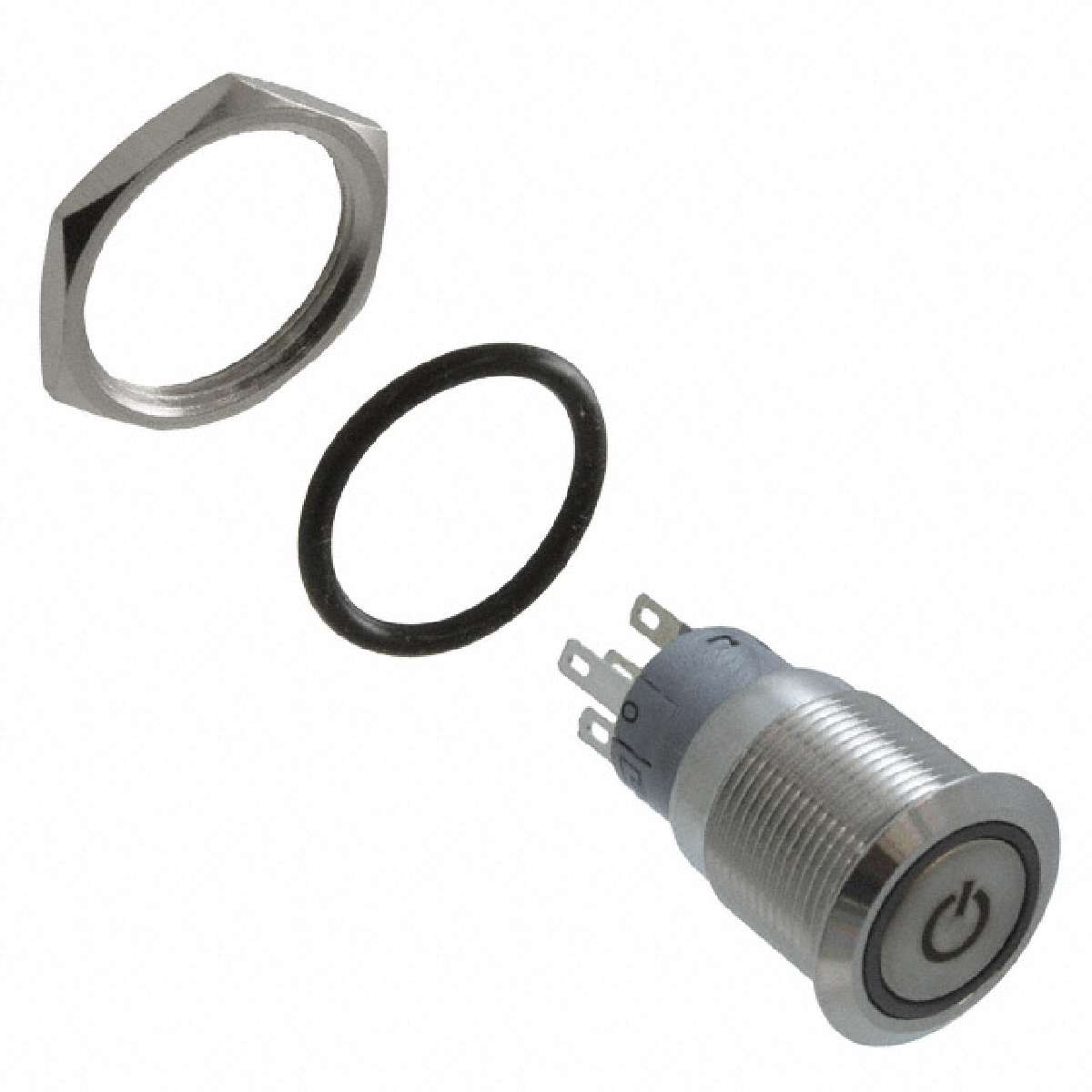

PV4 Series SPDT Orange/Green Ring Flush Button IP65 Pushbutton Switch
|
||
| 标准包装：40 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Illumination Voltage (Nominal) | 1.8, 2.8 VDC |
|---|---|
| Type | Vandal Resistant, Illuminated |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Illumination Type, Color | LED, Orange/Green |
| Mounting Type | Panel Mount, Front |
| Actuator Type | Round, Button, Flush |
| Features | Power Symbol |
| Color - Actuator/Cap | Silver |
| Mechanical Life | 1,000,000 Cycles |
| Family | Pushbutton Switches |
| Operating Temperature | -20°C ~ 55°C |
| ECCN | EAR99 |
| Switch Function | On-On |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Voltage Rating - DC | 48V |
| Electrical Life | 50,000 Cycles |
| Circuit | SPDT |
| Standard Package | 1 |
| Packaging | Bulk |
| Online Catalog | PV4, LAMB Series |
| Series | PV4, LAMB |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Current Rating | 2A (DC) |
| 数据手册： |
|---|
