25LB10-Q

ACTIVE EAR99

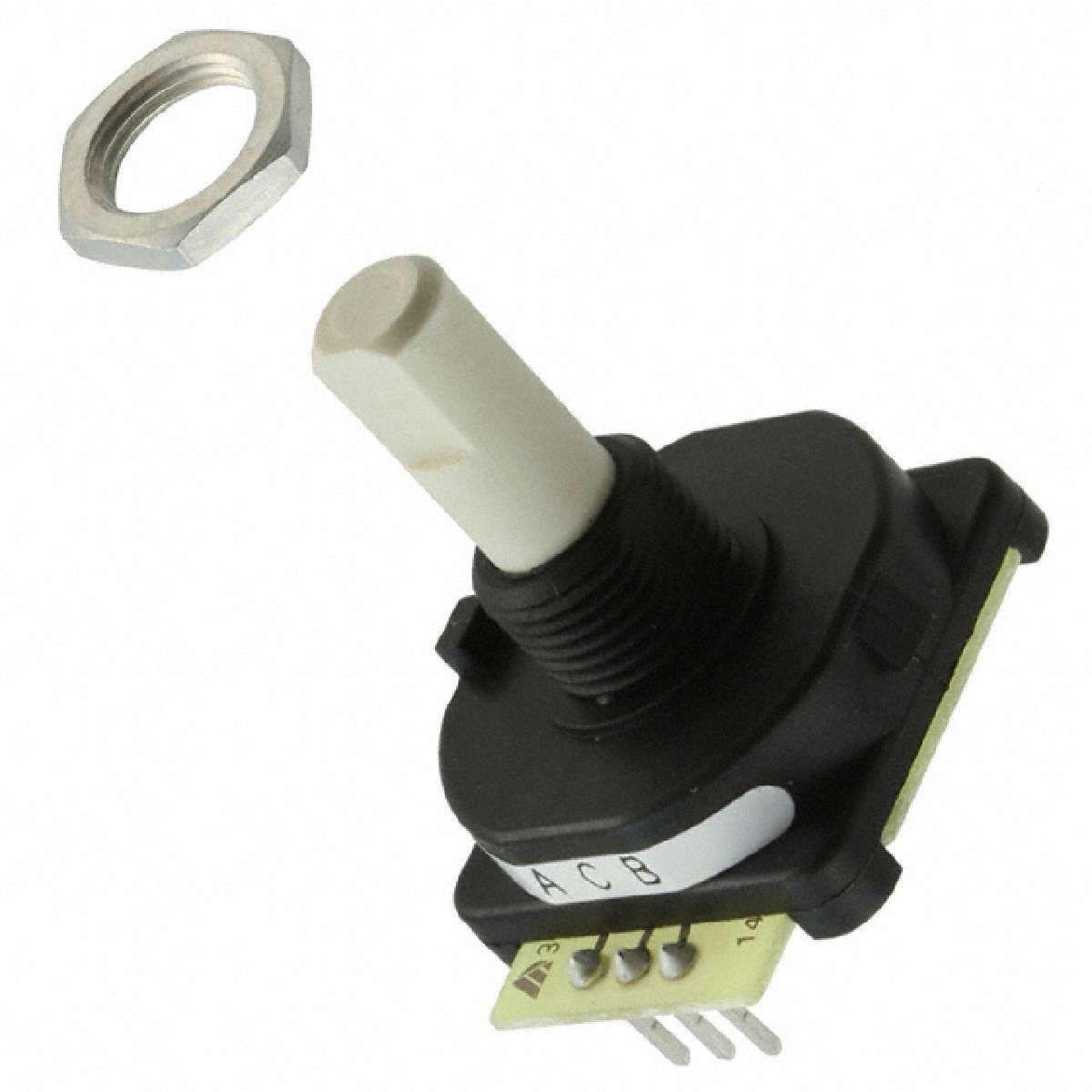

Product description : 25L Series Quadrature 36 Position 10 Degrees Through Hole Mechanical Encoder
SPQ：1
Datasheet : 25LB10-Q.pdf

Packaging:	Tray
Product:	Mechanical
Bushing Thread:	3/8-32 UNEF-2A
Number of Detents:	36 Detent
Shaft Diameter:	6.35 mm
Shaft Length:	12.7 mm
Number of Channels:	2 Channel
Output Type:	Quadrature
Series:	Series 25L
With Switch:	No Switch
Part # Aliases:	25LB10-Q,BLK
Termination Style:	Through Hole
Shaft Type:	Flatted
ECCN	EAR99
Bushing Material:	Reinforced Thermoplastic
Size / Dimension:	25.91 mm x 23.5 mm x 27.76 mm
Operating Temperature Range:	- 40 C to + 85 C
Bushing Size:	3/8 in x 1/4 in
Technology:	Rotary
Mounting Style:	Panel Mount
Manufacturer:	Grayhill
Operating Supply Voltage:	115 VAC, 14 VDC
Factory Pack Quantity:	1
Brand:	Grayhill
RoHS:	Details
Product Category:	Encoders
Type:	Incremental

Datasheet： 25LB10-Q.pdf
