| 25USC15000MEFCSN30X25 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

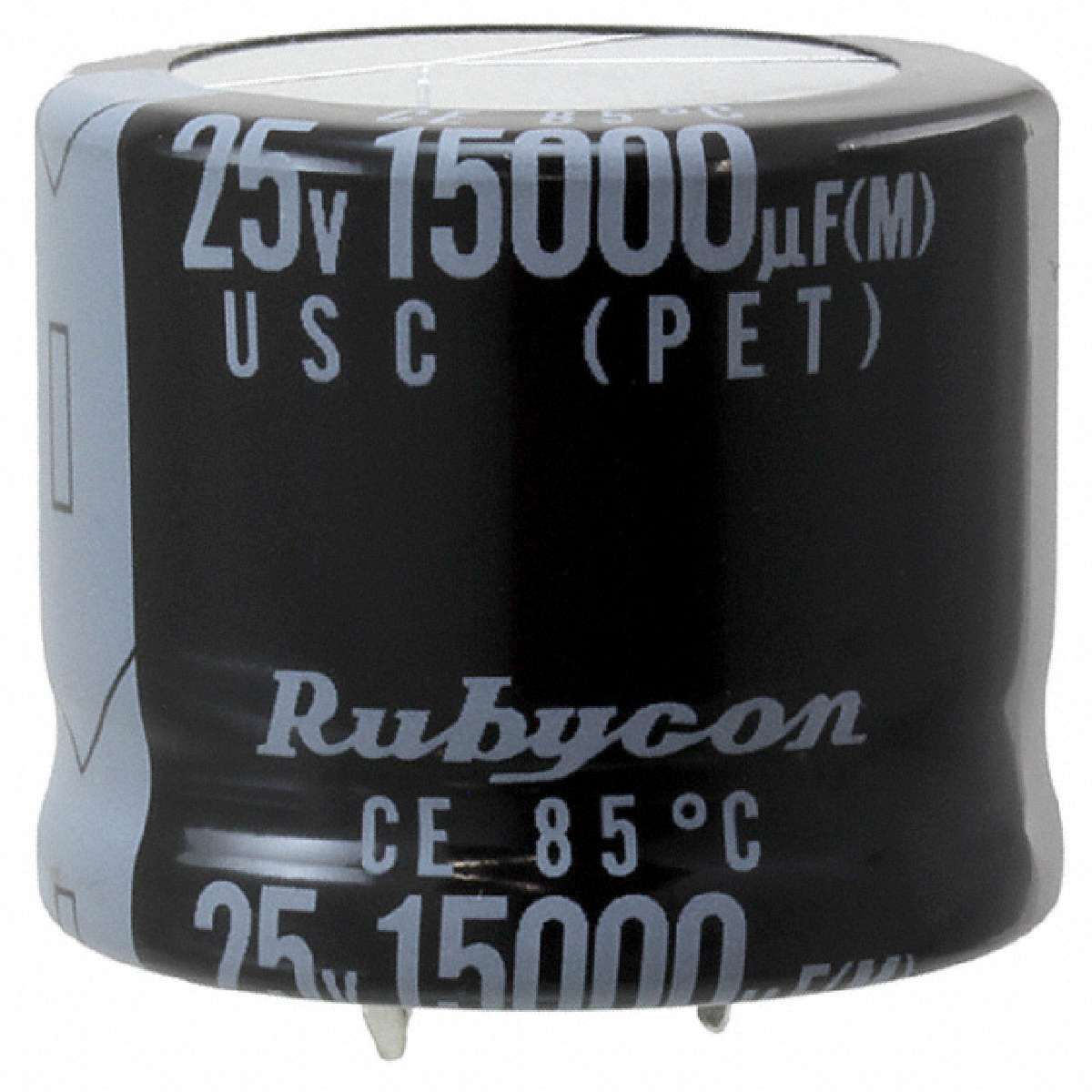

USC Series 15000 uF 25 V ± 20 % Snap-In Aluminum Electrolytic Capacitor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 25V |
|---|---|
| Package / Case | Radial, Can - Snap-In |
| Capacitance | 15000µF |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Ripple Current | 4.08A |
| Manufacturer | Rubycon |
| Series | USC |
| Applications | General Purpose |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Packaging | Bulk |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Tolerance | ±20% |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
